The UMIK-1 is an omni-directional USB measurement microphone providing Plug & Play acoustic measurement. From speaker & room acoustic measurement to recording, this microphone provides low noise and accurate results you can rely on. Forget about driver installation, OS compatibility and un-calibrated mics. The Umik-1 is a USB Audio class 1 device automatically recognized by all Operating Systems (Windows/Mac/Linux). It is provided with a unique calibration file based on the serial number to insure an accurate measurement. Combined with REW software or other acoustic measurement software, it is the perfect match for a plug&play measurement system.
Item
Description
Capsule Type & Polar pattern
6mm electret, Omni-Directional
Microphone body
Die Cast Aluminum
Frequency response
20Hz-20kHz +/-0.5dB with calibration file loaded
USB Audio
USB Audio Class 1.0 Driverless interface for Windows/Mac & linux
Resolution & Sample rate
24bit ADC @ 48kHz
Max SPL for 1% THD @ 1kHz
133dB SPL
Output noise level @ max IPGA
-74dBFS
Calibration file
Unique microphone calibration file referenced to the Serial Number Inclodes on axis Frequency/Amplitude and sensitivity drift
Power
USB Powered (5V) - Blue LED indicates
Weight
120gm for microphone, 600gm complete kit with accessories
Connector
miniUSB connector

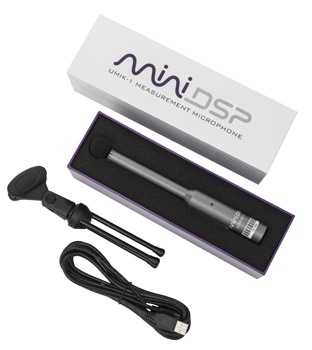

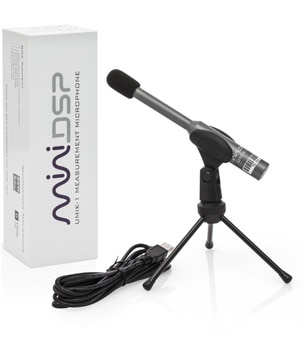

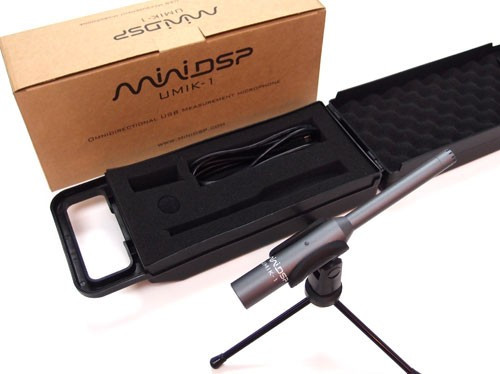

Accessories
1 x 1.5m long cable 1 x mini Tripod 1 x microphone clamp 1 x windscreen
