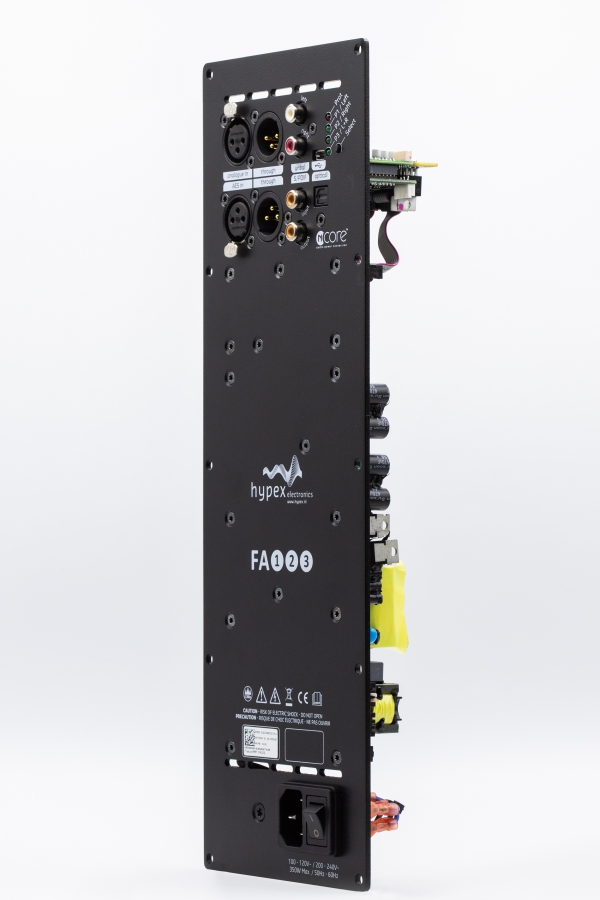

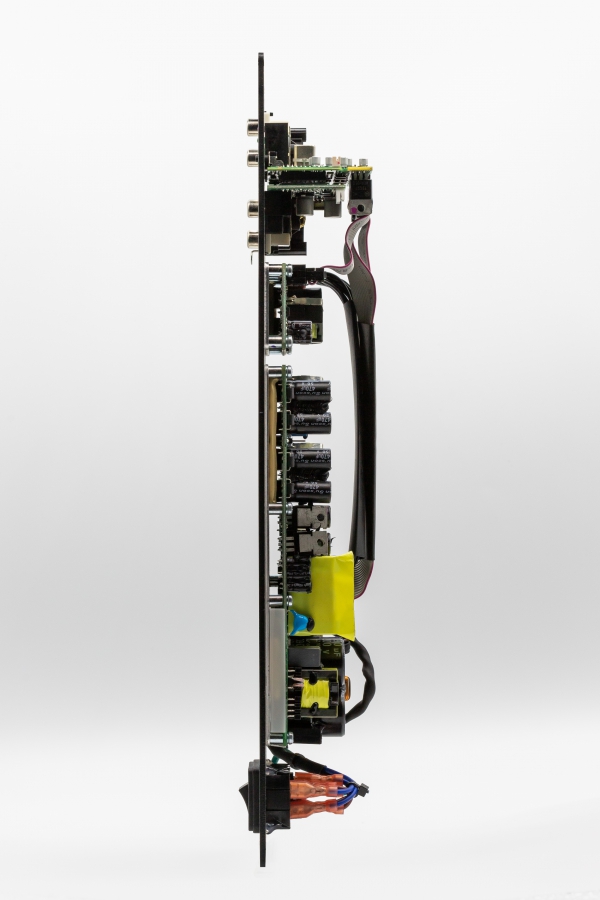

This FusionAmp can be the basis of e.g. a powerful two- or three-way monitor.

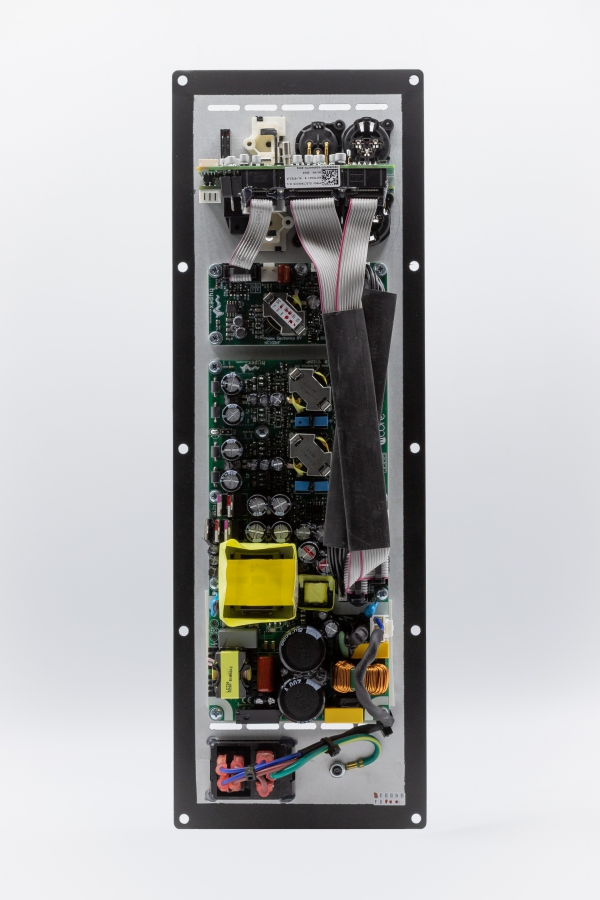

The FA123 has two 125 Wrms Ncore® amplifiers which can also be bridged to form one powerful 250 Wrms amplifier. Additionaly, a 100 Wrms Ncore® tweeter channel is added.
Dimensions: 360 * 120 x 55 mm
Weight: 955 gram

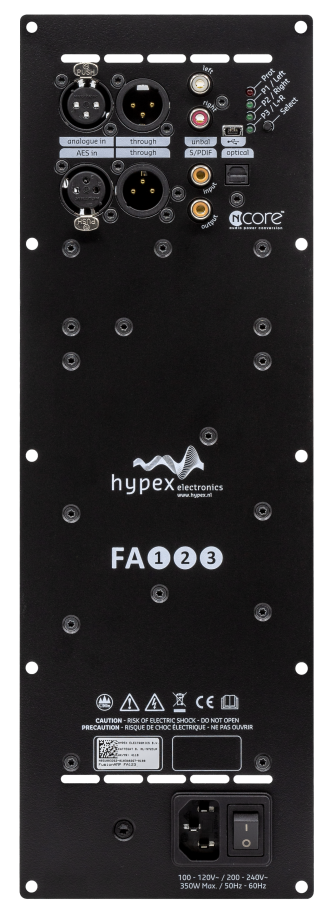

Connections
Analogue balanced XLR in and through
Analogue unbalanced RCA input
Digital AES in and through
Digital S/PDIF in and through
Digital Optical TosLink input
USB 2.0 configuration interface
Features
15 biquads per amplifier
Three selectable presets for filters
Source selection
Signal detect
Auto shutdown
BTL capable
Clip protect
Thermal protect
Filter protection

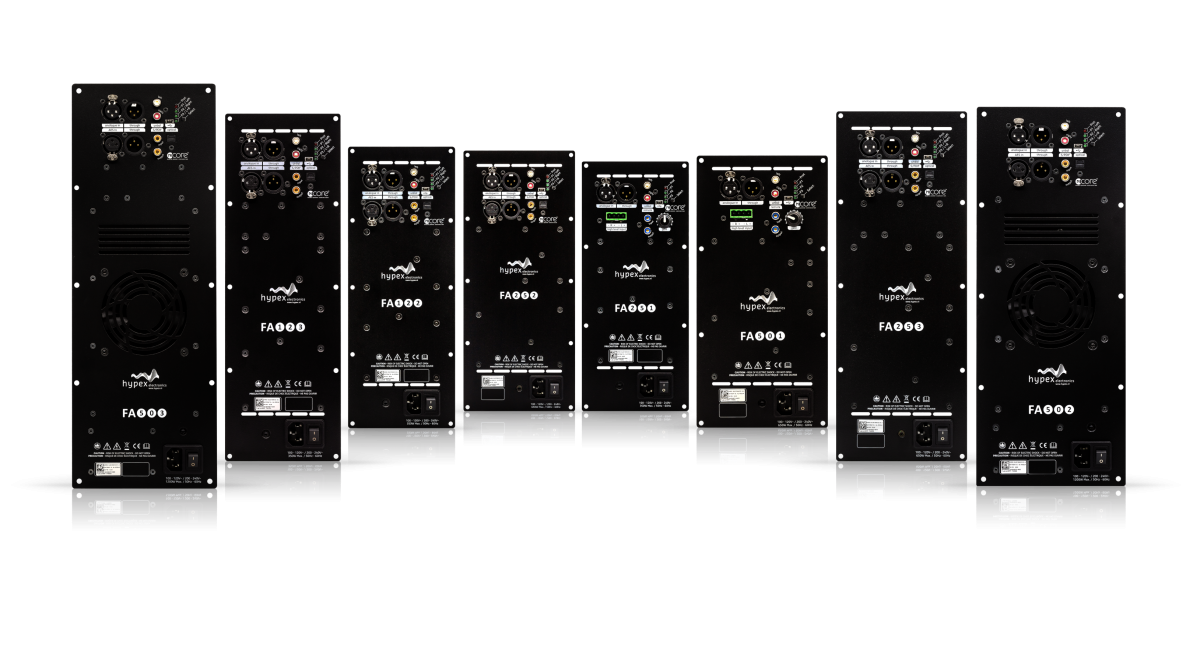

Meet the family
The Fusion Amp family consists of the following models:
