Hypex FusionAmp FA252

FusionAmp FA252

This FusionAmp can be the basis of e.g. a powerful active subwoofer or a two-way monitor.

The FA252 has two 250 Wrms Ncore® amplifiers which can also be bridged to form one powerful 500 Wrms amplifier.

Dimensions: 315 * 135 x 55 mm

Weight: 1000 gram

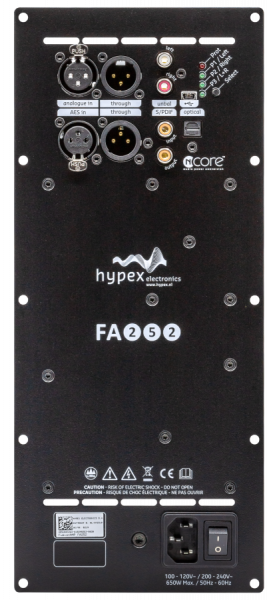

Connections

• Analogue balanced XLR in and through
• Analogue unbalanced RCA input
• Digital AES in and through
• Digital S/PDIF in and through
• Digital Optical TosLink input
• USB 2.0 configuration interface

Features

• 15 biquads per amplifier
• Three selectable presets for filters
• Source selection
• Signal detect
• Auto shutdown
• BTL capable
• Clip protect
• Thermal protect
• Filter protection

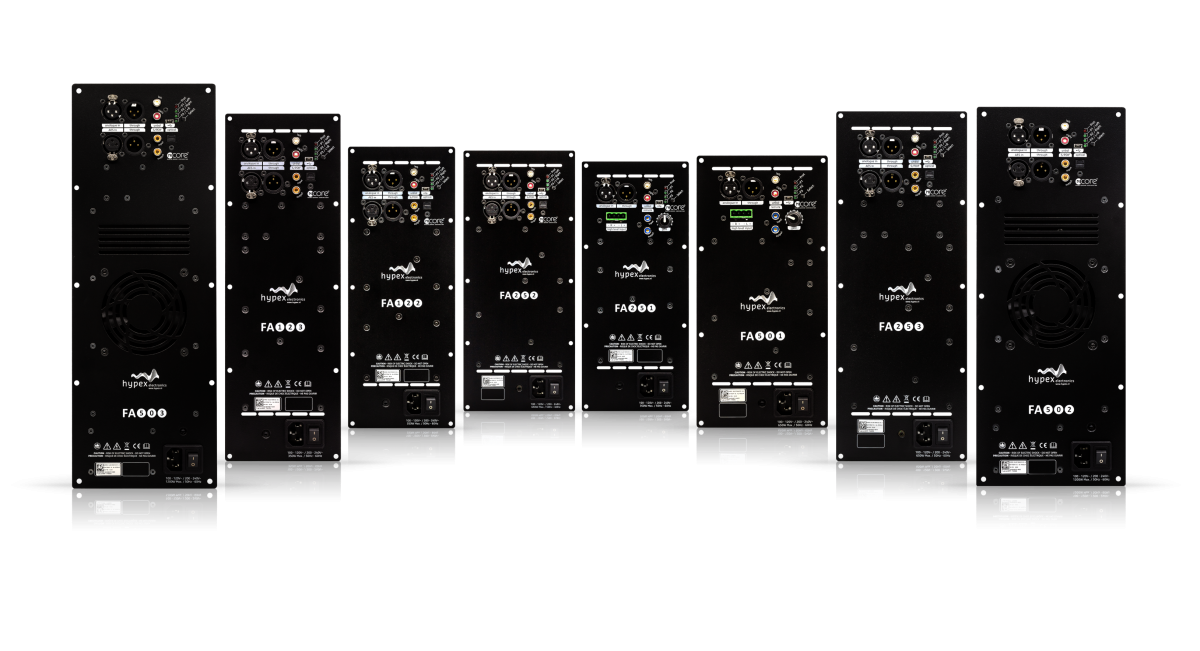

Meet the family

The Fusion Amp family consists of the following models:

FusionAmp One-Way models:
FA251, 1x250W
FA501, 1x500W

FusionAmp Two-Way models:
FA122, 2x125W
FA252, 2x250W
FA502, 2x500W

FusionAmp Three-Way models:
FA123, 2x125W + 100W Tweeter
FA253, 2x250W + 100W Tweeter
FA503, 2x500W + 100W Tweeter

What is included in the box:

• The FA252
• A printed copy of the user guide
• Speaker connection cables
