- Order number: SW10703
FusionAmp FA502 This FusionAmp can be the basis of e.g. a powerful active subwoofer... more
Product information "Hypex FusionAmp FA502"

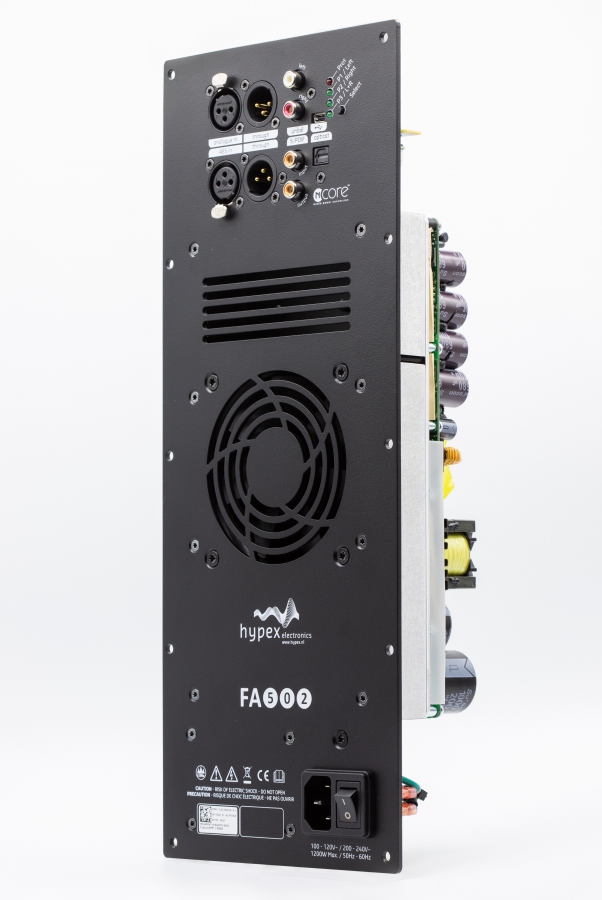

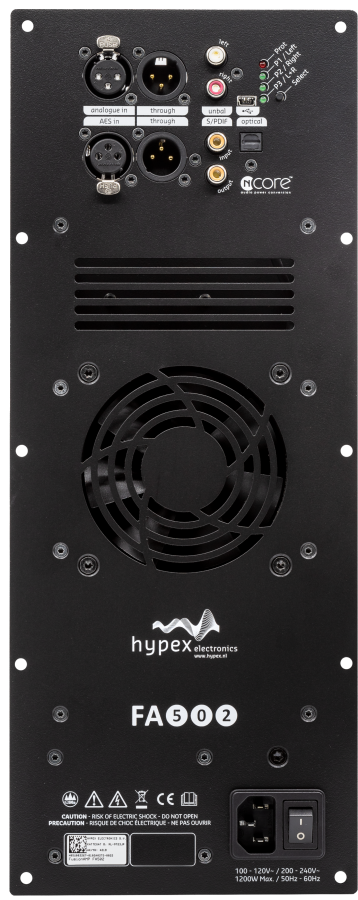

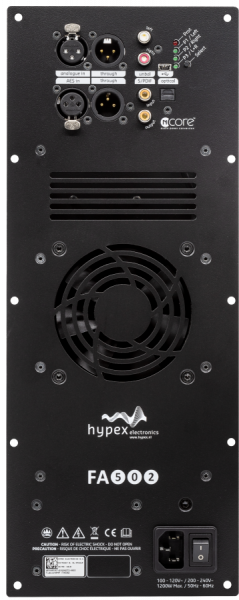

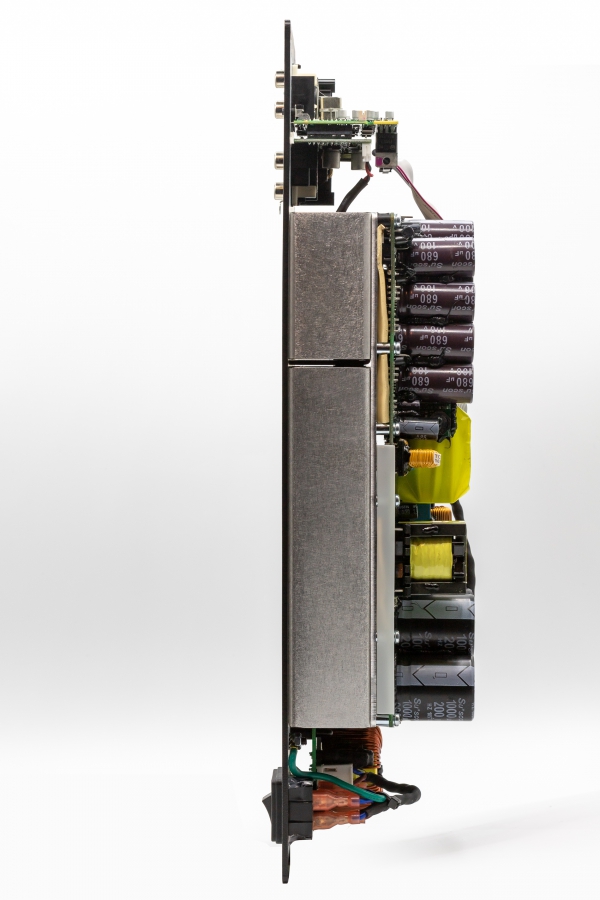

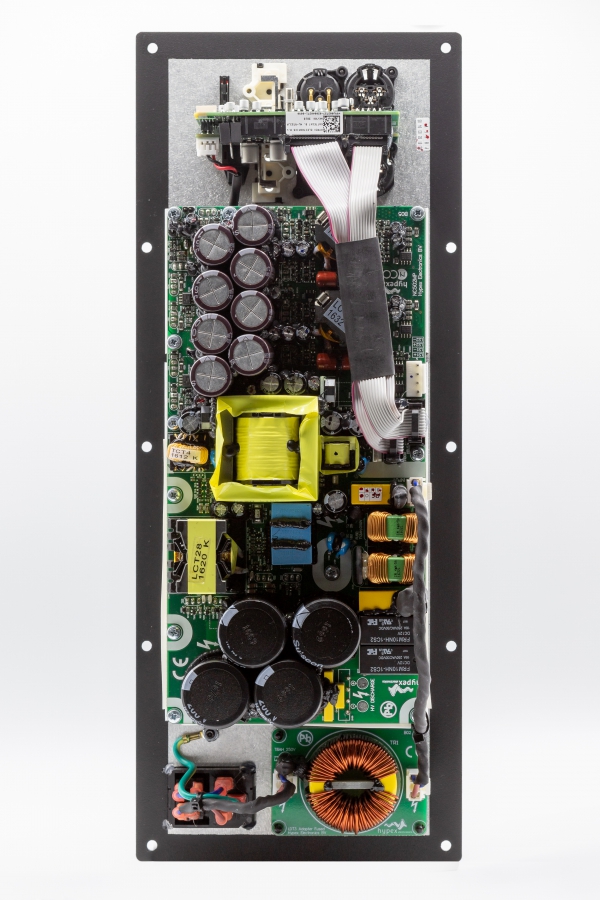

FusionAmp FA502
This FusionAmp can be the basis of e.g. a powerful active subwoofer or a two-way monitor.
The FA502 has two 500 Wrms Ncore® amplifiers which can also be bridged to form one powerful 1000 Wrms amplifier.
Dimensions: 380 * 150 x 90 mm
Weight: 2150 gram
Connections
- Analogue balanced XLR in and through
- Analogue unbalanced RCA input
- Digital AES in and through
- Digital S/PDIF in and through
- Digital Optical TosLink input
- USB 2.0 configuration interface
Features
- 15 biquads per amplifier
- Three selectable presets for filters
- Source selection
- Signal detect
- Auto shutdown
- BTL capable
- Clip protect
- Thermal protect
- Filter protection
Meet the family

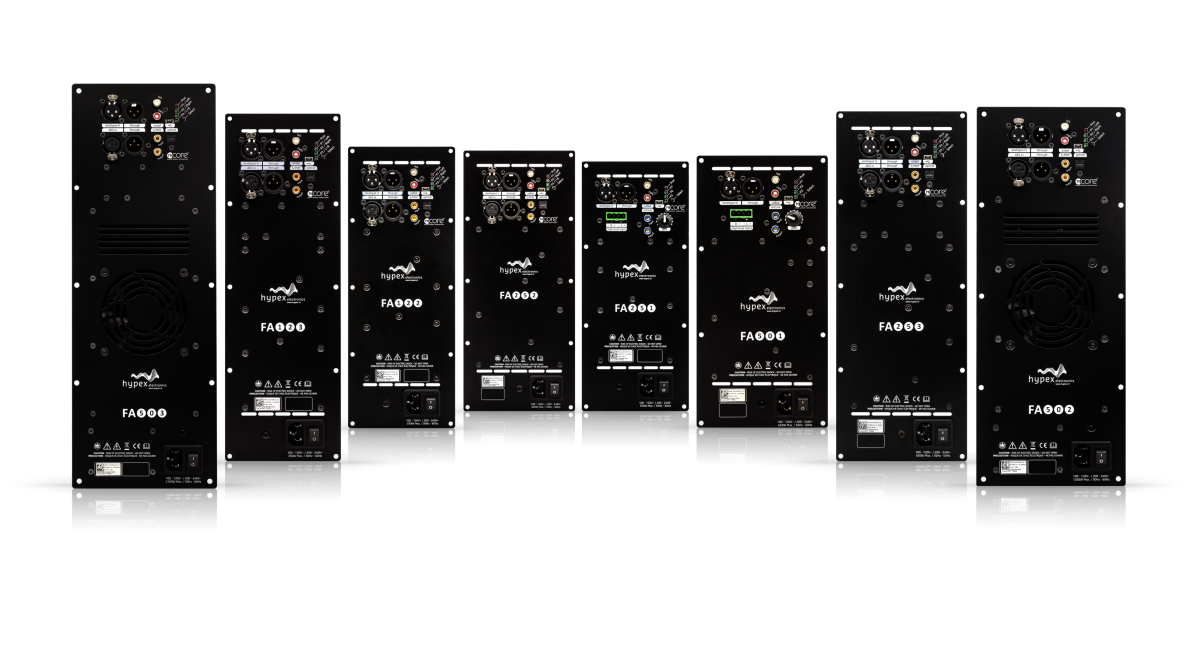

The Fusion Amp family consists of the following models:
FusionAmp One-Way models:
FA251, 1x250W
FA501, 1x500W
FusionAmp Two-Way models:
FA122, 2x125W
FA252, 2x250W
FA502, 2x500W
FusionAmp Three-Way models:
FA123, 2x125W + 100W Tweeter
FA253, 2x250W + 100W Tweeter
FA503, 2x500W + 100W Tweeter
What is included in the box:
- The FA502
- A printed copy of the user guide
- Speaker connection cables
Specs
| Power (4Ω) | 2x 500Wrms |
| Power (8Ω) | 2x 350Wrms |
| Channels | 1 channel / 2 way |
| Mains voltage input | 100-120Vac / 200-240Vac ±10% |
| Dimensions mm | 380*150*90mm |
| Weight | 2150gr |
