Monacor SAM-200D

€207.00 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • sam-200d
Monacor SAM-200D   Active Subwoofer Modules for the Digital Age Due to... more
Product information "Monacor SAM-200D"

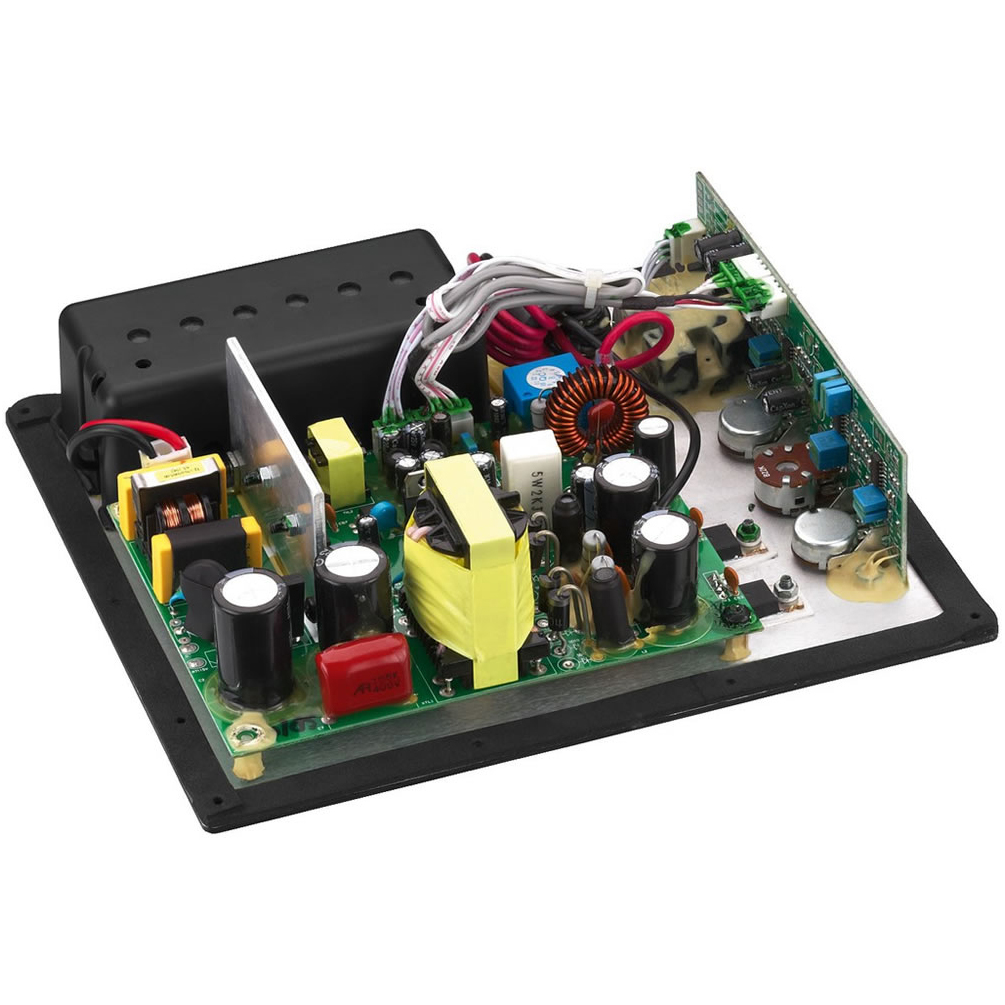

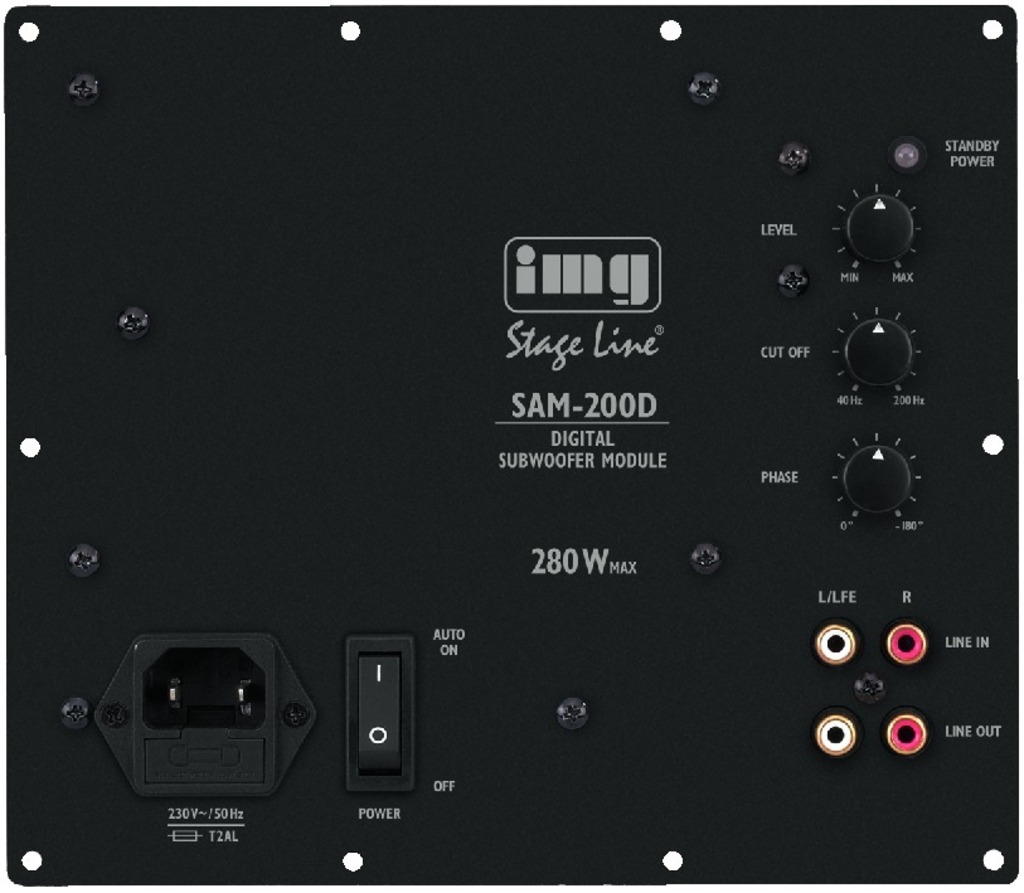

Monacor SAM-200D


Active Subwoofer Modules for the Digital Age

Due to state-of-the-art technology in the digital D class, the digital active subwoofer modules from MONACOR provide a powerful bass reproduction in self-built subwoofer systems. The components feature a high power efficiency and provide an energy-saving operation. The lightweight design of these models which are available at an attractive price ensures a low total weight of the speaker system.



Digital active subwoofer module

Technical Facts

Output power rms 4Ω                      200WRMS
Output power rms 8Ω                      100WRMS
Music output power 4Ω                    280WMAX
Music output power 8Ω                    150WMAX
THD at rms power                           < 0.1%
Frequency range, full range               -
Frequency range, satellite                 -
Frequency range, subwoofer             20Hz - (var. 40-200Hz)
Output impedance                           4-8Ω
Input impedance                             20kΩ

Max. input voltage

Line in                                            7V max.

High power in                                  -

Max. power of high level input 4Ω     -
Max. power of high-level input 8Ω     -

S/N ratio                                         > 70dB
Power consumption, no load             24VA
Power consumption, stand-by           < 0.5W
Stand-by activation time                   -
Power supply                                   230V˜/50Hz/210VA
Required mounting cutout                185x160mm
Mounting depth w/o front panel         60mm
Dimensions                                     178x204x80mm
Weight                                            1.2kg
Line in                                            1 x RCA
High power in                                  -
Line out                                          1 x RCA
Volume control                                 X
Freq. cutoff control                           X
Phase control                                   X
Mains switch                                    X
