Taken from volcano mountain in Lombok, Indonesia with astonishingly nature beauty panorama,RINJANI kit is designed to deliver transparent and dynamic sound reproduction. The Rinjani is a 2.5-way floor standing speaker kit based on top line of SATORI drivers 6.5" MW16P and TW29R.
The RINJANI gently faceted top corner shape is specially designed to reduce high frequency diffraction and yields superp imaging qualities. 7⁰ inclined cabinet shape has purpose to deliver sound staging even with simple crossover design. Whilst, the idea behind inclined bottom is to diminish standing waves. Build-in pedestal is designed to generate accent on its unique design.
All the cabinet panels are cut from 18mm MDF with internal bracing to distribute cabinet vibrations evenly and hence lower sound coloration. Unwanted direct reflection is minimized by wedge shaped inner rear walls. The RINJANI also has dual ports at the back to distribute port resonance evenly.

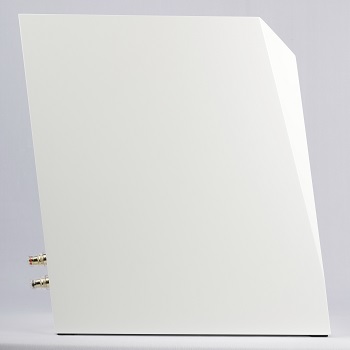

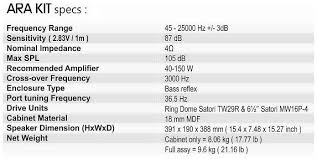

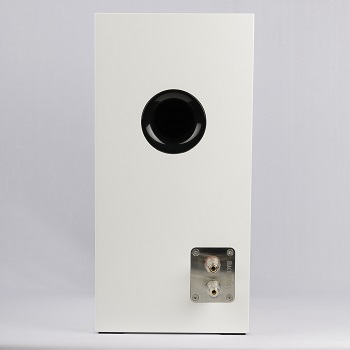

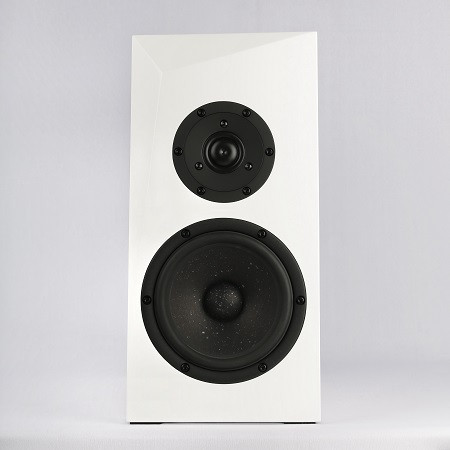

While the ARA is the smaller brother of RINJANI with same design concept.
The ARA kit contains:
SB Acoustics ring dome tweeter SATORI-TW29R-B
SB Acoustics SATORI-MW16p, 4 Ohm
2x Bass reflex tube HP50, 50x145 mm, black
Damping Sonofil 100 x 35 cm for 20 litres
Binding Post PK28 I, gold plated (one pair, red and black)
2m Speaker cable 2x1.5 mm2, transparent
1,5x Pan screws 4x20 black, torx, 8 pieces

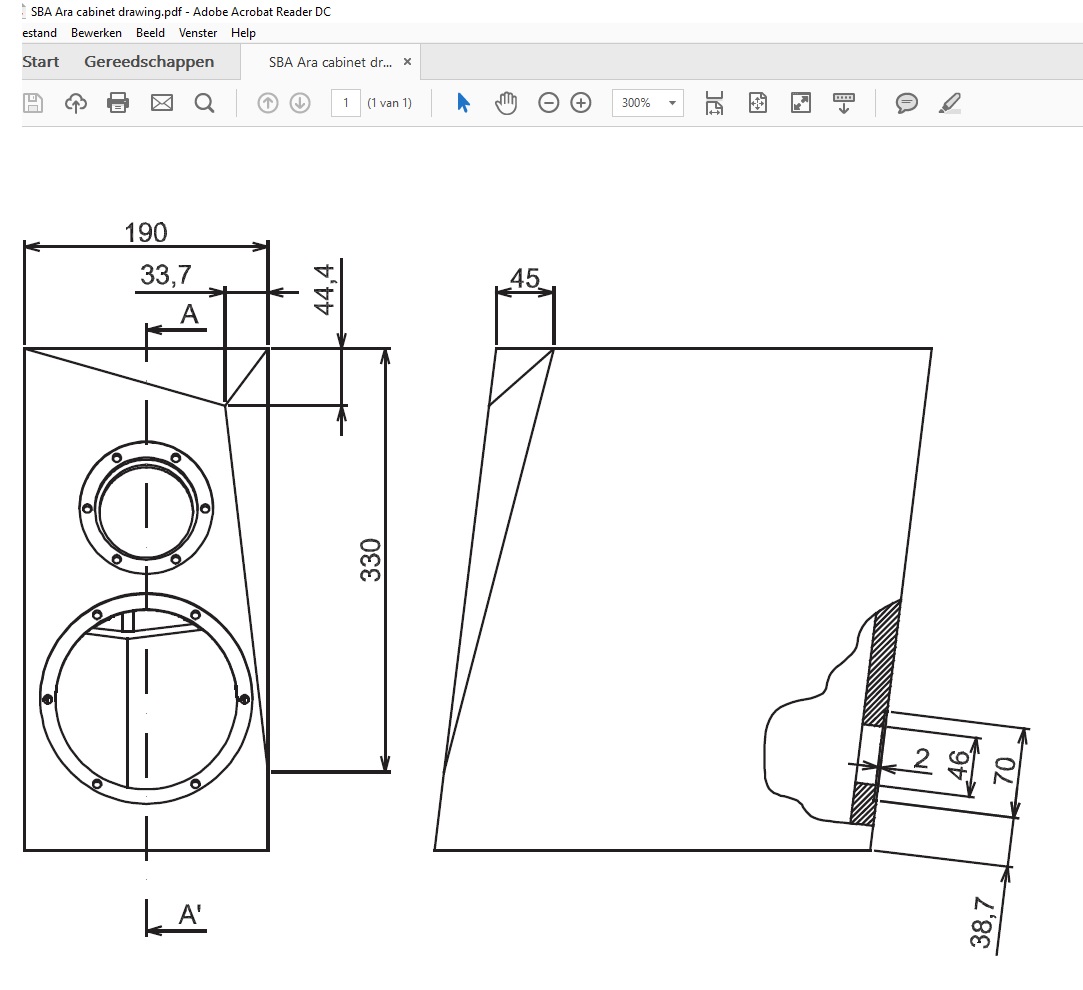

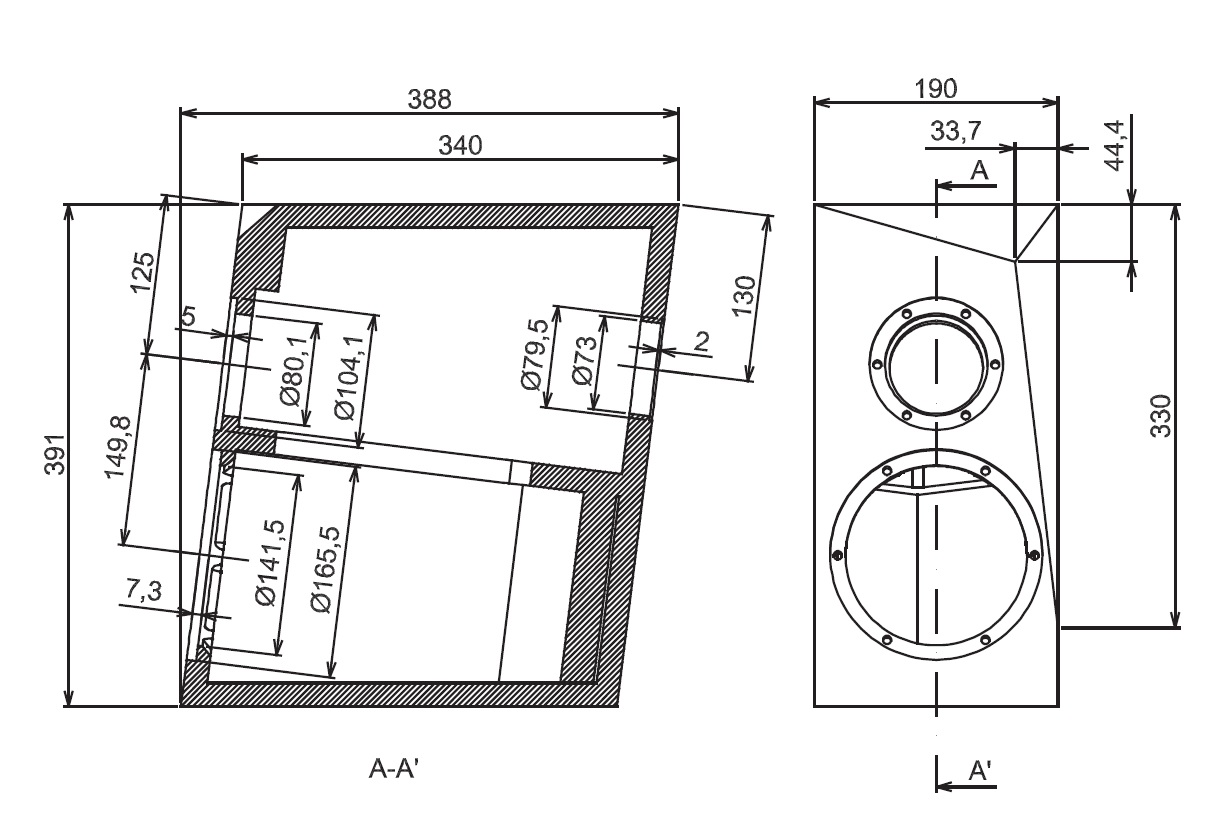

Plan for DIY kit

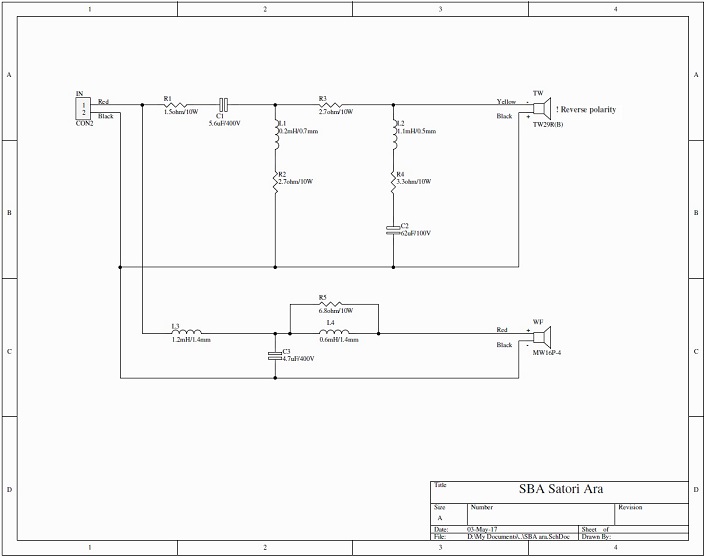

Mundorf MCAP EVO 15 μF / 450 V
Mundorf MCAP EVO Oil 6.8 μF / 450 V
Audaphon MKP CAP Superior 1.0 μF / 400 Vdc
electrolytic capacitor, unetched, 33uF / 70 Vdc
Mundorf baked varnish air core coil BL71, 0.47 mH/0.57 Ohm
Mundorf baked varnish air core coil BL71, 1.5 mH/1.13 Ohm
Mundorf baked varnish air core coil BL140, 1.2 mH/0.34 Ohm
