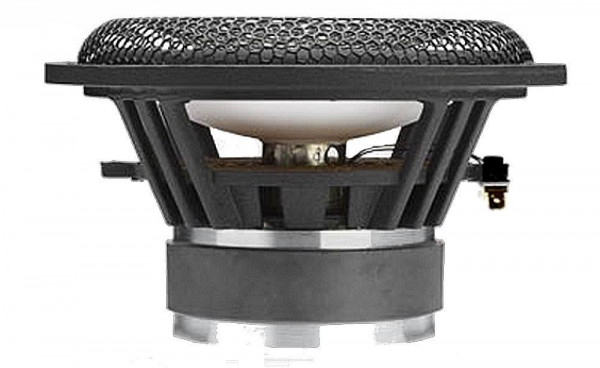

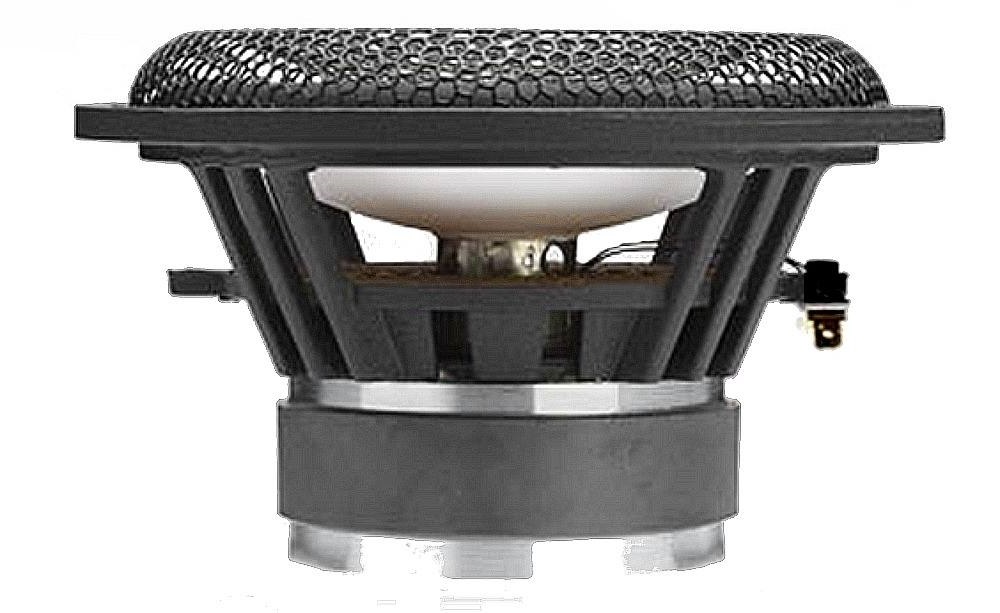

The C158 - 8 - 085 is a 5.5 inch bass - midrange driver with ultra hard ceramic dome. A FEA optimized overhung motor design with 25 mm titanium voice coil former guarantees extraordinary low energy storage and good heat transfer. The low loss rubber surround and a thin fabric spider center the moving parts with high linearity. As a typical small home stereo bass - midrange driver, we recommend our C158 - 8 - 085 for an application from 35 Hz – 3000 Hz.
Specifications
power handling (continuous/programme) = 100 W

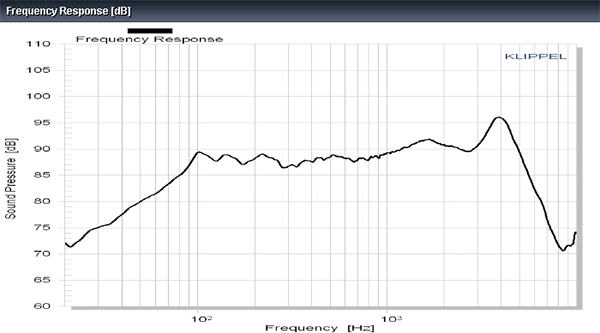

frequency range = 35-3000 Hz
resonance frequency fs = 33 Hz

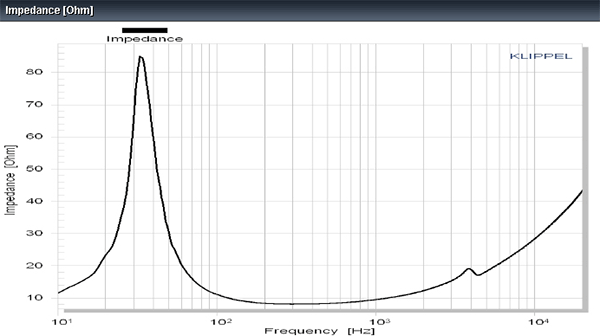

impedance R = 8 Ohm
sound pressure level SPL = 89 dB (2,83V; 1m)
DC resistance Re = 7,8 Ohm
force factor BL = 7,5 N/A
voice coil inductance L = 0,54 mH
effective piston radiating area Sd = 113 cm2
effective mechanical mass incl. air load mms = 11,6 g
equivalent volume of compliance Vas = 35 l
total Q factor Qts = 0,31 (Qms=4,12, Qes=0,34)
voice coil diameter = 25 mm
maximum peak linear excursion vibration xlin = +/- 5 mm
