Accuton C158-6-851

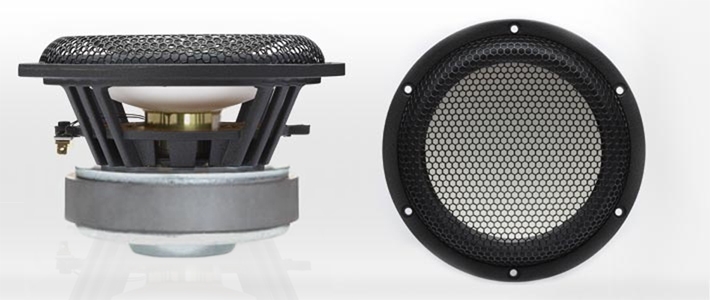

The C158 - 6 - 851 is a 5.5 inch bass - midrange driver with ultra hard ceramic dome. A FEA optimized overhung motor design with 38 mm titanium voice coil former guarantees extraordinary low energy storage and good heat transfer. The low loss rubber surround and a thin fabric spider center the moving parts with high linearity. As a typical small home stereo bass - midrange driver, we recommend our C158 - 6 - 851 for an application from 35 Hz – 3000 Hz.

Specifications

• power handling (continuous/programme) = 120 W

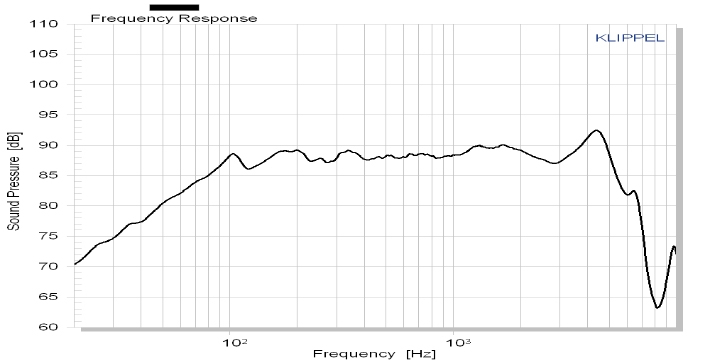

• frequency range = 30-3000 Hz
• resonance frequency fs = 30 Hz

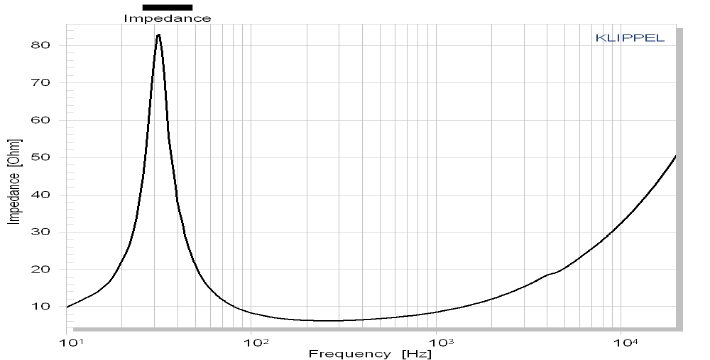

• impedance R = 8 Ohm
• sound pressure level SPL = 88 dB (2,83V; 1m)
• DC resistance Re = 6,3 Ohm
• force factor BL = 8,7 N/A
• voice coil inductance L = 0,73 mH
• effective piston radiating area Sd = 113 cm²
• effective mechanical mass incl. air load mms = 19 g
• equivalent volume of compliance Vas = 26,4 l
• total Q factor Qts = 0,28 (Qms=5,1, Qes=0,3)
• voice coil diameter = 38 mm
• maximum peak linear excursion vibration x_lin = +/- 5 mm

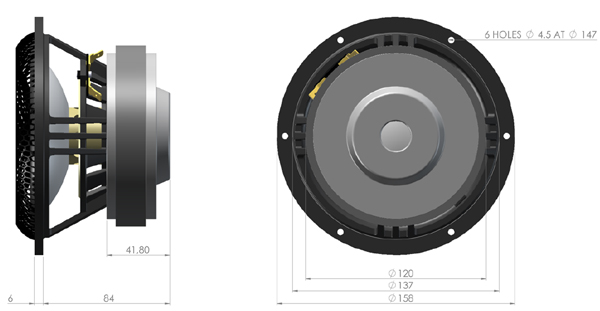

• mounting diameter d = 137 mm
• overall diameter d = 158 mm
• mounting depth (not countersunk) t = 84 mm
• mass m = 2,28 kg
