Dayton Audio CX120-8

€41.90 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • da-cx120-8
CX120-8 4" Coaxial Driver with 3/4" Silk Dome Tweeter 8 Ohm   With a natural sounding... more
Product information "Dayton Audio CX120-8"

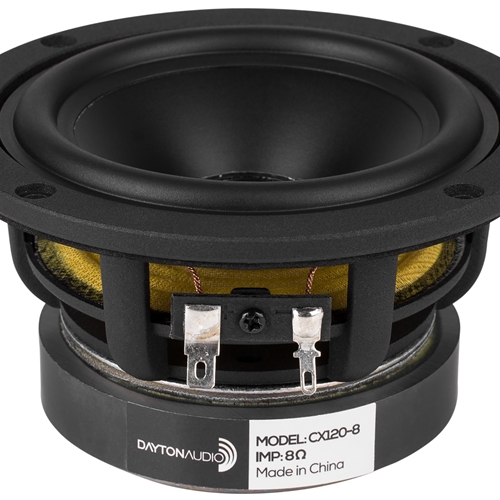

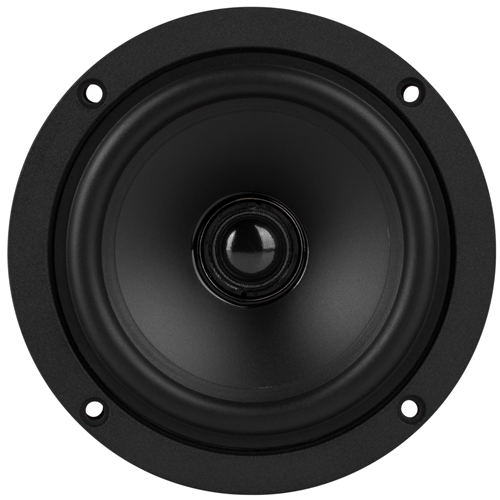

CX120-8 4" Coaxial Driver with 3/4" Silk Dome Tweeter 8 Ohm



With a natural sounding 3/4" soft dome tweeter concentrically mounted in a long throw poly cone 4" woofer Dayton Audios CX120-8 will produce extremely smooth response on and off-axis while avoiding the phase and lobing issues associated with standard 2-way designs. This driver is perfect for compact designs, portable speakers, or even custom car audio systems.

Product Highlights

  • Full-range with accurate bass and extended high frequency response

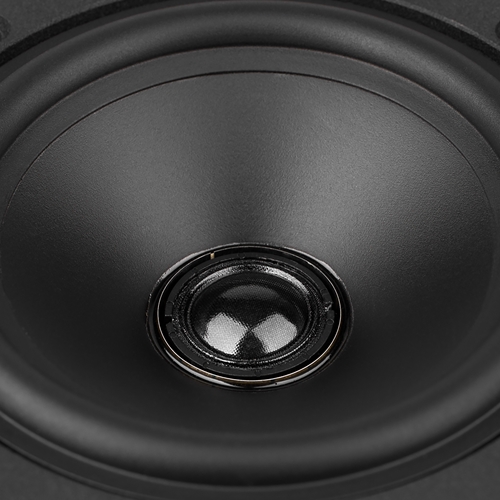

  • Coaxial mounted 3/4" silk dome tweeter

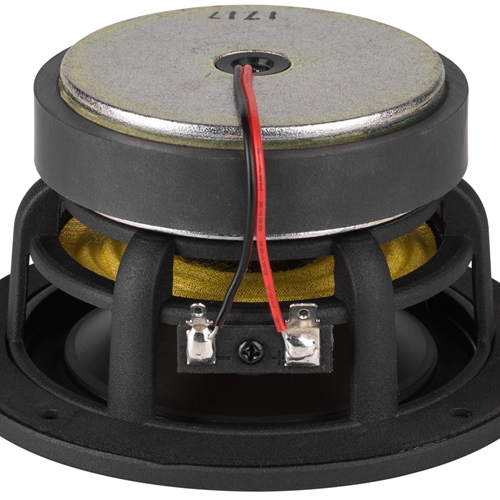

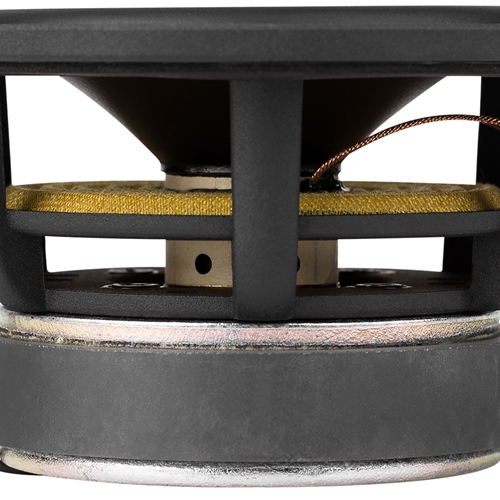

  • Open cast frame for improved air flow and minimal power compression
  • 4" curvilinear poly cone woofer with rubber half roll surround



Specifications

  • Power Handling (RMS) 40 watts
  • Power Handling (max) 80 watts

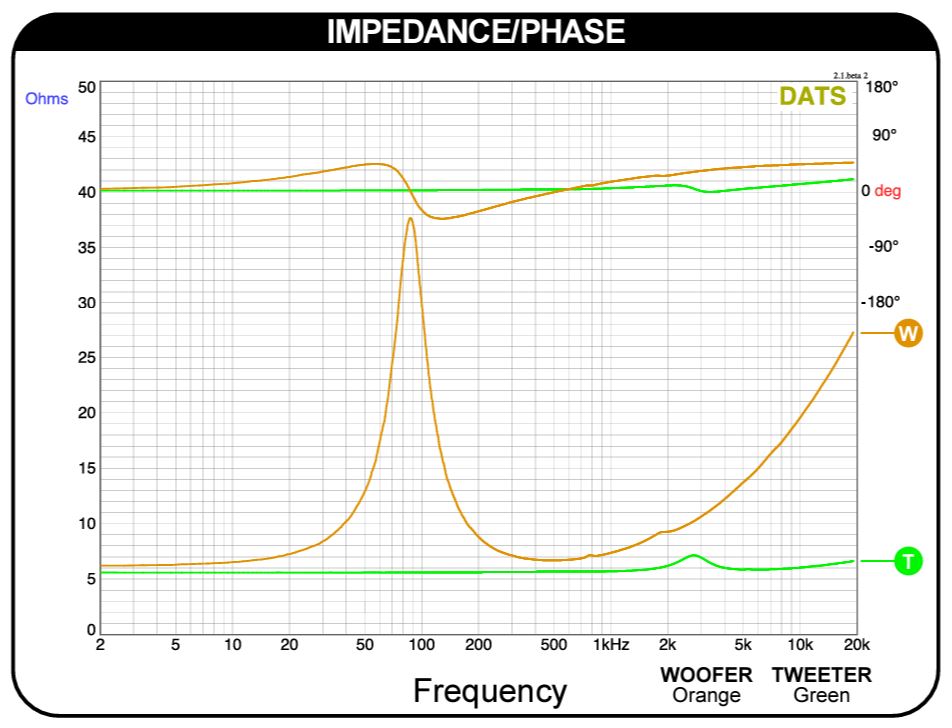

  • Impedance (Z) 8 ohms
  • Sensitivity (SPL at 1m / 2.83V) 88.5 dB

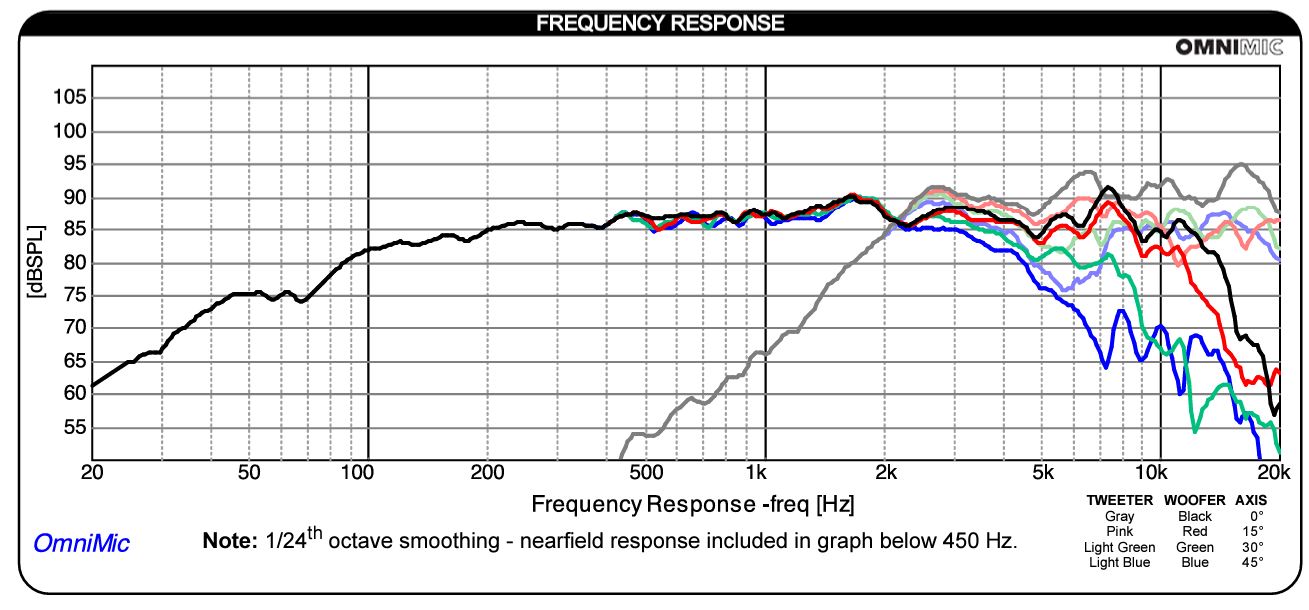

  • Frequency Response 90 to 20,000 Hz
  • Voice Coil Diameter 25mm
  • DC Resistance (Re) 6.22 ohms
  • Voice Coil Inductance (Le) 0.63 mH
  • Resonant Frequency (Fs) 87.5 Hz
  • Mechanical Q (Qms) 2.89
  • Electromagnetic Q (Qes) 0.57
  • Total Q (Qts) 0.48
  • Diaphragm Mass Inc. Airload (Mms) 4.82g
  • Mechanical Compliance of Suspension (Cms) 0.765 mm/N
  • Surface Area of Cone (Sd) 52.51 cm²
  • BL Product (BL) 5.08 Tm
  • Compliance Equivalent Volume (Vas) 3.0 liters
  • Maximum Linear Excursion (Xmax) 3 mm

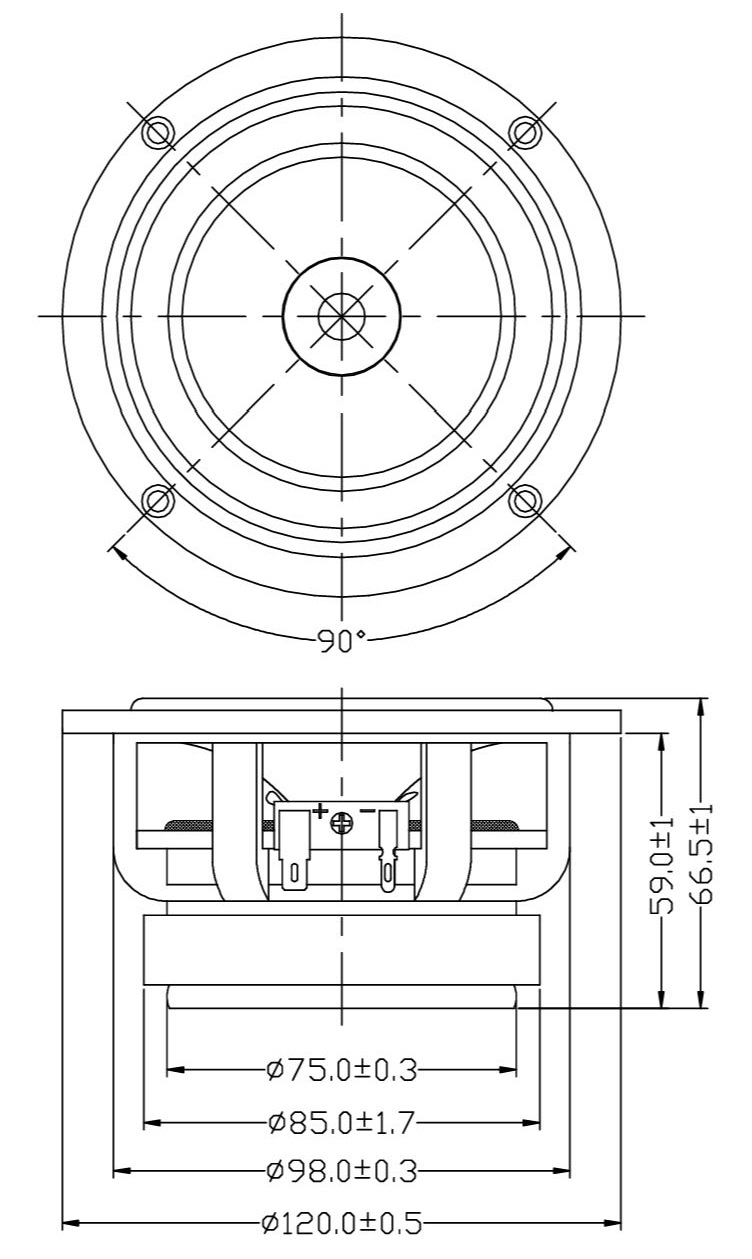

  • Overall Outside Diameter 120.0mm
  • Overall Depth (not countersunk) 59mm
  • Mounting Cutout Diameter 98mm
