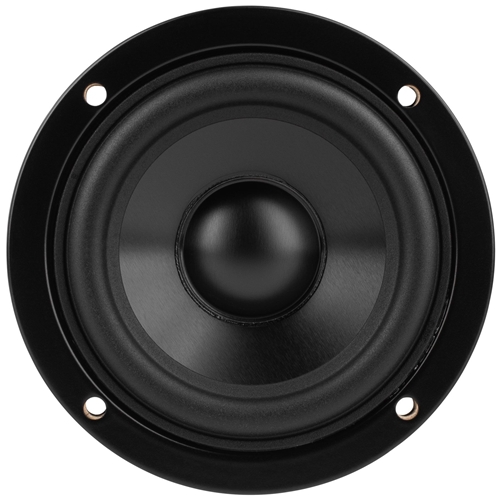

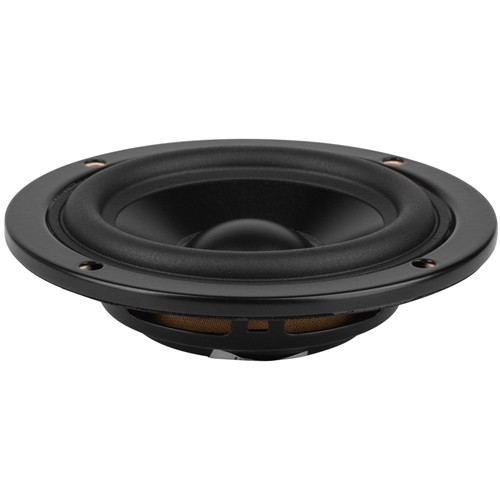

The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. Built to be a perfect match for the Designer Series drivers, these passive radiators feature the same steel frame, rubber surround, and anodized aluminum cone making them visually identical.

Product Highlights

• Perfect match for Dayton Audios aluminum cone Designer Series drivers
• Allows tuning small enclosures lower than using conventional ports

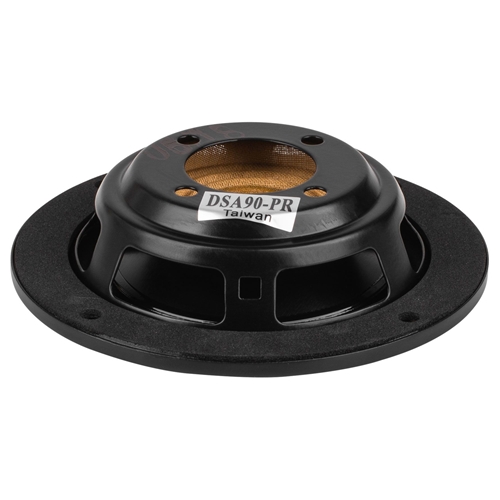

• Rear mounted screw allows easy mass adjustment for custom tuning
• Cosmetic frame edge looks great even when surface mounted



Specifications:

• Fs: 43.7 Hz
• Vas: 3,5 ltr.
• Qms: 5.72
• Cms: 2.55 mm/N
• Rms: 0.2 kg/s
• Mms: 5 g
• Sd: 31.2 cm².
• Xmax: 4 mm

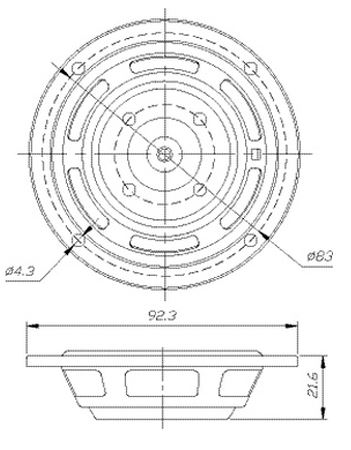

• Overall diameter: 92,3mm
• Cutout diameter: 70,1mm
• Depth: 21,6mm
