Product information "Dayton Audio DSA135-PR"

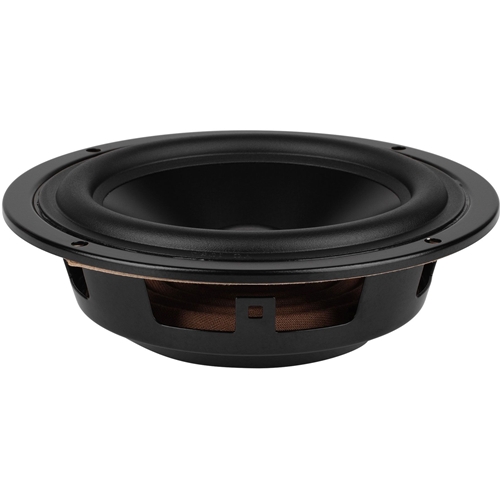

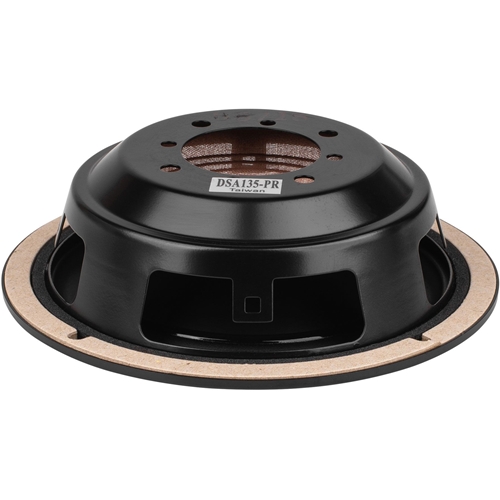

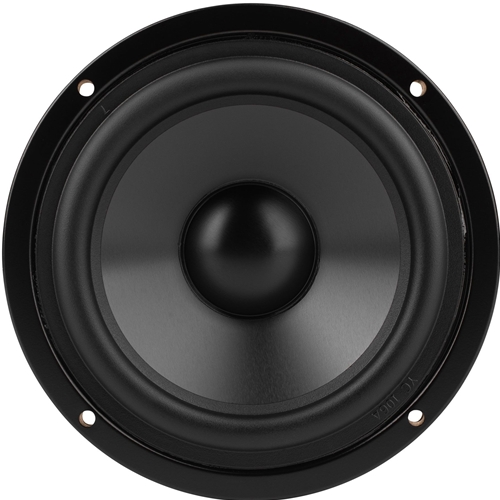

DSA135-PR 5" Designer Series Aluminum Cone Passive Radiator
The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. Built to be a perfect match for the Designer Series drivers, these passive radiators feature the same steel frame, rubber surround, and anodized aluminum cone making them visually identical.
Product Highlights
- Perfect match for Dayton Audios aluminum cone Designer Series drivers
- Allows tuning small enclosures lower than using conventional ports
- Rear mounted screw allows easy mass adjustment for custom tuning
- Cosmetic frame edge looks great even when surface mounted
Specifications
- Resonant Frequency (Fs) 27.9 Hz
- Mechanical Q (Qms) 3.7
- Diaphragm Mass Inc. Airload (Mms) 21.5g
- Mechanical Compliance of Suspension (Cms) 1.51 mm/N
- Surface Area of Cone (Sd) 75.5 cm²
- Compliance Equivalent Volume (Vas) 12,2 ltr.
- Maximum Linear Excursion (Xmax) 8 mm
- Cone / Diaphragm Material Aluminum
- Surround Material Rubber
- Basket / Frame Material Steel

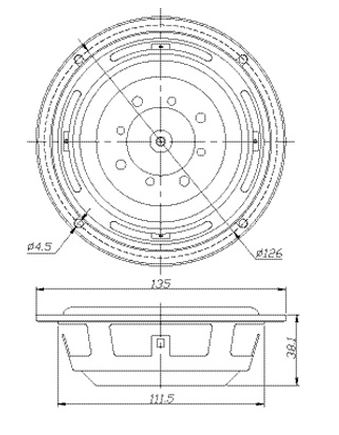

- Overall Outside Diameter 135mm
- Overall Depth 38,1mm
- Baffle Cutout Diameter 111,5mm
