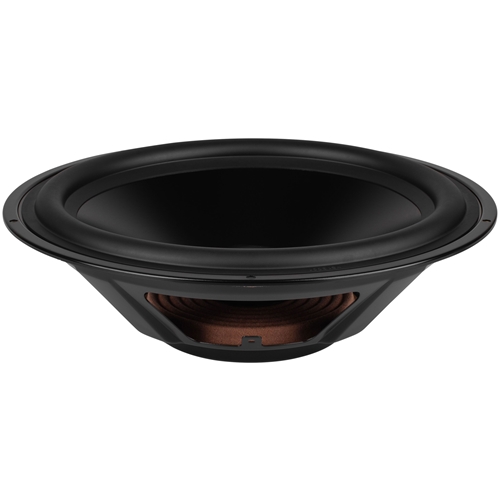

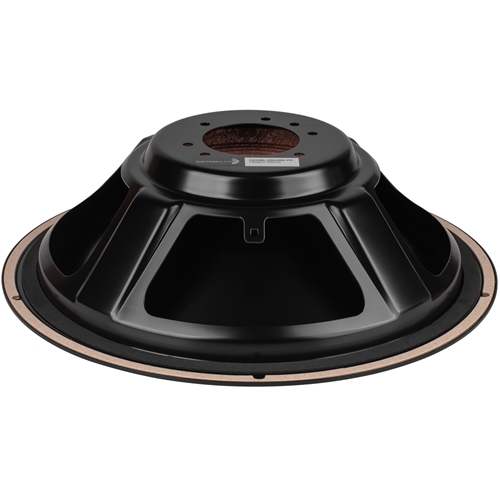

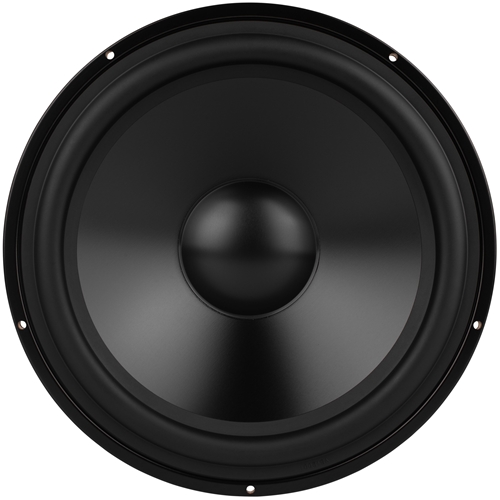

The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. Built to be a perfect match for the Designer Series drivers, these passive radiators feature the same steel frame, rubber surround, and anodized aluminum cone making them visually identical.

Product Highlights

• Cosmetic frame edge looks great even when surface mounted
• Allows tuning small enclosures lower than using conventional ports
• Rear mounted screw allows easy mass adjustment for custom tuning
• Perfect match for Dayton Audios aluminum cone Designer Series drivers



Specifications:

• Fs: 17.5 Hz
• Vas: 6.74 cu. ft.
• Qms: 6.23
• Cms: 0.58 mm/N
• Rms: 2.5 kg/s
• Mms: 142.6 g
• Sd: 480 sq. cm.
• Xmax: 13 mm

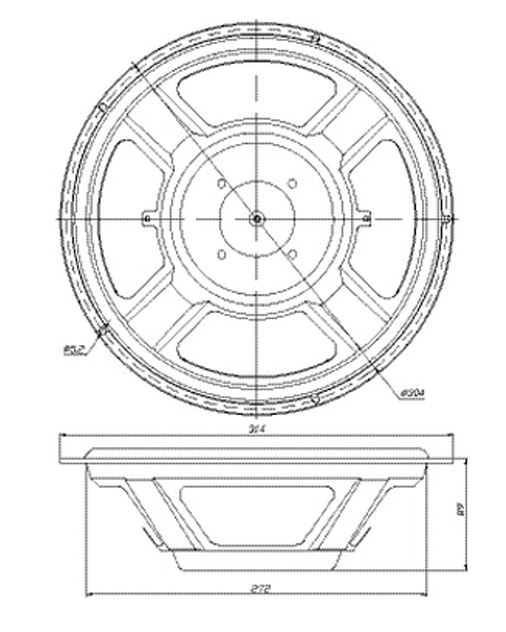

• Dimensions:
• Overall diameter: 314mm
• Cutout diameter: 272mm
• Depth: 89mm
