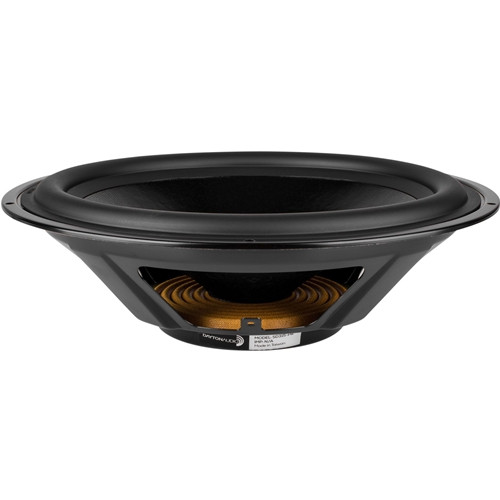

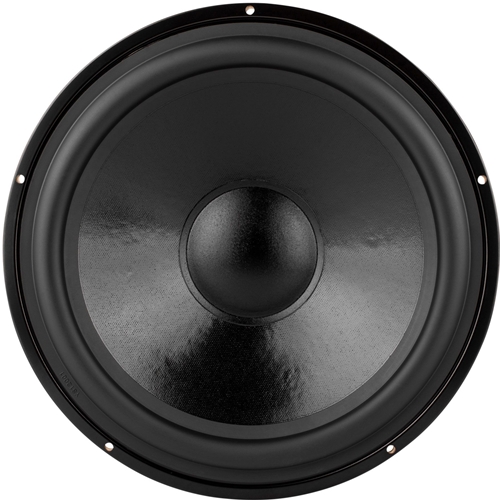

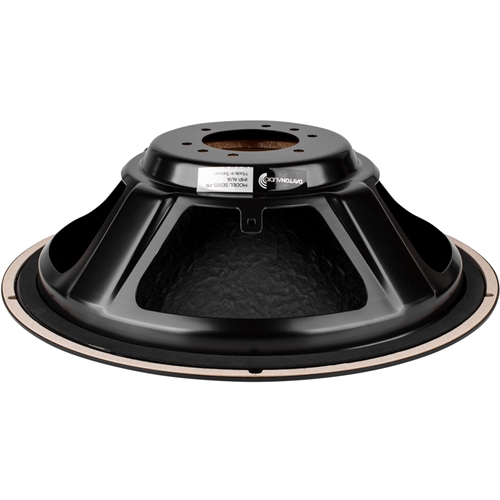

The Dayton Audio Passive Radiators are excellent general-purpose passives suitable for replacement or for new construction.

Product Highlights

• Smooth, low-distortion bass performance
• Robust construction with high-excursion design
• Elegant appearance adds class to any project
• Cosmetic match for Designer Series woofers



Specifications:

• Fs: 17 Hz
• Vas: 5.20 cu. ft.
• Qms: 3.00
• Cms: 0.45 mm/N
• Mms: 200 g
• Rms: 7.03 kg/s
• Sd: 480 sq. cm.
• Xmax: 10 mm

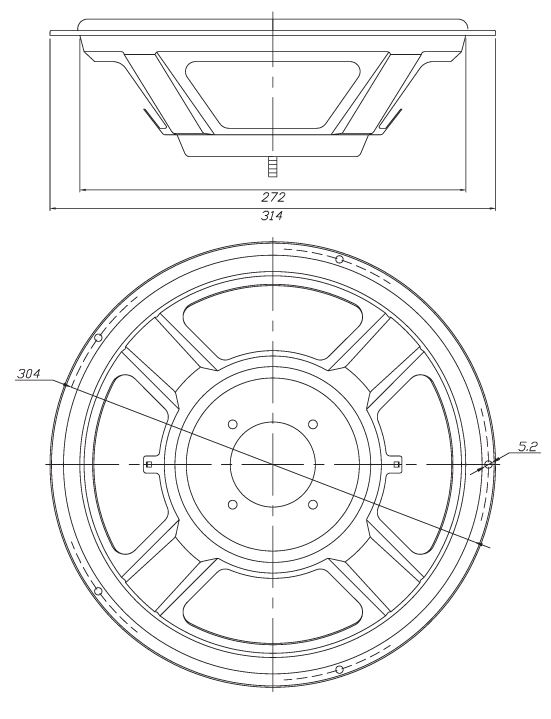

• Dimensions:
• Overall diameter: 314mm
• Cutout diameter: 272mm
• Depth: 88,9mm
