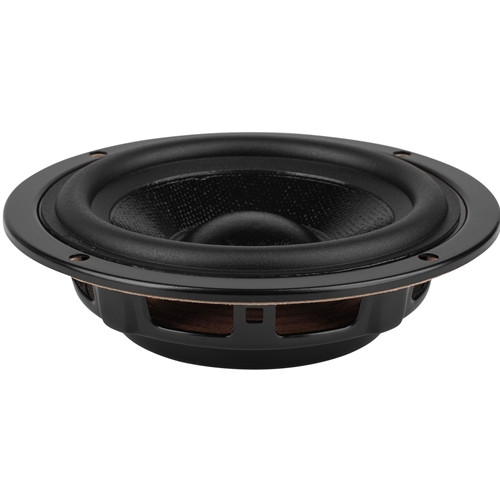

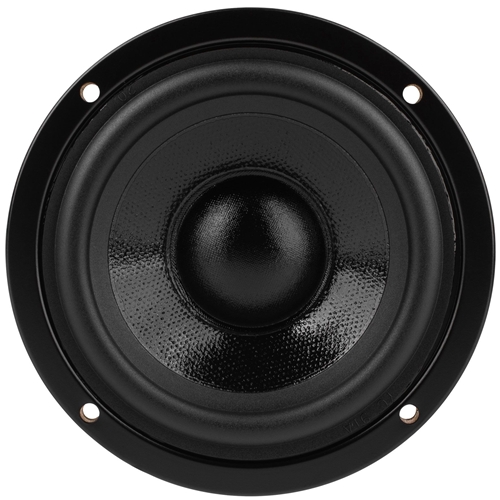

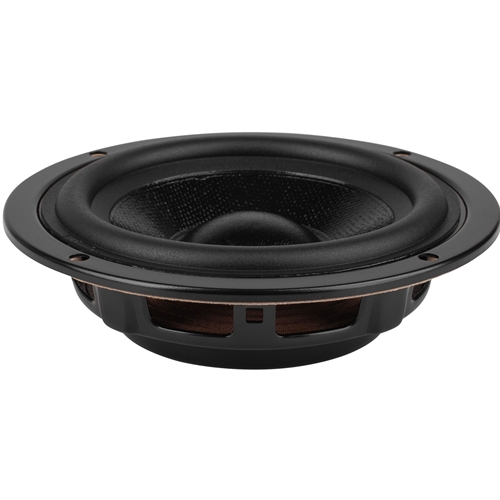

Dayton Audio DS115-PR

The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. Built to be a perfect match for the Designer Series drivers, these passive radiators feature the same steel frame, rubber surround, and treated paper cone making them visually identical

Product Highlights

• Perfect match for Dayton Audios paper cone Designer Series drivers
• Allows tuning small enclosures lower than using conventional ports
• Rear mounted screw allows easy mass adjustment for custom tuning
• Cosmetic frame edge looks great even when surface mounted



Specifications:

• Fs: 29.3 Hz
• Vas: 9,5 ltr.
• Qms: 3.66
• Cms: 2.27 mm/N
• Rms: 0.7 kg/s
• Mms: 13 g
• Sd: 54.1 cm²
• Xmax: 6 mm

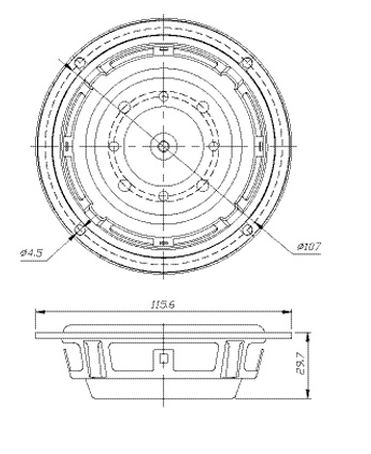

• Dimensions:
• Overall diameter: 115,6mm
• Cutout diameter: 93,6mm
• Depth: 29,7mm
