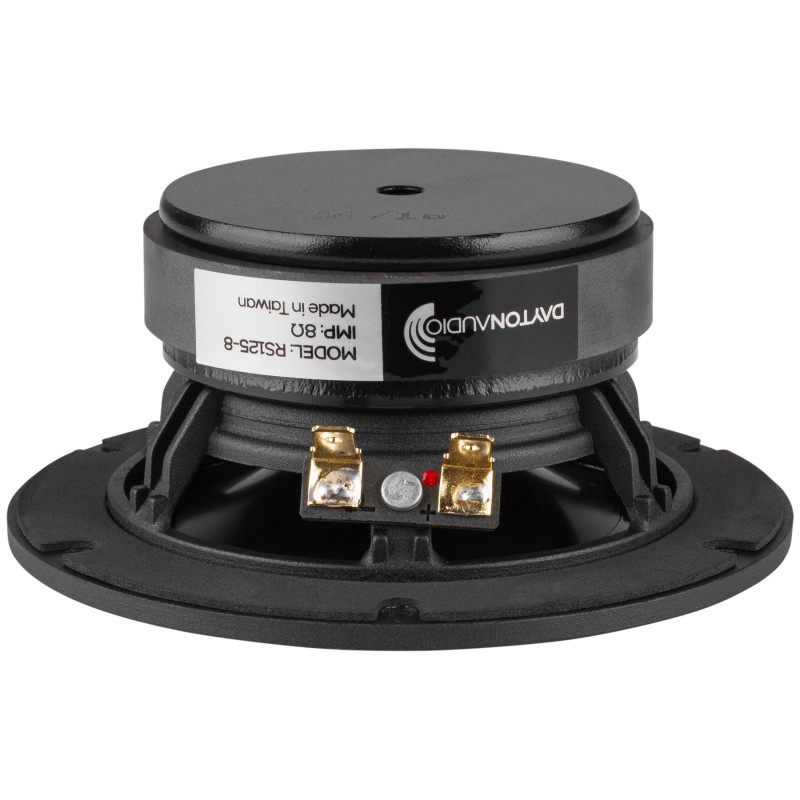

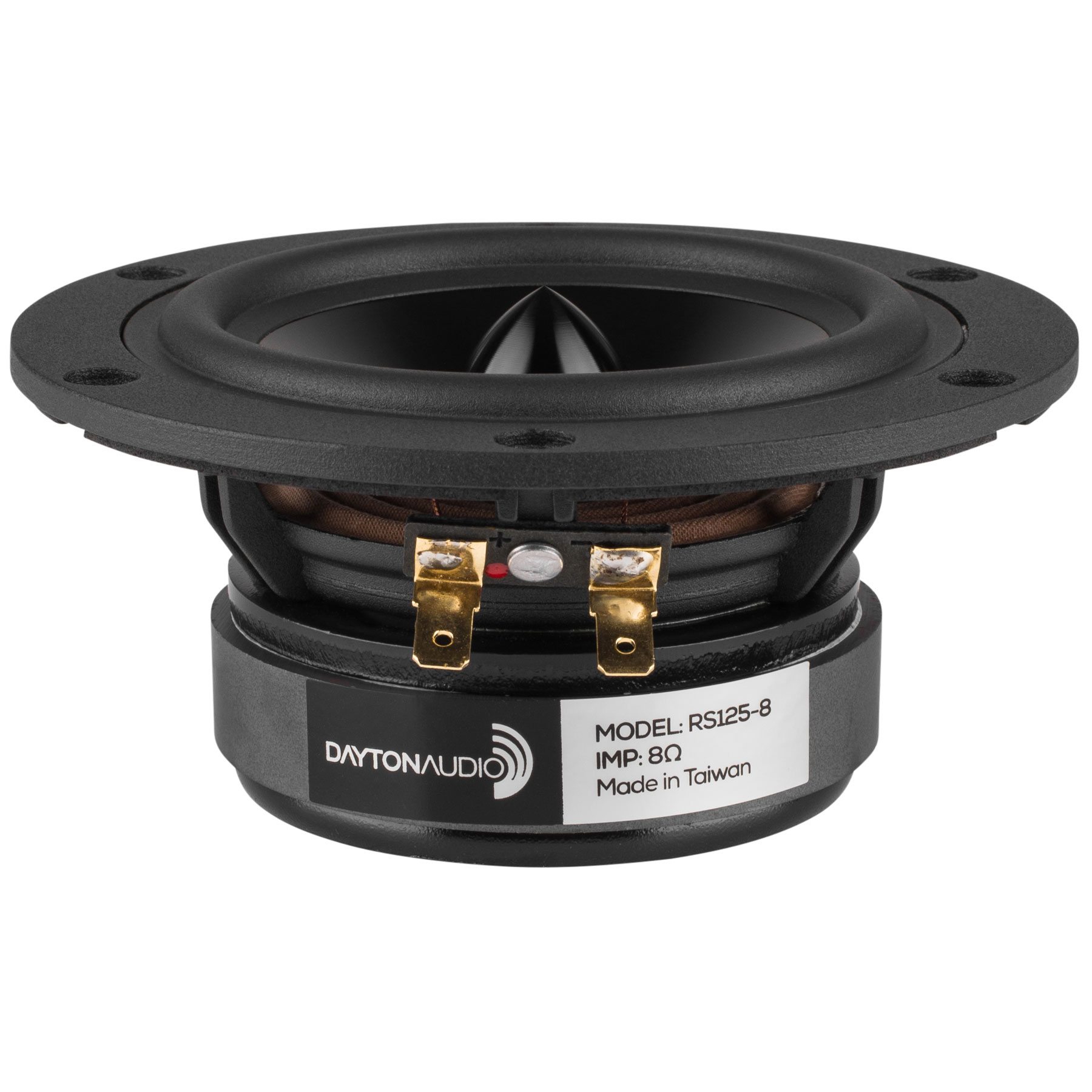

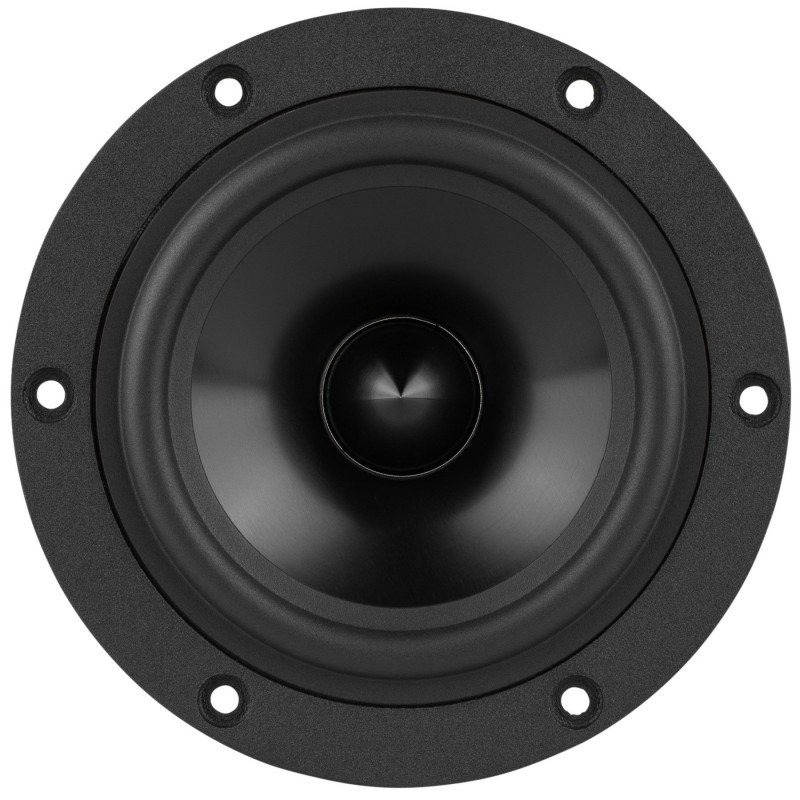

The Dayton Audio Reference Series was conceived with one goal in mind—low distortion. Each speaker was carefully designed and optimized to offer the highest performance with the lowest distortion levels. At the same time, by focusing on features that contribute to sound quality and eliminating unnecessary frills, the drivers offer value unparalleled in the industry. Dayton Audio Reference Series RS125-8 5" woofers deliver exceptional clarity, detail, and dynamics—and of course, incredibly low distortion.
Product Highlights
• One of the lowest distortion, highest resolution driver series available • Low-distortion high-excursion motor system with two short-circuit paths • Compliant suspension and rigid black anodized aluminum cone for strong bass performance • Heavy-duty 6-hole cast frame, low-loss rubber surround, and solid aluminum phase plug
Specifications
power handling (continuous/programme) = 35 W
frequency range = 65-4500 Hz
resonance frequency fs = 70 Hz
impedance R = 8 Ohm
DC resistance Re = 5,86 Ohm
force factor BL = 4,8 N/A
voice coil inductance L = 0,59 mH
effective piston radiating area Sd = 55,4 cm2
effective mechanical mass incl. air load mms = 5,3 g
equivalent volume of compliance Vas = 4,2 l
total Q factor Qts = 0,48 (Qms=2,7, Qes=0,59)
voice coil diameter = 25 mm
maximum peak linear excursion vibration xlin = +/- 4 mm
