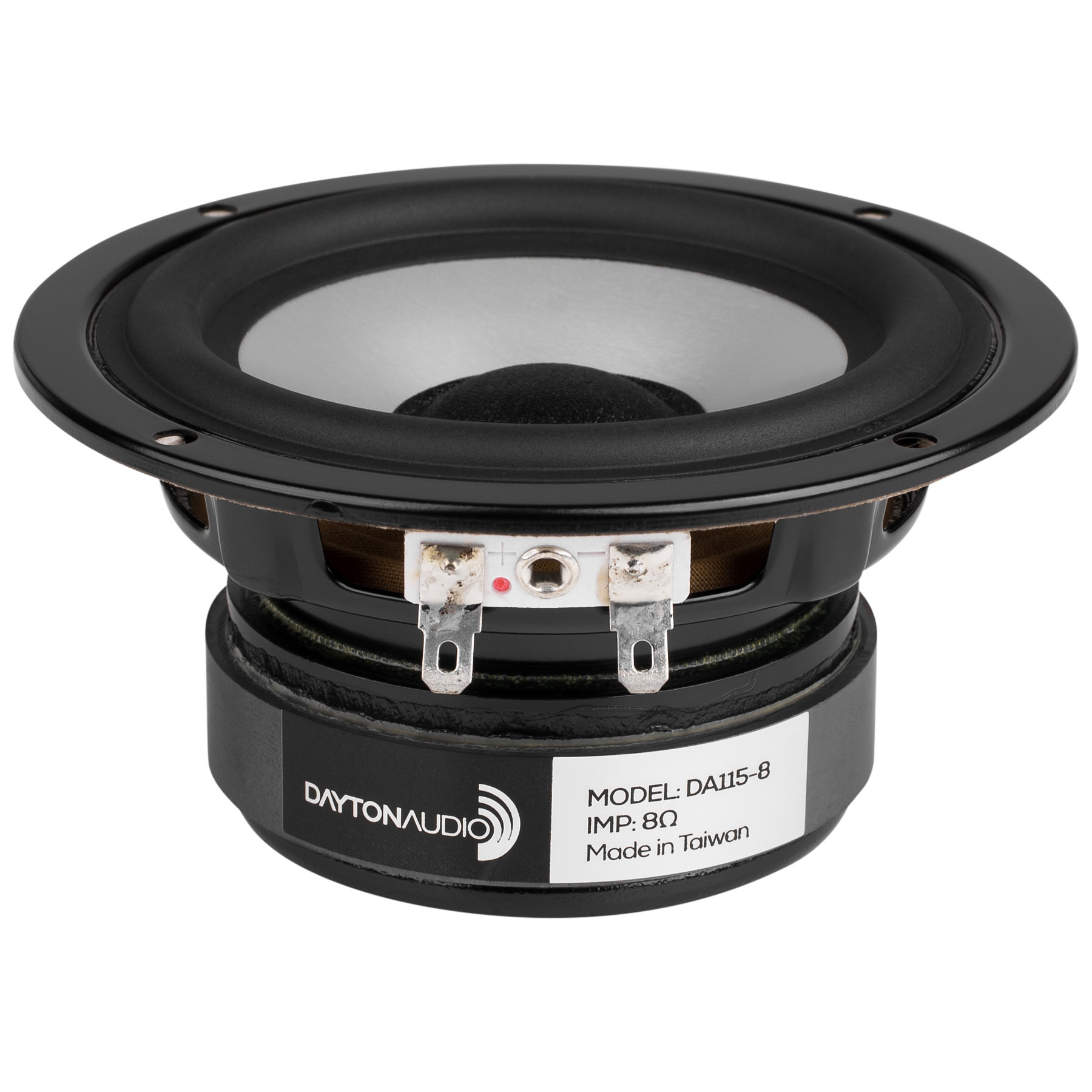

The aluminum cone on this driver is extremely rigid yet well damped, making the bass and midbass region very clean and low in distortion. When used with a well-designed crossover, an extremely flat frequency response can be achieved that is clean well into the midrange region.
Product Highlights
Great looking and sounding woofer
Cosmetic stamped steel frame

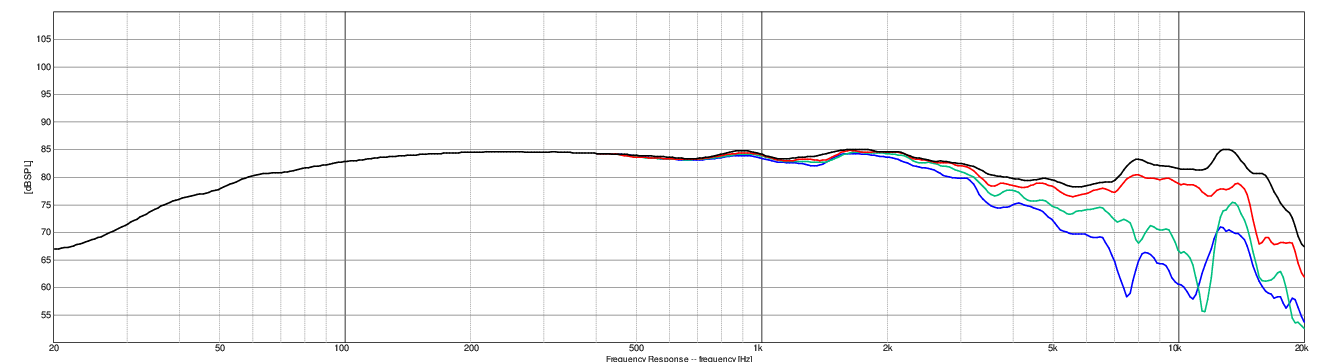

Flat frequency response in passband region
Impressive output capabilities when used in MTM designs
Very low distortion
Specifications
power handling (continuous/programme) = 20/40 W
frequency range = 60-15000 Hz
resonance frequency fs = 60 Hz

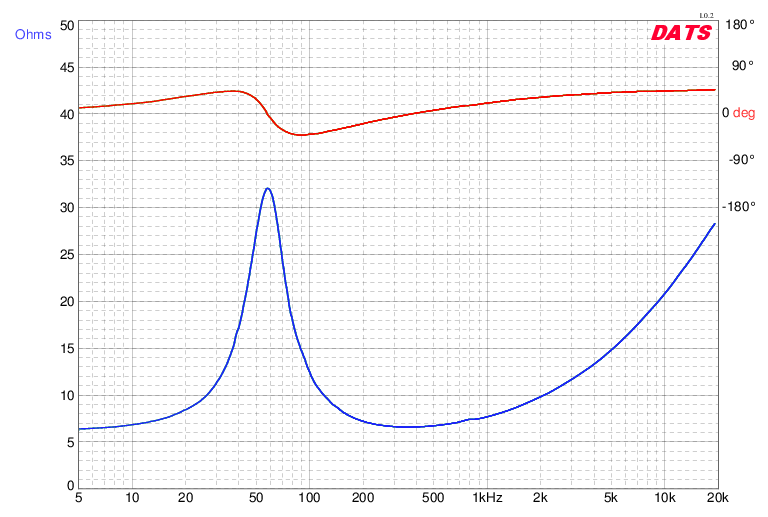

impedance R = 8 Ohm
DC resistance Re = 6,4 Ohm
force factor BL = 5,7 N/A
voice coil inductance L = 0,7 mH
effective piston radiating area Sd = 53,1 cm2
effective mechanical mass incl. air load mms = 6,6 g
equivalent volume of compliance Vas = 4,4 l
total Q factor Qts = 0,41 (Qms=2,60, Qes=0,49)
voice coil diameter = 25 mm
maximum peak linear excursion vibration xlin = +/- 2,5 mm
