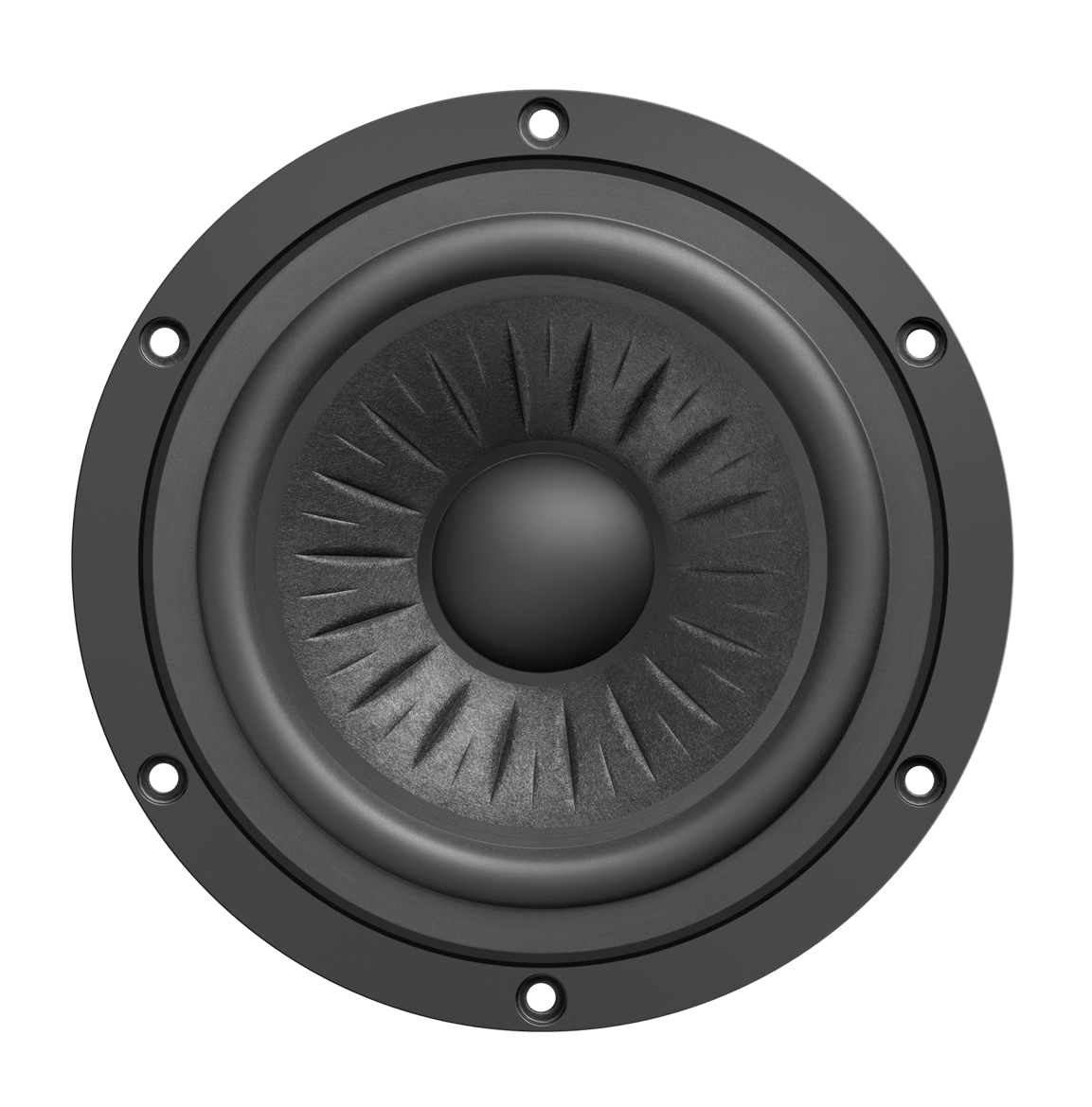

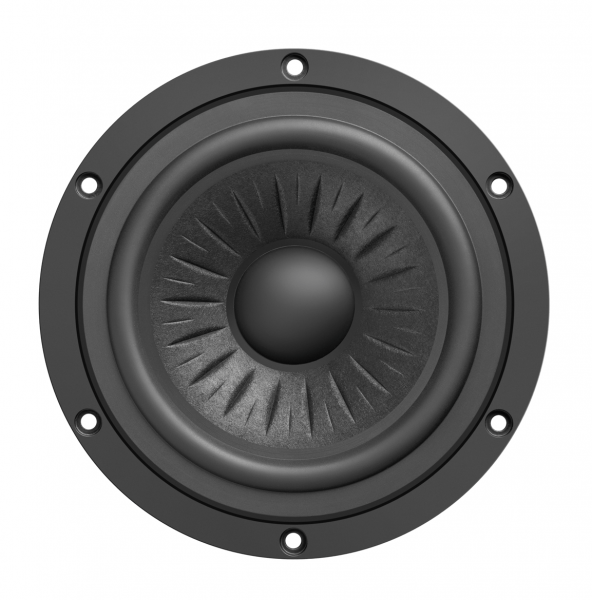

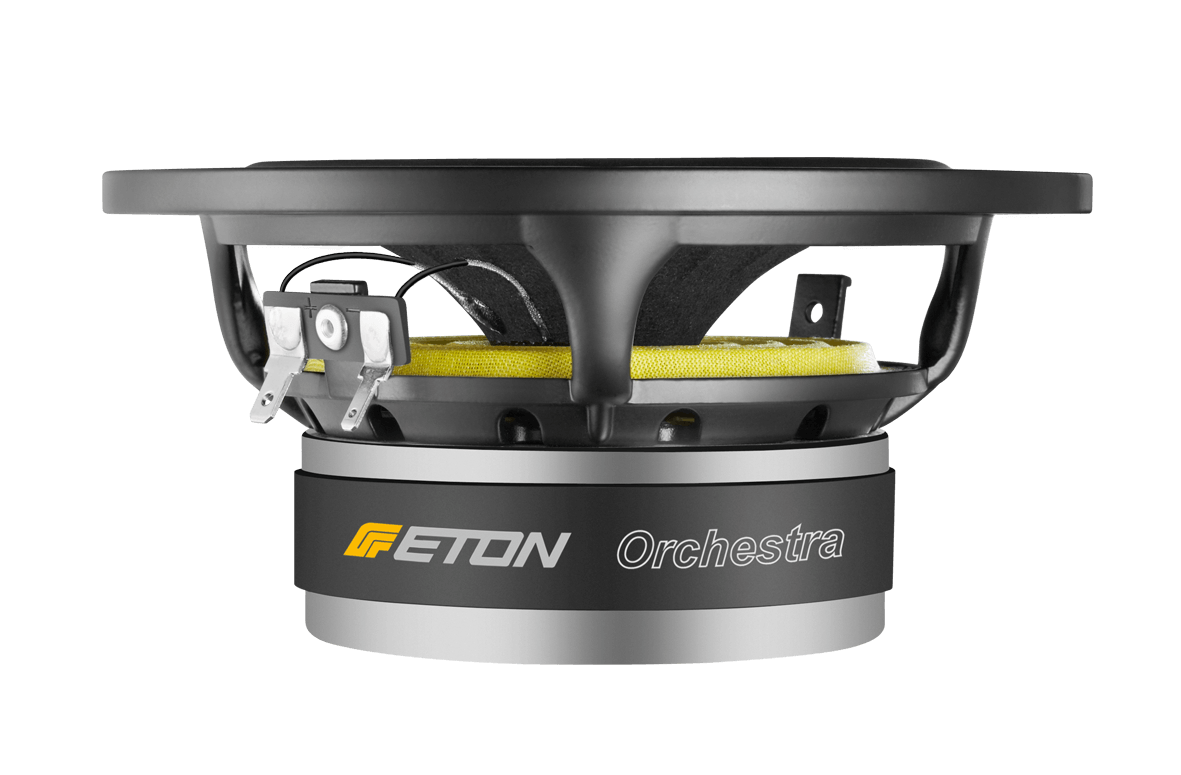

Eton 5-612/C8/25 RP

5“ bass-midrange driver for multiple usage, serrated paper membrane geometry, noncommitted sound character with harmonic, warm midrange and a solid bassrange.

Specifications

• power handling (continuous/programme) = 50 W
• frequency range = 50-4000 Hz
• resonance frequency fs = 53 Hz
• sound pressure level SPL = 88 dB (2,83V; 1m)
• impedance R = 8 Ohm
• DC resistance Re = 5,4 Ohm
• force factor BL = 5,9 N/A
• voice coil inductance L = 0,44 mH
• effective piston radiating area Sd = 80 cm²
• effective mechanical mass incl. air load mms = 7,8 g
• equivalent volume of compliance Vas = 9,8 l
• total Q factor Qts = 0,36 (Qms=3,1, Qes=0,38)
• voice coil diameter = 25 mm
• maximum peak linear excursion vibration x_lin = +/- 2 mm
• mounting diameter d = 120 mm
• overall diameter d = 148 mm
• mounting depth (not countersunk) t = 62 mm
