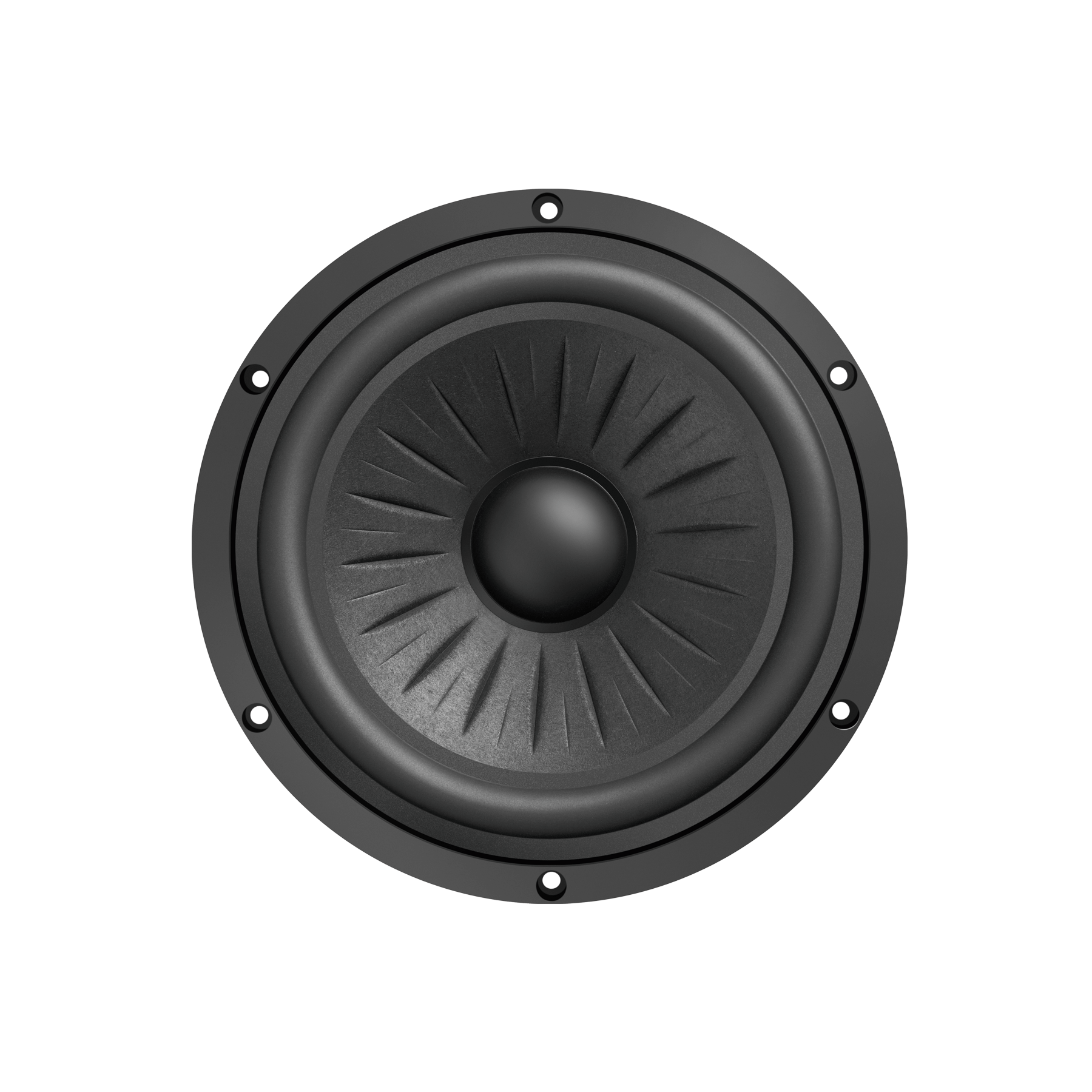

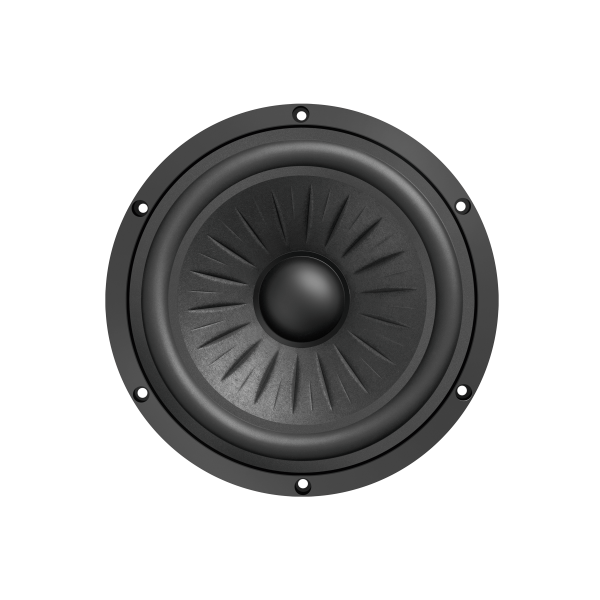

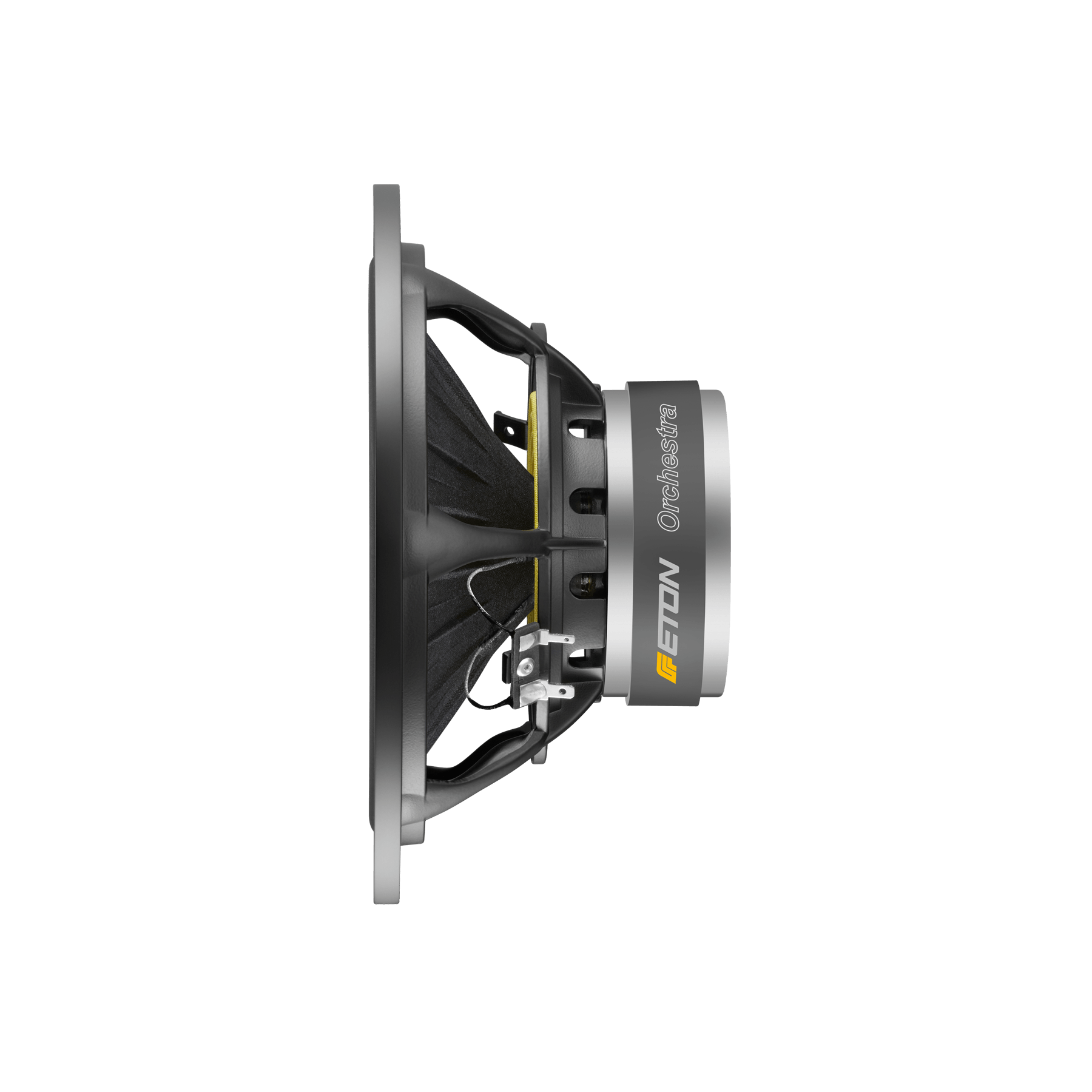

Eton 8-612/C8/32 RP

8“ long-stroke bass with serrated paper membrane geometry, soft and bulky sounding, impressive impulse behavior, well suited for bass-reflex design.

Specifications

• power handling = 80 W

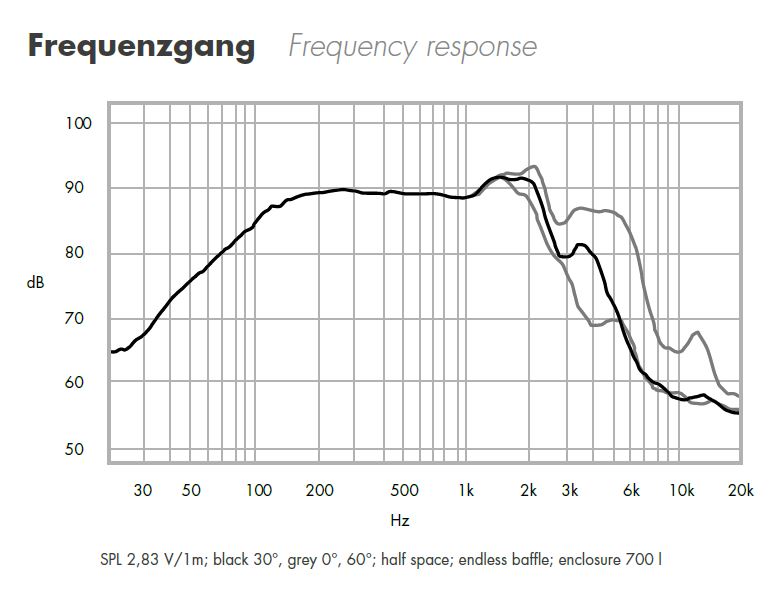

• frequency range = 40-2000 Hz
• resonance frequency fs = 24 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 90 dB (2,83V; 1m)
• DC resistance Re = 6,6 Ohm
• force factor BL = 9,3 N/A
• voice coil inductance L = 0,99 mH
• effective piston radiating area Sd = 222 cm²
• effective mechanical mass incl. air load mms = 26,3 g
• equivalent volume of compliance Vas = 100 l
• total Q factor Qts = 0,30 (Qms=6,67, Qes=0,32)
• voice coil diameter = 32 mm
• maximum peak linear excursion vibration x_lin = +/- 4,5 mm

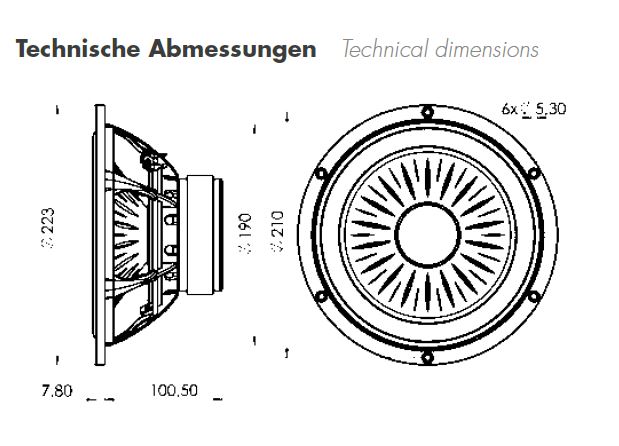

• mounting diameter d = 190 mm
• overall diameter d = 223 mm
• mounting depth (not countersunk) t = 100,5 mm
