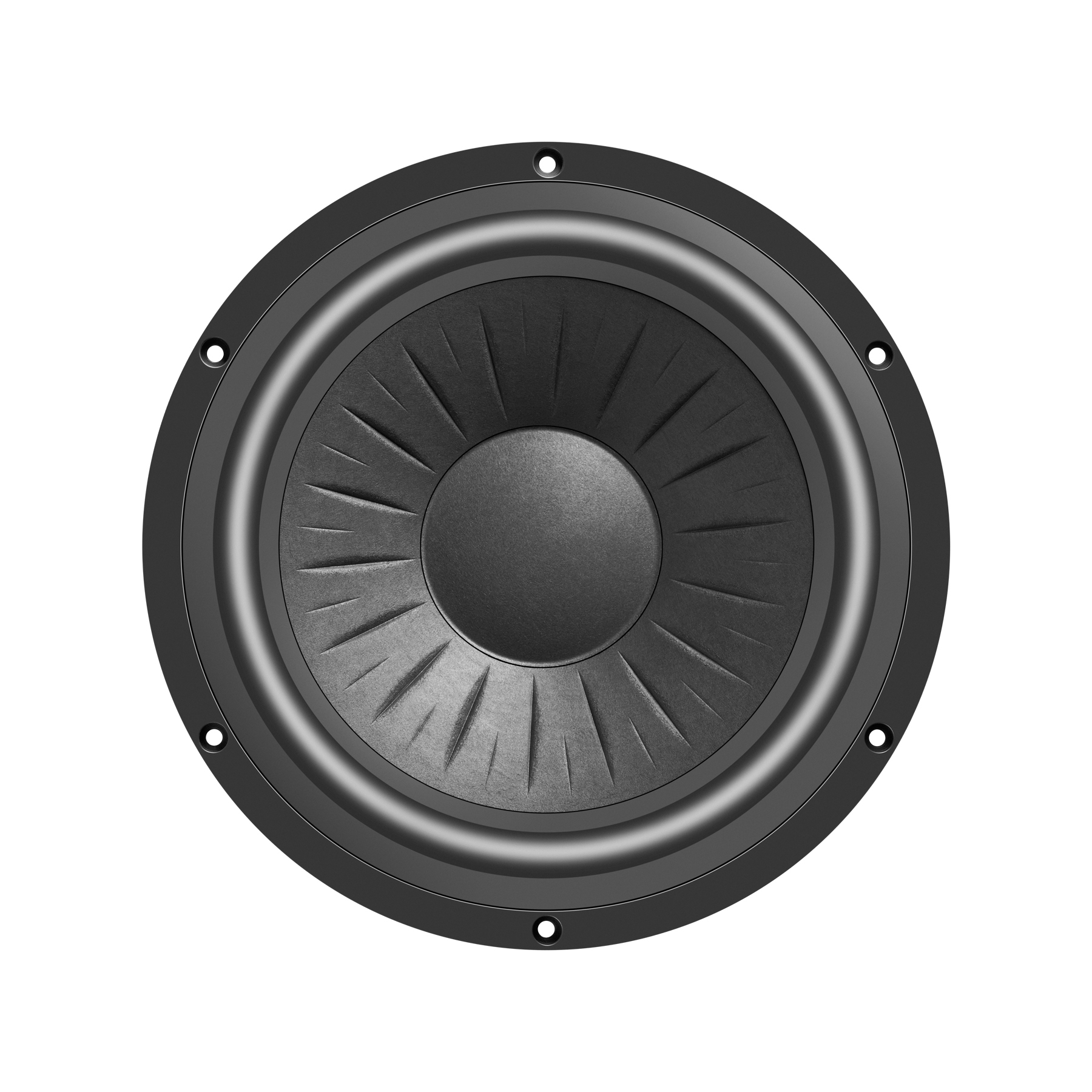

Classic 11“ bass-/midrange speaker for 3-way systems, serrated paper membrane geometry, very precise bass reprodruction also in deep frequencies, agile sound.
Specifications
power handling = 120 W

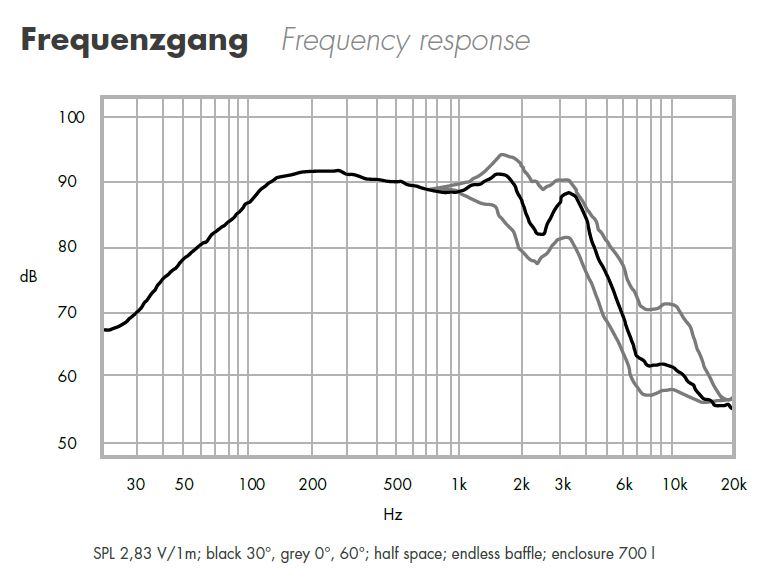

frequency range = 30-1000 Hz
resonance frequency fs = 23 Hz

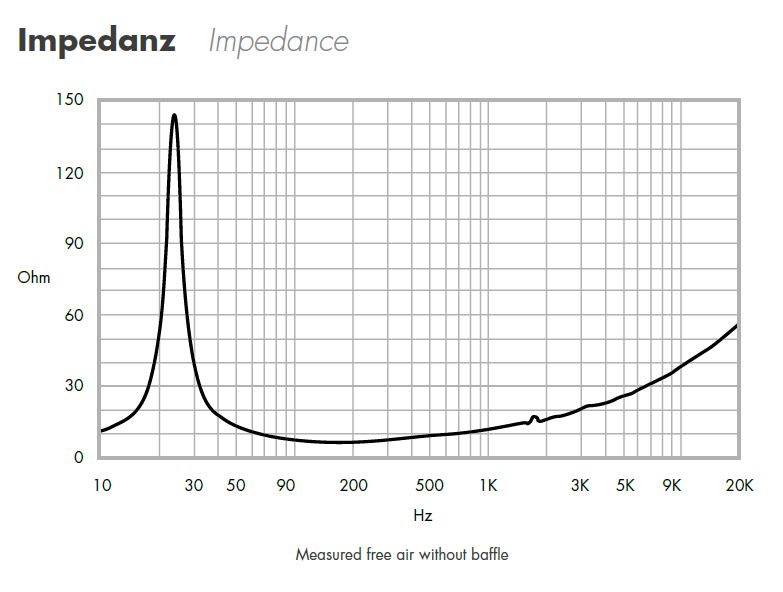

impedance R = 8 Ohm
sound pressure level SPL = 91 dB (2,83V; 1m)
DC resistance Re = 5,3 Ohm
force factor BL = 11,4 N/A
voice coil inductance L = 1,03 mH
effective piston radiating area Sd = 366 cm2
effective mechanical mass incl. air load mms = 54 g
equivalent volume of compliance Vas = 152 l
total Q factor Qts = 0,29 (Qms=7,87, Qes=0,30)
voice coil diameter = 50 mm
maximum peak linear excursion vibration xlin = +/- 5 mm
