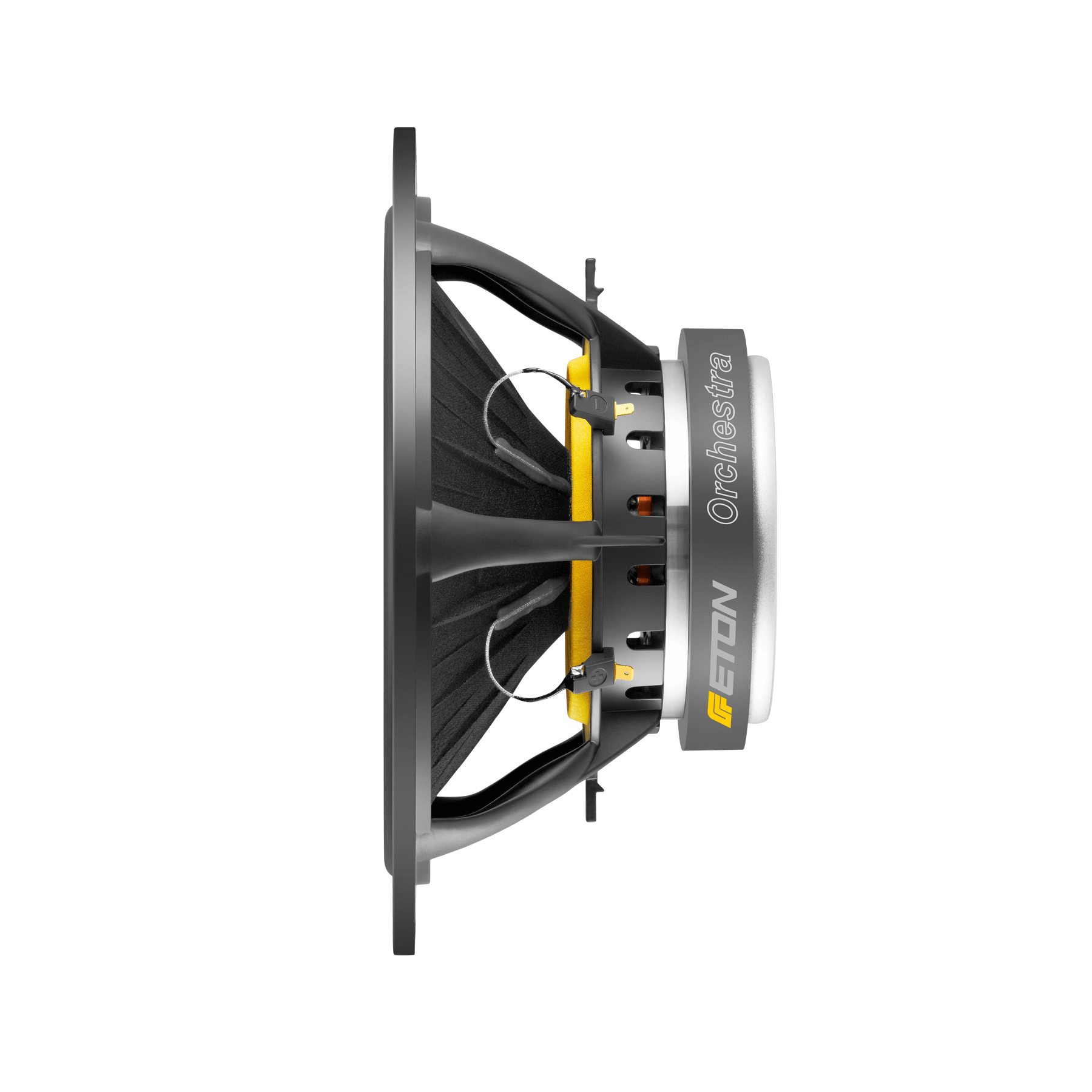

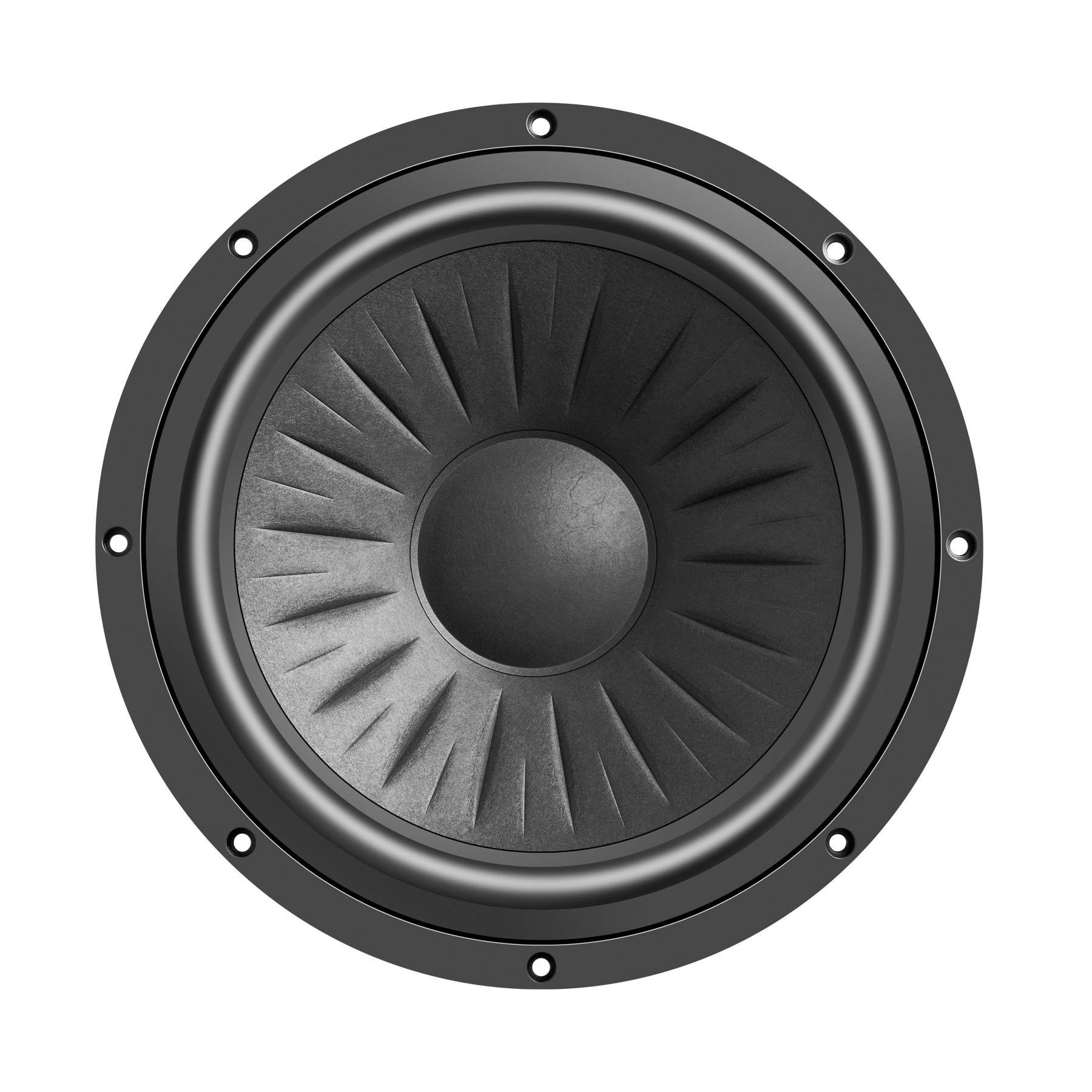

Classic 12“ bass-/midrange speaker for 3-way systems, serrated paper membrane geometry, very precise bass reprodruction also in deep frequencies, agile sound.
Specifications
power handling (continuous/programme) = 150 W
resonance frequency fs = 28 Hz

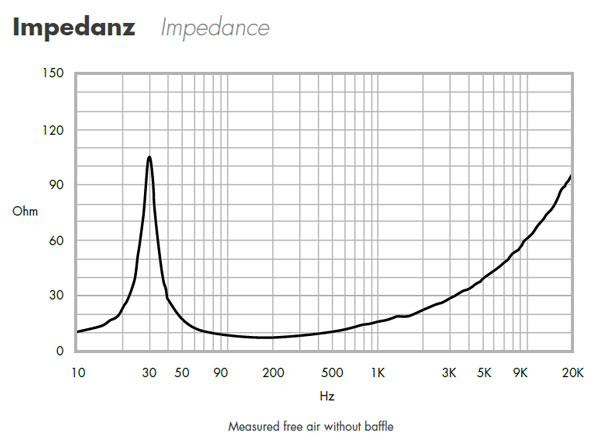

impedance R = 8 Ohm
sound pressure level SPL = 93 dB (2,83V; 1m)
DC resistance Re = 6,2 Ohm
force factor BL = 15,7 N/A
voice coil inductance L = 1,60 mH
effective piston radiating area Sd = 515 cm2
effective mechanical mass incl. air load mms = 78 g
equivalent volume of compliance Vas = 134l
total Q factor Qts = 0,32 (Qms=5,16, Qes=0,34)
voice coil diameter = 62 mm
maximum peak linear excursion vibration xlin = +/- 8,5 mm
