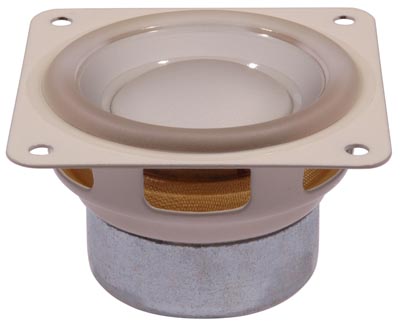

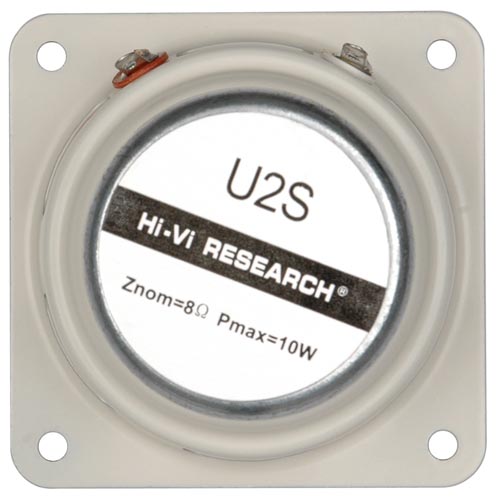

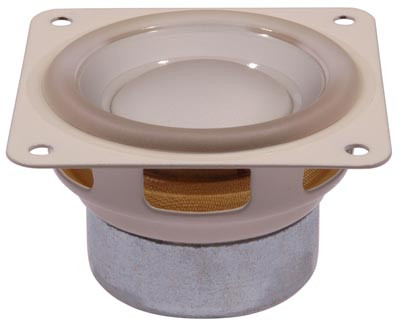

- Order number: hivi-u2s
-2 inches of a full frequency design;
-advanced alloy (aluminum) cone, coated with special damping material, and anodized; Specially made transparent high-instauration rubber surround(PU), the shape is beauty and generous.
-Optimum recovery CONEX supporting system, having very good stiffness and dynamic stability, improving the sonic features of the speakers
-High power handling, heat-resistant Kapton? Voice coil former and heat-resistant CCAW voice coil wire
-Finite Element Analysis for shielded magnetic system(NdFeB) with long-throw linear excursion design, broad dynamic range, having low distortion.
-Finite Element Analysis for flat and extremely rigid SPCC frame-prevents the parasitic structural resonances, improving the linear array of sound source
-Using leading technology of Small/Thiele parameters
-Suitable for midrange, surround speakers in a home theatre system, and also suitable for multimedia speakers
Specifications

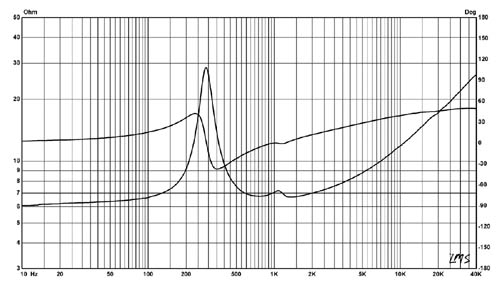

Nominal Impedance (Z)(Ω) : | 8 | |
Resonance Frequency (Fs)(Hz) : | 290 | |
Nominal Power Handling (Pnom)(W) : | 5 | |
Max Power Handling (Pmax)(W) : | 10 | |

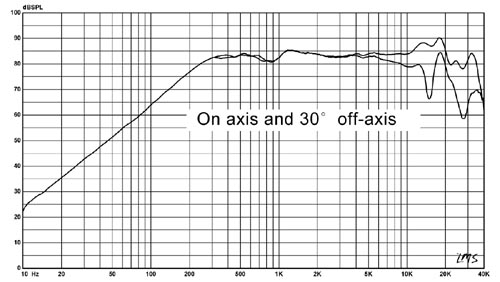

Sensitivity (2.83v/1m)(dB) : | 83 | |
Weight (M)(Kg) : | 0.1 | |
VC Diameter (mm) : | 25 | |
DC (Re)(Ω) : | 6.5 | |
VC Length (H)(mm) : | 6.0 | |
VC Former : | PESVCCAW | |
VC Frame : | Kapton | |
Magnet System : | Shielded | |
Magnet Former : | Neodymium | |
Force Factor (BL)(N/A) : | 3.0 | |
Gap Height (He)(mm) : | 2.5 | |
Linear Excursion (Xmax)(mm) : | 1.8 | |
Suspension Compliance (Cms)(uM/N) : | 261 | |
Mechanical Q (Qms) : | 5.17 | |
Electrical Q (Qes) : | 1.43 | |
Total Q (Qts) : | 1.12 | |
Moving Mass (Mms)(g) : | 1.2 | |
Effective Piston Area (Sd)(m2) : | 0.0013 | |
Equivalent Air Volume (Vas)(L) : | 0.1 | |
Cabinet Type : | Sealed | |
Recommended Box Volume(Vb)(L) : | 0.2 | |
-3dB Cut-Off Frequency(F3)(Hz) : | 245 |
