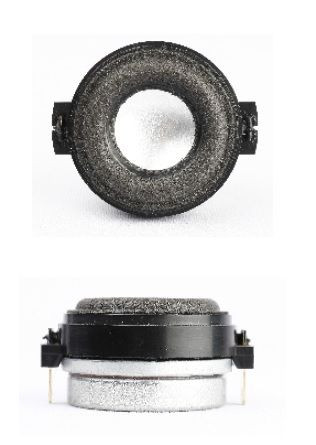

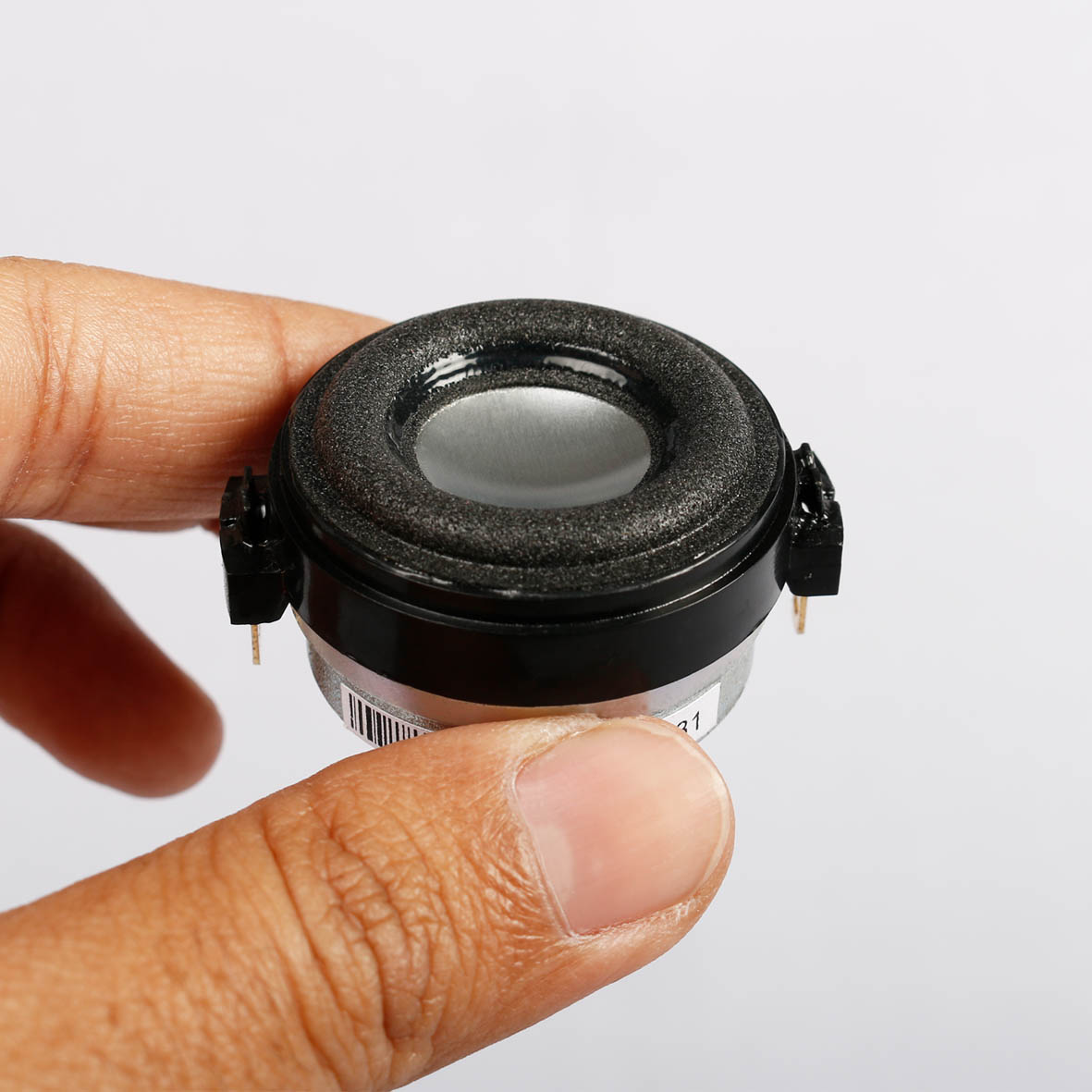

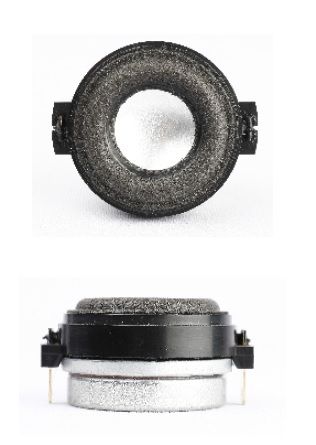

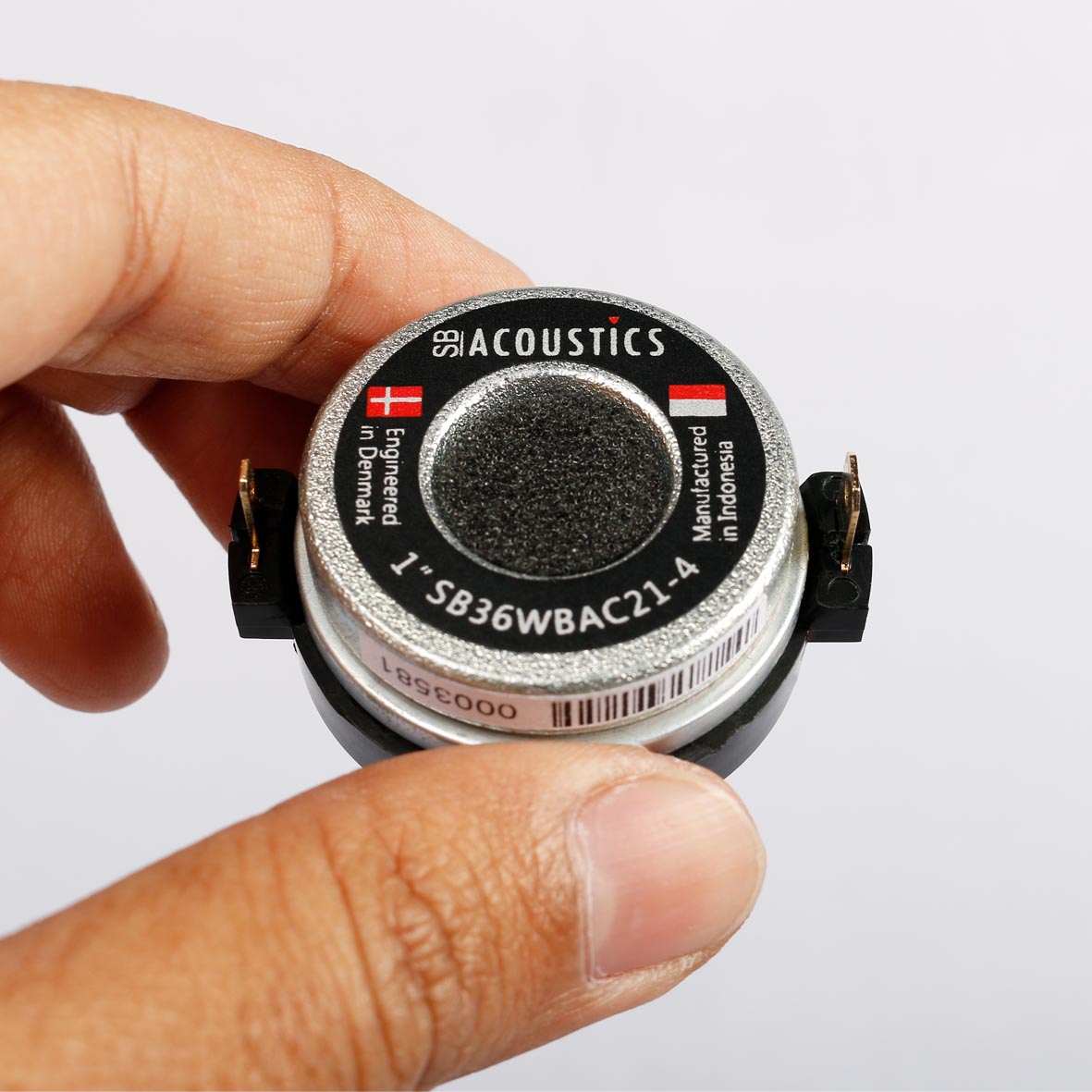

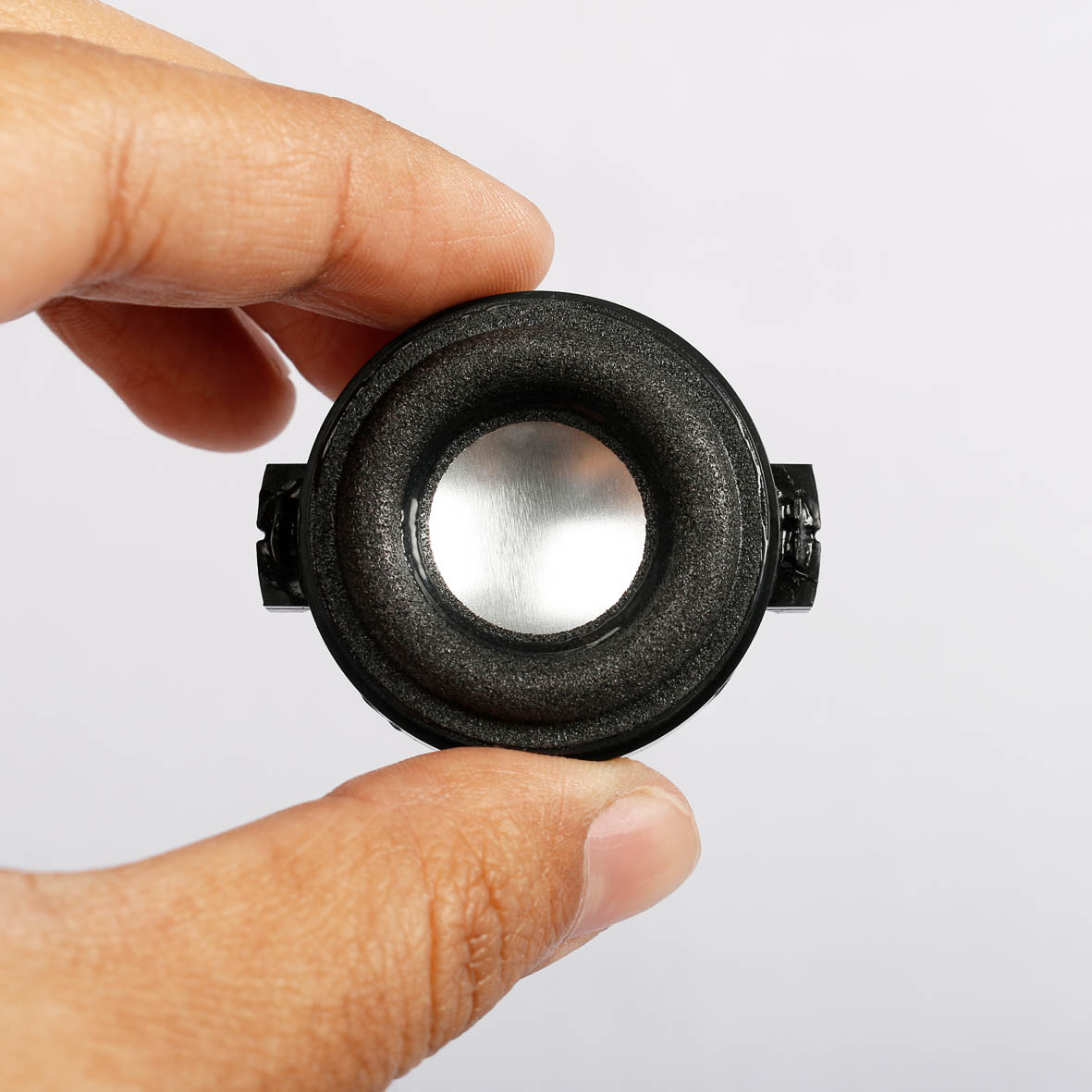

SB Acoustics SB36WBAC21-8

SB Acoustics SB36WBAC21-8 1" Fullrange

• Long stroke low damping surround
• Vented low compression design
• Resonance and break-up control
• Low resonance frequency
• Prepared for rear mounting
• Long life silver lead wires

Specifications

• resonance frequency fs = 160 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 75 dB (2,83V; 1m)
• DC resistance Re = 5,8 Ohm
• force factor BL = 2,1 N/A
• voice coil inductance L = 0,13 mH
• effective piston radiating area Sd = 4,2 cm²
• effective mechanical mass incl. air load mms = 0,7 g
• total Q factor Qts = 0,6 (Qms=1,75, Qes=0,92)
• voice coil diameter = 20,4 mm
• maximum peak linear excursion vibration x_lin = +/- 1,8 mm

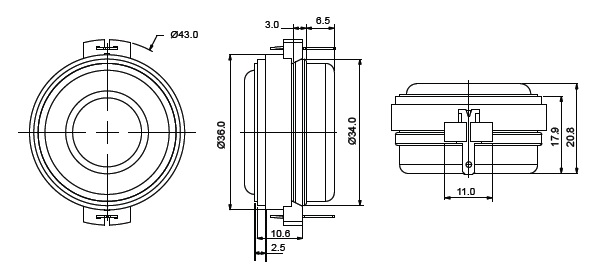

• overall diameter d = 36 mm
• mounting depth (not countersunk) t = 20,8 mm
