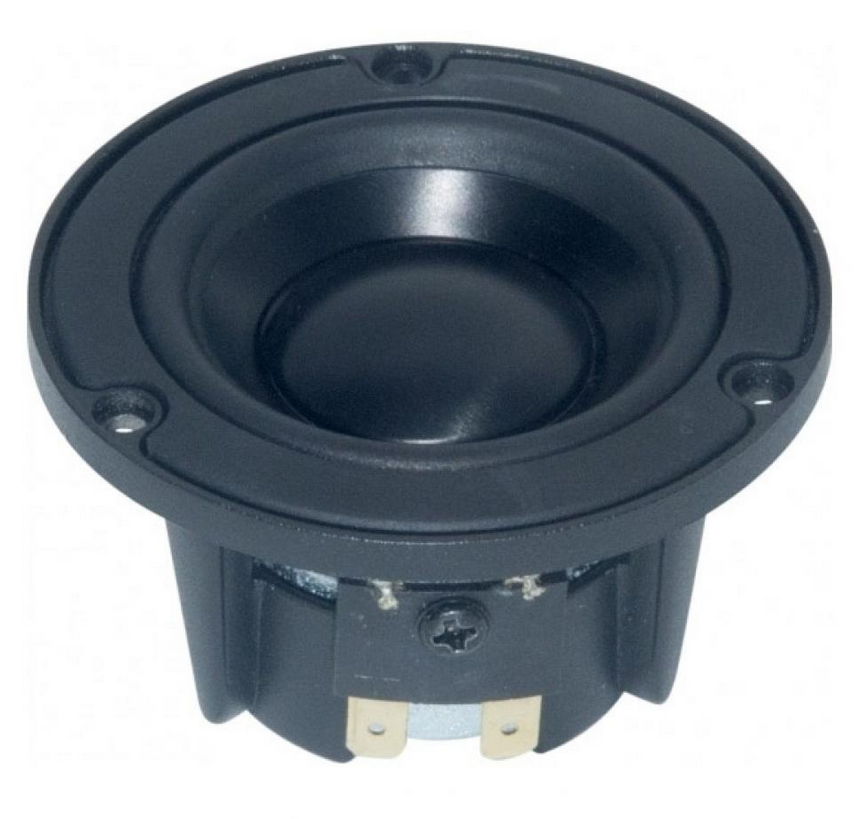

Vifa's NE Series full-range drivers feature an innovative sculpted, open cast aluminum basket design that minimizes internal acoustic reflections and acts as the neodymium motor's heatsink. The cone is aluminum, with a butyl rubber surround designed by finite element analysis for linearity of performance. FEA techniques also contribute to the motor's copper cap, which reduces inductance and extends high frequency performance.
Specifications:
*Power handling: 20 watts RMS/40 watts max
*VCdia: 25mm
*Le: 0.04 mH
*Impedance: 4 ohms
*Re: 3.8 ohms
*Frequency range: 80-15,000 Hz
*Fs: 97 Hz
*SPL: 86.3 2.83V/1m
*Vas: 1.22 l.
*Qms: 10.7
*Qes: 0.75
*Qts: 0.70
*Xmax: 1.65 mm

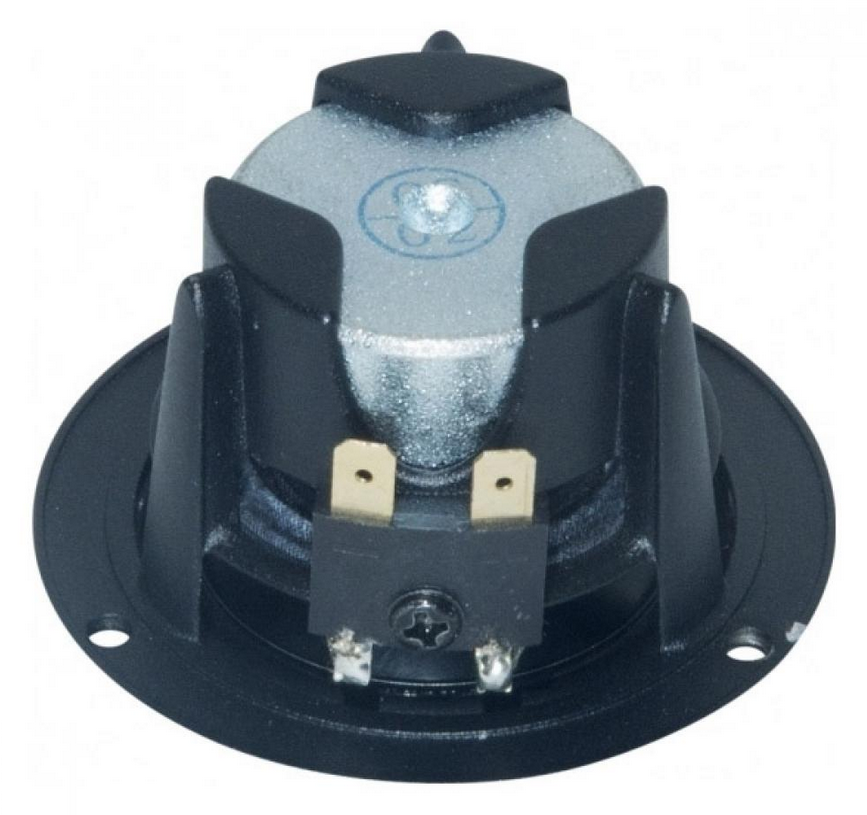

Cast aluminum frame acts as a heatsink
Sculpted design promotes cooling and reduces reflections
