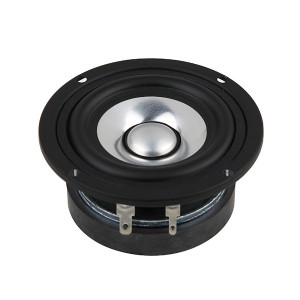

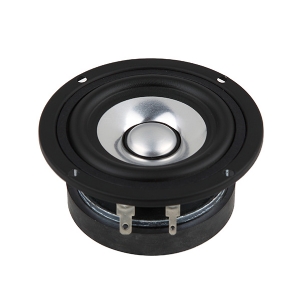

Fountek FE85

Fountek
Preview: Fountek FE85 Preview: Fountek FE85 charts Preview: Fountek FE85 dimensions
Fountek FE85

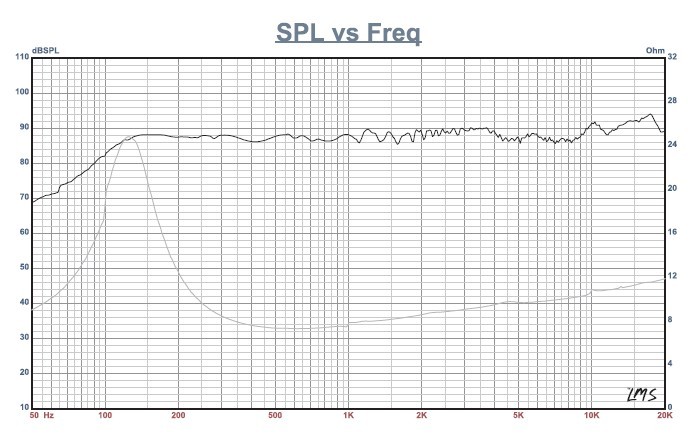

Fountek FE85 charts

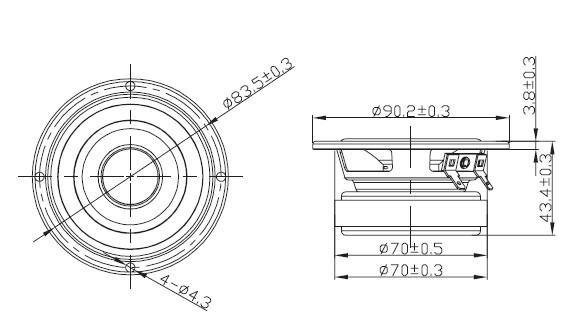

Fountek FE85 dimensions

€37.51 *

Prices incl. VAT plus shipping costs

Delivery time appr. 1-3 workdays

  • Order number: 1420060
Description Evaluations 0
Description
-aluninum cone -20mm voice coil -smooth frequency response ... more
Close menu
Product information "Fountek FE85"

-aluninum cone
-20mm voice coil
-smooth frequency response
-low distortion, fast transient
-designed for multimedia system



Specifications

  • power handling (continuous/programme) = 12 W
  • frequency range = 100-25000 Hz
  • resonance frequency fs = 125 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 85,7 dB (2,83V; 1m)
  • DC resistance Re = 6 Ohm
  • force factor BL = 3,71 N/A
  • effective piston radiating area Sd = 27 cm2
  • effective mechanical mass incl. air load mms = 2,07 g
  • equivalent volume of compliance Vas = 0,85 l
  • total Q factor Qts = 0,51 (Qms=2,13, Qes=0,67)
  • voice coil diameter = 20 mm
  • maximum peak linear excursion vibration xlin = +/- 1,5 mm
  • mounting diameter d = 70 mm
  • overall diameter d = 83,5 mm
  • mounting depth (not countersunk) t = 43,7 mm
  • mass m = 0,47 kg
