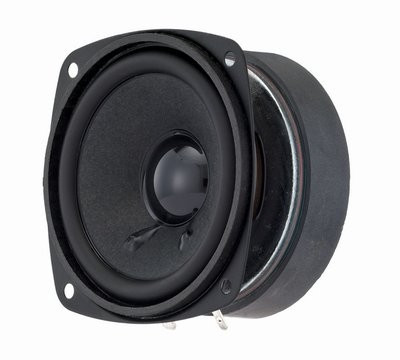

Visaton FRS 8 M 8Ohm

Visaton FRS 8 M  8Ohm

8 cm (3.3") HiFi fullrange speaker with high
force factor and good sensitivity. Special developed for use in column-speakers and
small bass-reflex cabinets, e.g. in miniature subwoofer / satellite
systems.

Typical applications :
- Column speakers
- Mini hi-fi systems

Attributes :
- Moisturised cone
- Metal basket

Specifications

• power handling (continuous/programme) = 30/50 W

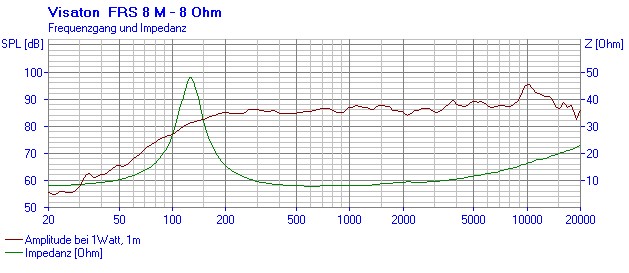

• frequency range = 100-20000 Hz
• resonance frequency fs = 125 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 88 dB (2,83V; 1m)
• force factor BL = 4 N/A
• voice coil inductance L = 0,3 mH
• effective piston radiating area Sd = 29 cm²
• effective mechanical mass incl. air load mms = 1,8 g
• equivalent volume of compliance Vas = 1,1 l
• total Q factor Qts = 0,49 (Qms=3,24, Qes=0,58)
• voice coil diameter = 20 mm

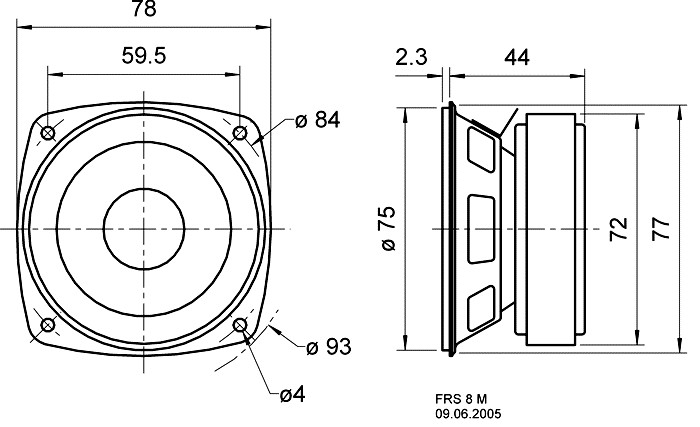

• mounting diameter d = 77 mm
• overall diameter d = 84 mm
• mounting depth (not countersunk) t = 46,3 mm
