Tangband W4-655F

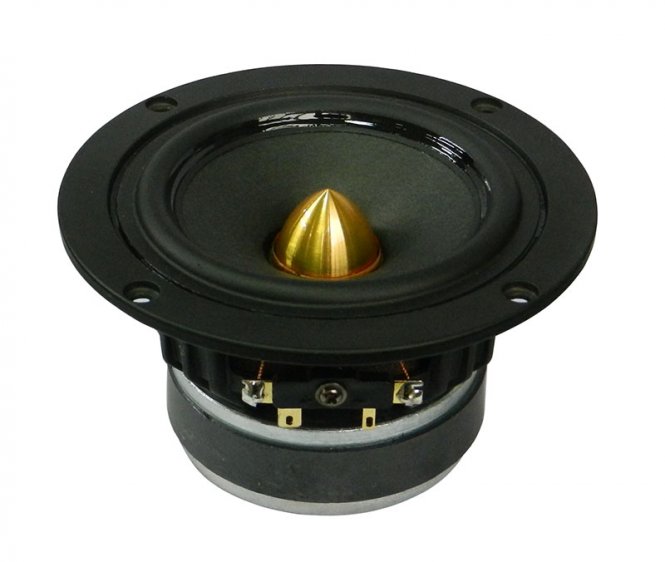

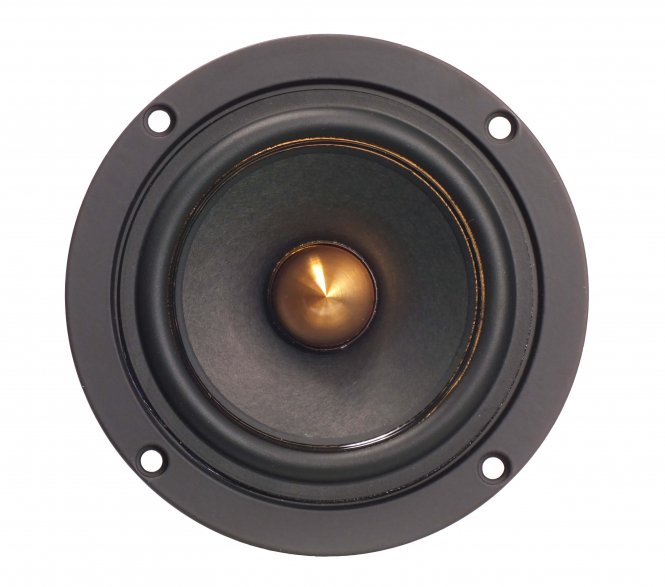

Tangband W4-655C, fullrange with paper cone and aluminum phase plug. Use in Tml or BR. Also usefull as bass-mid driver.

• Full range design
• Aluminum basket
• Paper cone with rubber surround
• Ccaw with kapton bobbin
• Alum. phase plug

Specifications

• power handling (continuous/programme) = 40/80 W
• frequency range = 70-14000 Hz
• resonance frequency fs = 70 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 89 dB (2,83V; 1m)
• DC resistance Re = 6 Ohm
• force factor BL = 5,73 N/A
• voice coil inductance L = 0,43 mH
• effective piston radiating area Sd = 57 cm²
• effective mechanical mass incl. air load mms = 4 g
• equivalent volume of compliance Vas = 5,09 l
• total Q factor Qts = 0,32 (Qms=4,35, Qes=0,35)
• voice coil diameter = 25 mm
• maximum peak linear excursion vibration x_lin = +/- 1,5 mm
• mounting diameter d = 95 mm
• overall diameter d = 126 mm
