Tangband W4-1337SDF

This product is currently not available.
€87.00 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • tbW4-1337sdf
Tang Band W4-1337SD 4" Titanium Driver This high-quality full range 4" driver utilizes a... more
Product information "Tangband W4-1337SDF"

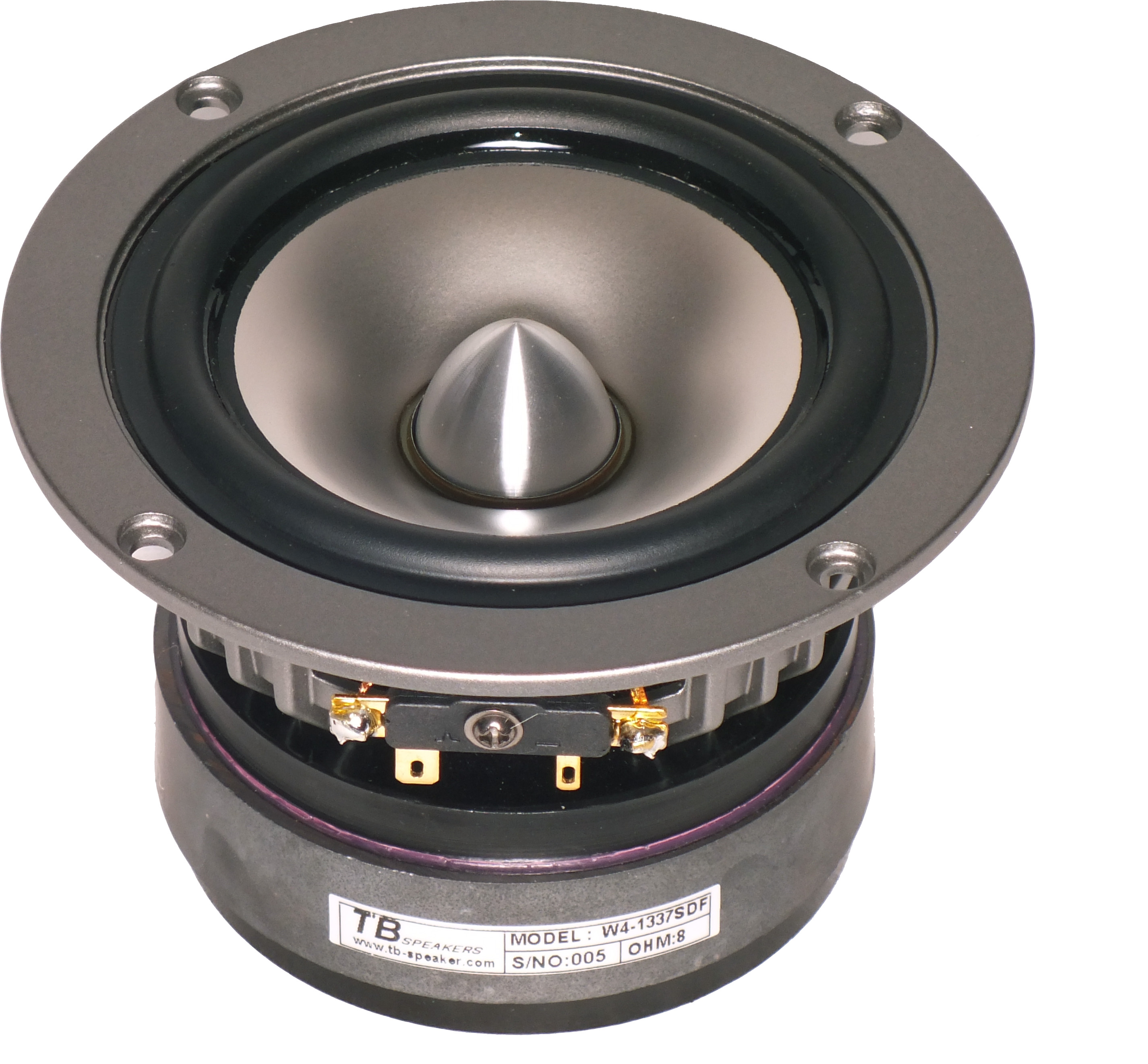

Tang Band W4-1337SD 4" Titanium Driver

This high-quality full range 4" driver utilizes a titanium cone, solid aluminum phase plug, santoprene rubber surround, underhung coil, and large shielded motor structure. It offers high power handling, good mechanical excursion abilities, and strong bass performance for a driver of this size. Great for home theater or hi-fi midbass applications.



Specifications

  • power handling (continuous/programme) = 25/50 W
  • frequency range = 70-20000 Hz
  • resonance frequency fs = 70 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 87 dB (2,83V; 1m)
  • DC resistance Re = 6,8 Ohm
  • force factor BL = 5,37 N/A
  • voice coil inductance L = 0,015 mH
  • effective piston radiating area Sd = 57 cm2
  • effective mechanical mass incl. air load mms = 4,61 g
  • equivalent volume of compliance Vas = 0,37 l
  • total Q factor Qts = 0,37 (Qms=1,51, Qes=0,49)
  • voice coil diameter = 25,4 mm
  • maximum peak linear excursion vibration xlin = +/- 3 mm
  • mounting diameter d = 95,5 mm
  • overall diameter d = 125,5 mm
  • mounting depth (not countersunk) t = 69,3 mm
