Visaton B 100 8 Ohm

Visaton B 100 8 Ohm

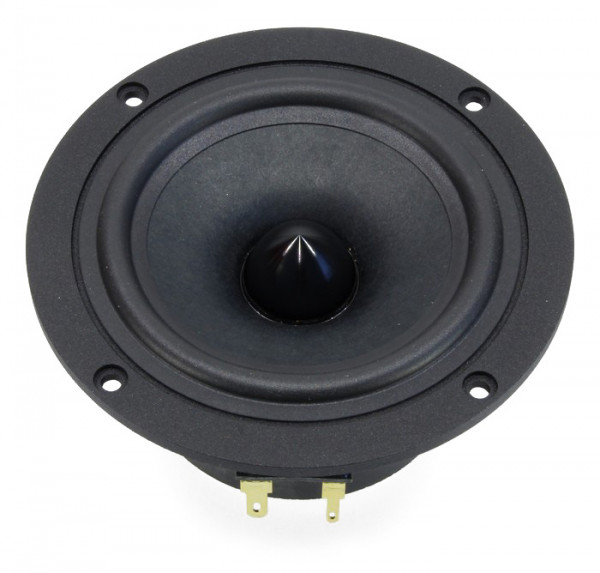

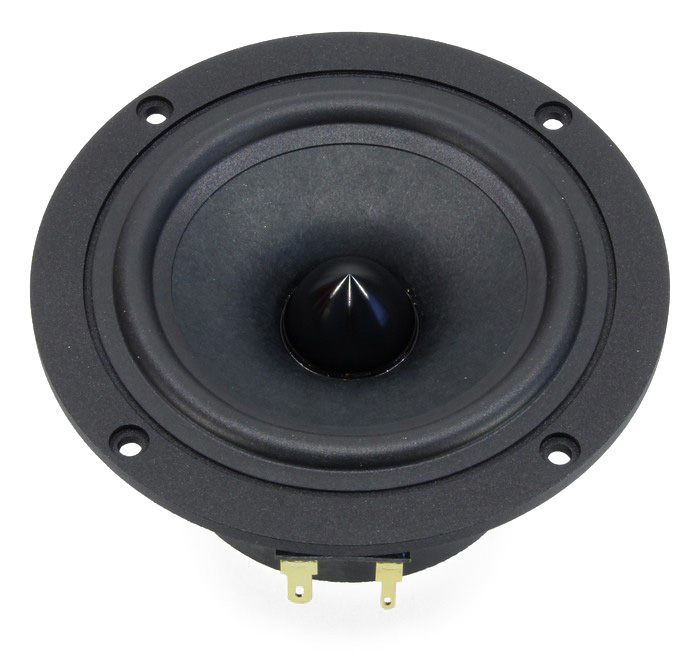

10 cm (4") high-end full-range loudspeaker with excellent balanced response characteristics and slightly increasing high-range for a pleasant sound even outside of 0-axis. High efficiency with low distortion are just some of the qualities of this speaker.

Technical Data:

• power handling (continuous/programme) = 30/60 W

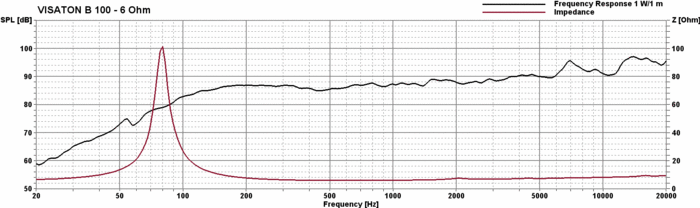

• frequency range = 40-18000 Hz
• resonance frequency fs = 80 Hz
• impedance R = 6 Ohm
• sound pressure level SPL = 88 dB (2,83V; 1m)
• DC resistance Re = 5.8 Ohm
• force factor BL = 4.1 N/A
• voice coil inductance L = 0,36 mH
• effective piston radiating area Sd = 54.1 cm²
