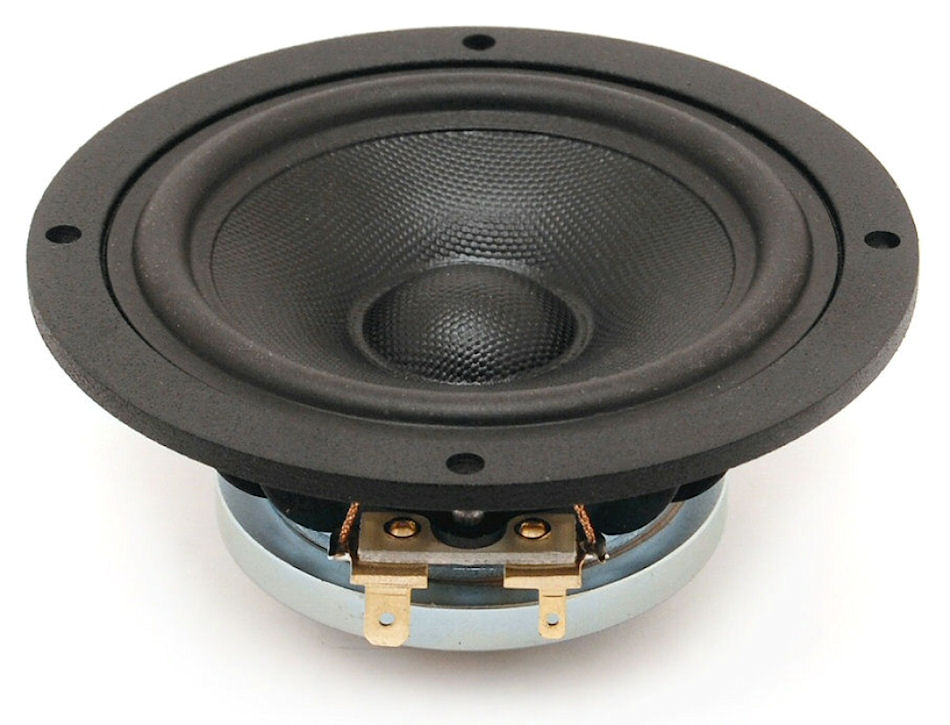

The Scan-Speak 10F/4424G00 Discovery 4" Widerange is designed for the discerning audiophile customer. To meet the needs of this audience, several new technologies were developed with the goal of lowering distortion and damping in the speaker. The coated fiberglass cone reduces vibration and standing waves, and the vented motor system minimizes power compression. The combined result is a very open and dynamic sound.
Aluminium Chassis
Fiber Glass cone
NR rubber surround
Neodynium Magnet
Copper cap on the pole piece
Specifications
power handling (continuous/programme) = 15/30 W

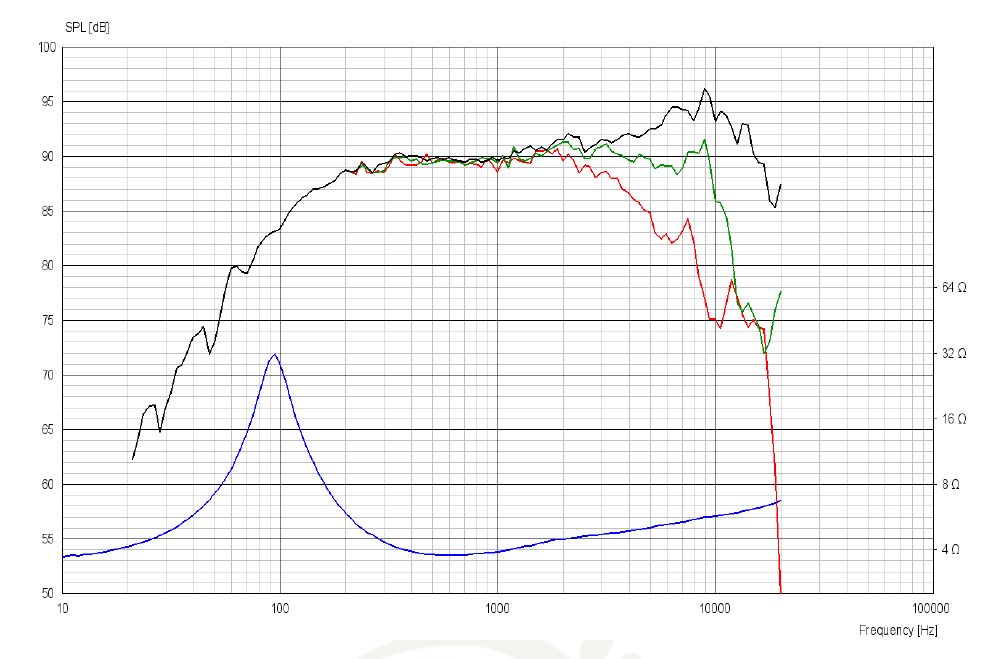

frequency range = 100-22000 Hz
resonance frequency fs = 90 Hz
impedance R = 4 Ohm
sound pressure level SPL = 89,76 dB (2,83V; 1m)
DC resistance Re = 3,2 Ohm
force factor BL = 3,9 N/A
voice coil inductance L = 0,1 mH
effective piston radiating area Sd = 36 cm2
effective mechanical mass incl. air load mms = 2,8 g
equivalent volume of compliance Vas = 2 l
total Q factor Qts = 0,29 (Qms=3,2, Qes=0,32)

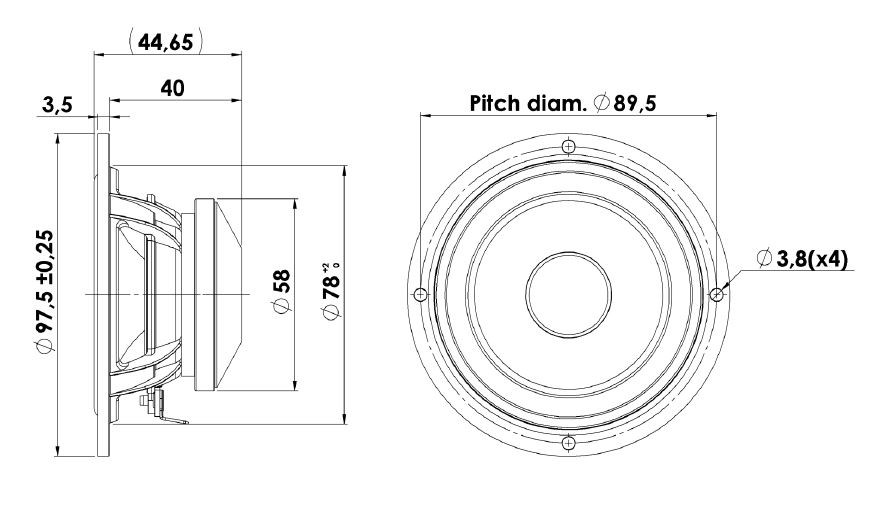

voice coil diameter = 20 mm
maximum peak linear excursion vibration xlin = +/- 2,6 mm
