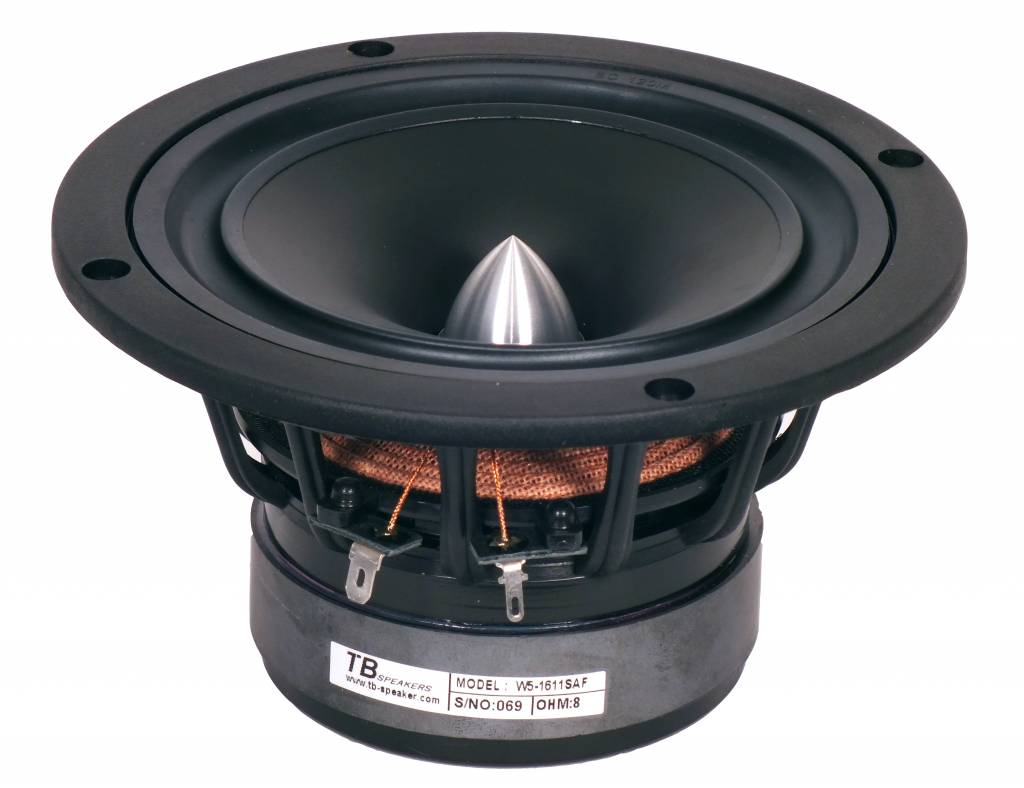

The Tang Band W5-1611SAF 5" speaker has a fiberglass-reinforced nylon frame, black polypropylene cone, and wide temperature range/high-loss rubber surround. An underhung 1" voice coil provides linear travel and the aluminum pole piece phase plug improves dispersion. The W5-1611SAF's extremely smooth, extended frequency response makes it suitable for a variety of applications, including full-range point source loudspeaker systems, line arrays, and midrange duty.
Specifications:
power handling (continuous/programme) = 28/56 W
frequency range = 60-20000 Hz
resonance frequency fs = 60 Hz
impedance R = 8 Ohm
sound pressure level SPL = 90 dB (2,83V; 1m)
DC resistance Re = 6,3 Ohm
force factor BL = 5,53 N/A
voice coil inductance L = 0,023 mH
effective piston radiating area Sd = 94 cm2
effective mechanical mass incl. air load mms = 5,99 g
equivalent volume of compliance Vas = 11,69 l
total Q factor Qts = 0,44 (Qms=2,8, Qes=0,52)
voice coil diameter = 25,4 mm
maximum peak linear excursion vibration xlin = +/- 3 mm
