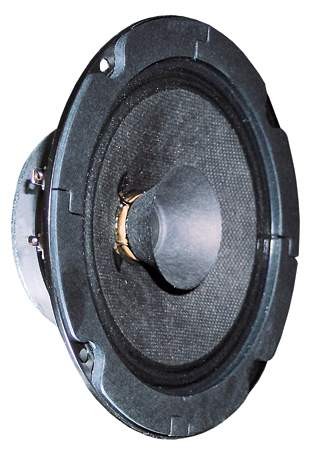

Visaton BG 13 P

Visaton BG 13 P 8 Ohm

13 cm (5") full-range speaker with tweeter
dome. Very evenly spread frequency response and excellent voice reproduction
quality. High level of efficiency. For use in larger scale PA arrays or in
smaller monitor speakers.

Typical applications:
- PA arrays, projection speakers
- smaller monitor speakers

Specifications

• power handling (continuous/programme) = 20/40 W

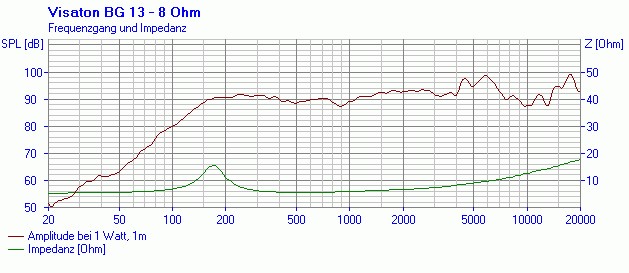

• frequency range = 150-20000 Hz
• resonance frequency fs = 170 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 92 dB (2,83V; 1m)
• voice coil diameter = 20 mm

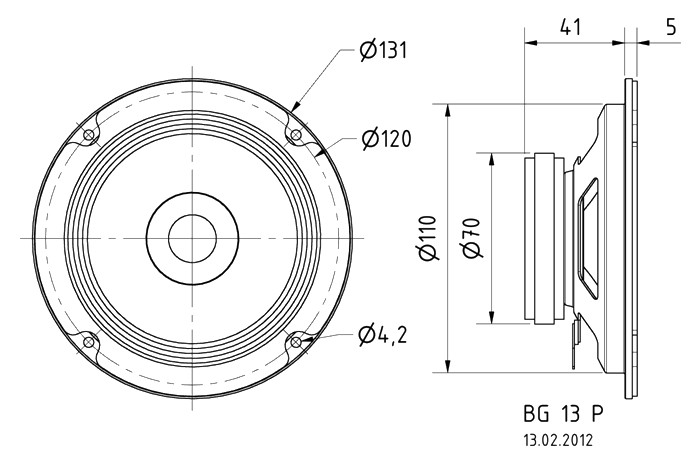

• mounting diameter d = 108 mm
• overall diameter d = 131 mm
• mounting depth (not countersunk) t = 45 mm
