Gradient AX-05

Gradient
Preview: Gradient AX-05 Preview: Gradient AX-05 curve Preview: Gradient AX-05 impedance Preview: Gradient AX-05 waterfall

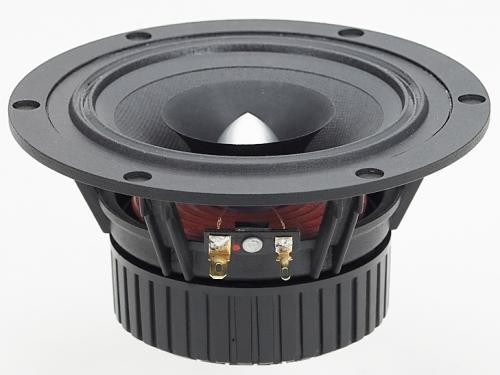

Gradient AX-05

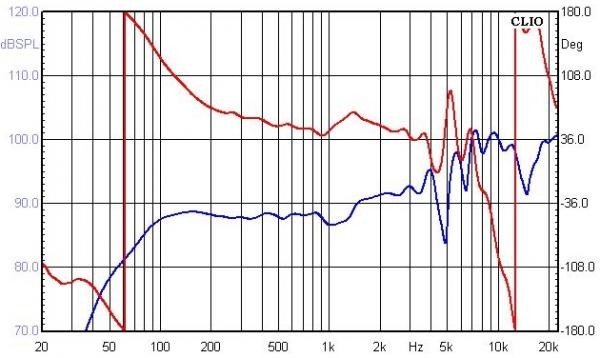

Gradient AX-05 curve

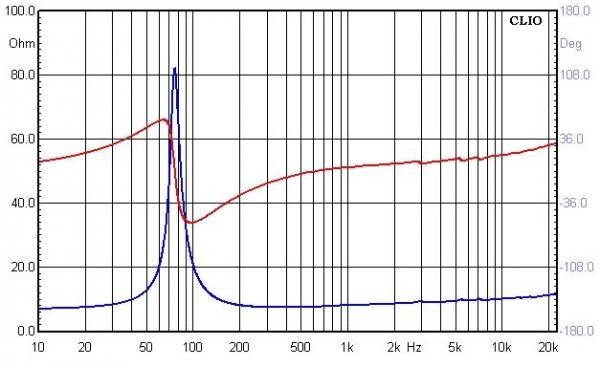

Gradient AX-05 impedance

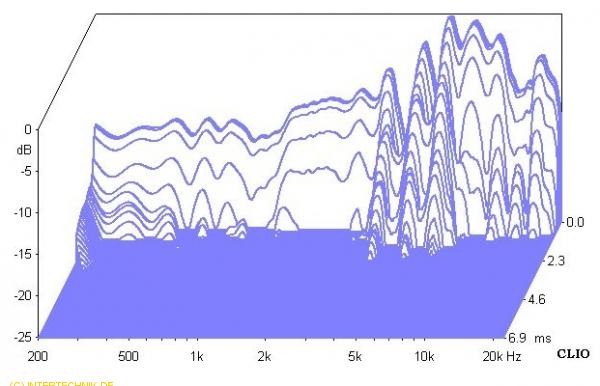

Gradient AX-05 waterfall

€47.40 *

Prices incl. VAT plus shipping costs

Delivery time appr. 1-3 workdays

  • Order number: 1381650
Description Evaluations 0
Description
5" Fullrange Loudspeaker   Cone Kevlar-Paper Surround material Tissue Basket... more
Close menu
Product information "Gradient AX-05"

5" Fullrange Loudspeaker



  • Cone Kevlar-Paper
  • Surround material Tissue
  • Basket material Aluminium
  • Magnet material Ferrite



Specifications

  • SPL (1W/1M) 89,3
  • fs 68 Hz
  • VAS 10,7 L
  • QMS 5,46
  • QES 0,62
  • QTS 0,56
  • Re 6 Ω
  • Sd 85 cm2
  • Cms 1,06 μm/N
  • Mms 5,2 g
  • LE 0,08 VC/mH
  • BL 4,6 (NA) (F/I)
  • Voice coil diameter 25 mm
  • Voice coil former capton
  • Outside diameter 151 mm
  • Build in hole diameter 124 mm
  • Build in depth 89,3 mm
