Preview: Monacor SPH-60X

Preview: Monacor SPH-60X

Preview: Monacor SPH-60X

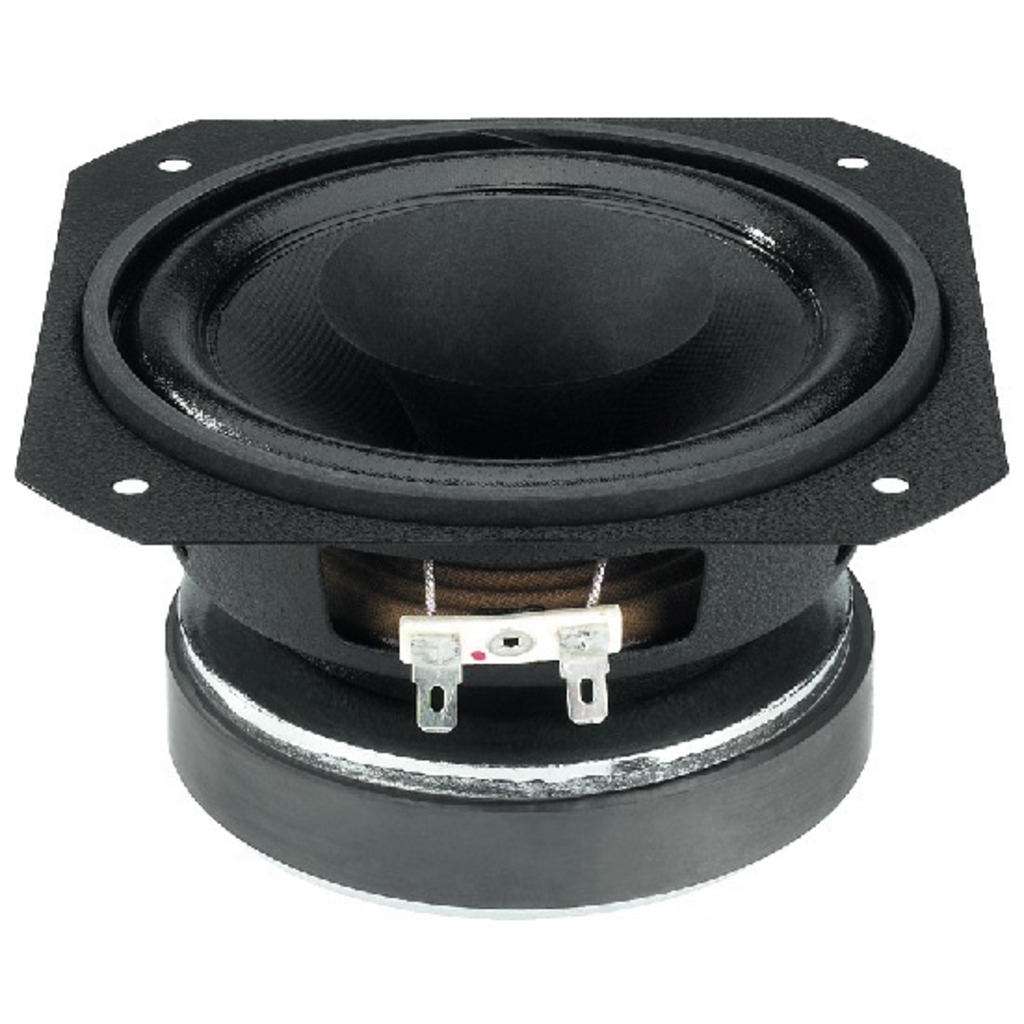

Monacor SPH-60X

Monacor SPH-60X

Monacor SPH-60X

€36.60 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

Order number: mon-sph-60x

Full range speaker, 60 W MAX , 30 W RMS , 8 Ω Drilled pole core Very... more

Product information "Monacor SPH-60X"

Full range speaker, 60 W_MAX, 30 W_RMS, 8 Ω

Drilled pole core

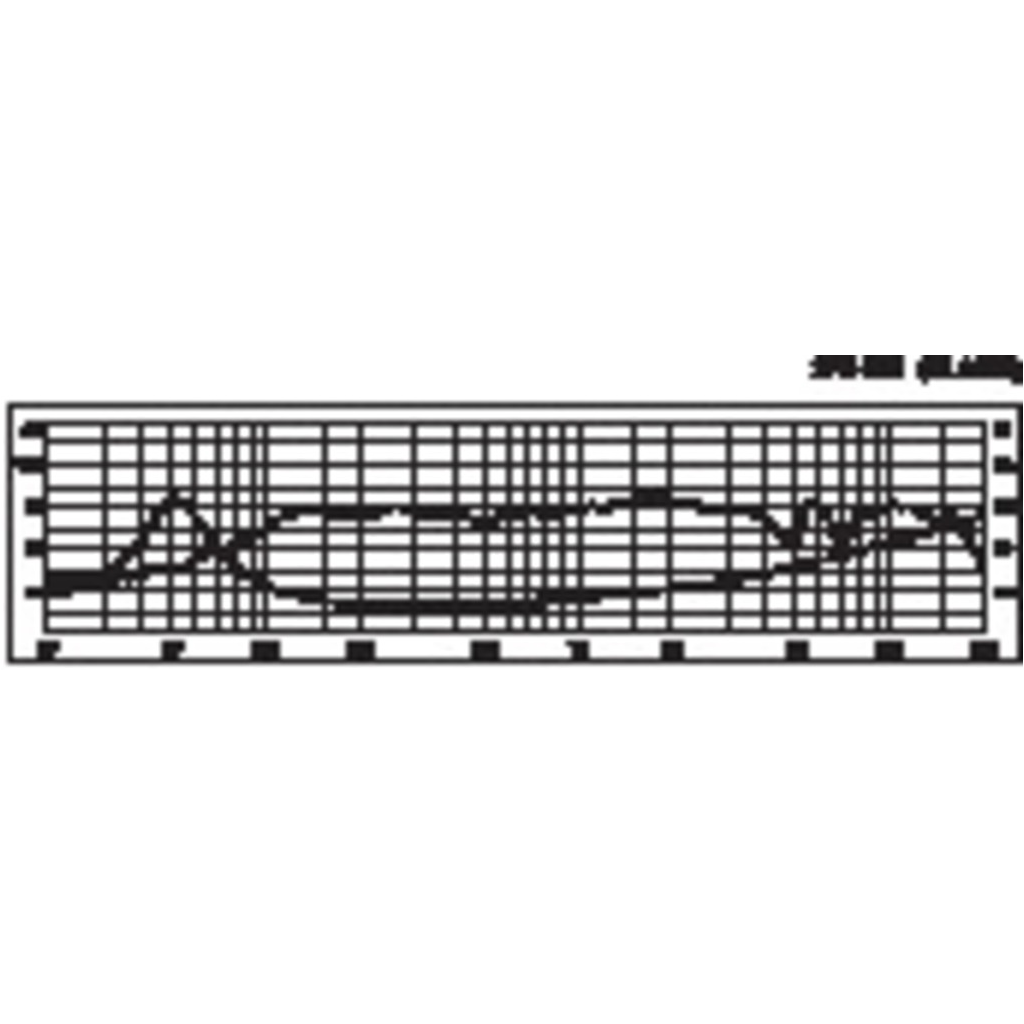

Very good frequency response linearity also in the high frequency range
For general applications
Speaker from the successful building concepts CT193 and CT194 of the magazine Klang+Ton

Specifications

Impedance (Z) 8Ω
Resonant frequency (fs) 60Hz
Max. frequency range f3-20,000Hz
Music power 60WMAX
Power rating (P) 30WRMS
SPL (1W/1m) 89dB
Suspension compl. (Cms) 1.19mm/N
Moving mass (Mms) 5.9g
Mech. Q factor (Qms) 2.17
Electr. Q factor (Qes) 0.53
Total Q factor (Qts) 0.42
Equivalent volume (Vas) 9 l
DC resistance (Re) 6.2Ω
Force factor (BxL) 5.1Tm
Voice coil induct. (Le) 0.4mH
Voice coil diameter 25.5mm
Voice coil former aluminium
Linear excursion (XMAX) ±1.3mm
Eff. cone area (Sd) 80cm2
Magnet weight 13oz.
