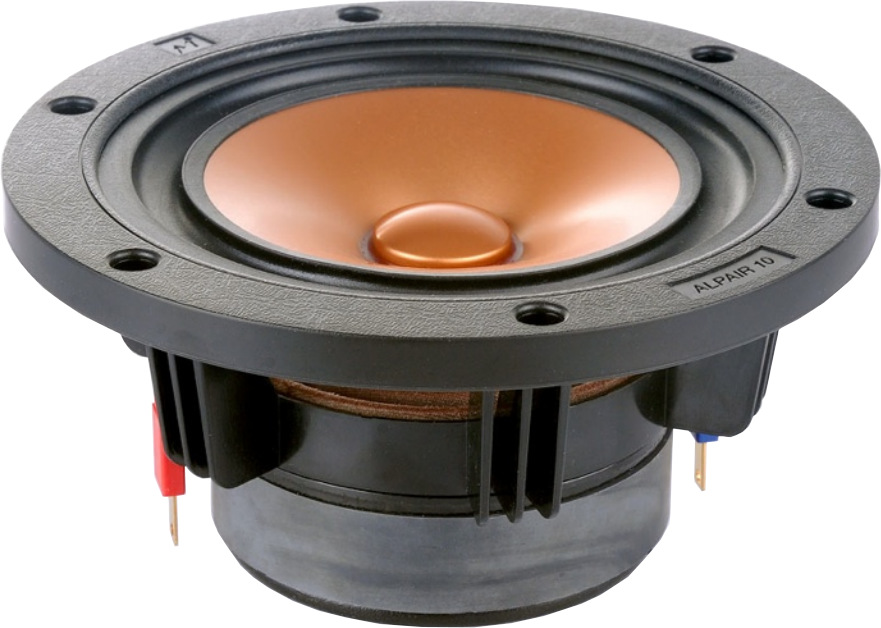

Product information "Markaudio Alpair 10M Gen3 Gold"

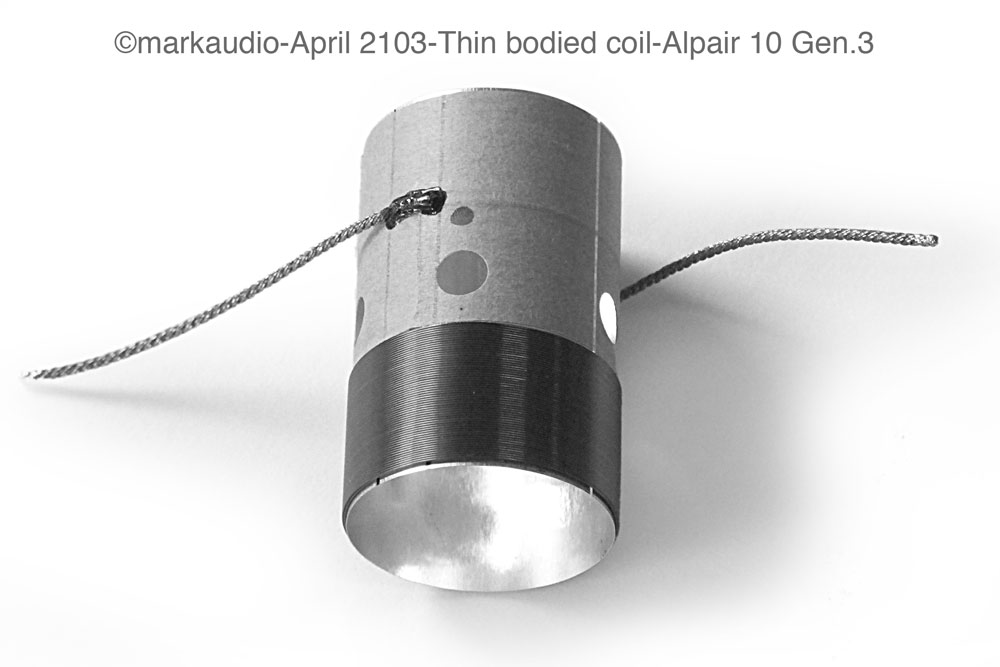

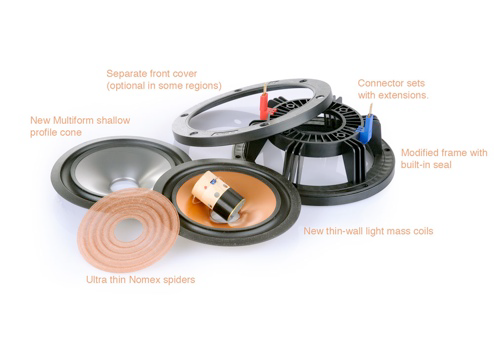

This Alpair 10 Gen.3 is the latest model in a development line designed to extend the performance of mid-sized Markaudio full-range emitters. This generation of Alpair 10 utilises a new ultra thin wall coil. Together with a new modification to its cone, this latest model delivers usable frequency range up to 25-kHz while retaining the “purist” single-cone design. This driver retains the Multi-form cone technology with a new more efficient profile giving improved high range performance. Additional features include an advanced Nomex superlight rear suspension (spider). The Alpair 10‘s frame is formed from a new mix of polymers making it 5% stiffer than the old model. The Gen.3 version houses an “Arrestor” in its magnetic motor sub-assembly, helping to avoid damage from over-load situations.
Specifications
power handling (continuous/programme) = 35 W
frequency range = 40-21000 Hz
resonance frequency fs = 38,3 Hz

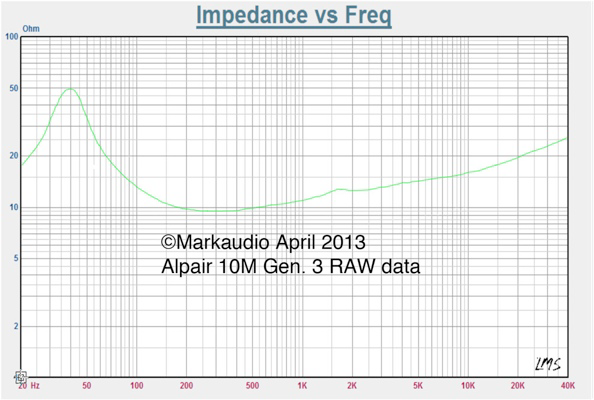

impedance R = 8 Ohm

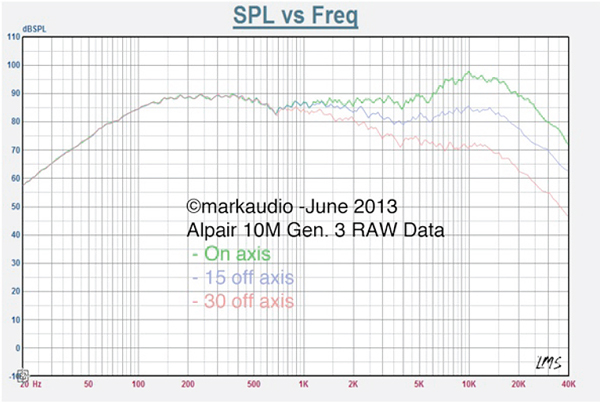

sound pressure level SPL = 88 dB (2,83V; 1m)
DC resistance Re = 7,2 Ohm
force factor BL = 5,77 N/A
voice coil inductance L = 0,07 mH
effective piston radiating area Sd = 88,25 cm2
effective mechanical mass incl. air load mms = 7,27 g
equivalent volume of compliance Vas = 26,32 l
total Q factor Qts = 0,32 (Qms=1,93, Qes=0,378)
voice coil diameter = 25 mm
maximum peak linear excursion vibration xlin = +/- 7,5 mm
