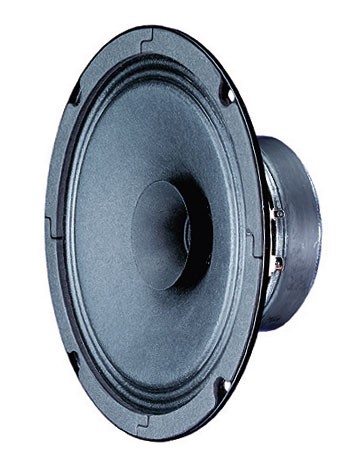

16 cm (6.5") full-range speaker with tweeter cone. High efficiency. Holes for fitting a transformer to magnet or basket (TR 10.16 or TR 6.8) for use in a 100 V-network. Suitable as full-range unit for vocal or guitar monitors or as a mid-range unit for full-scale or musicians' PA systems.
Typical applications: - Midrange unit for full scale or musicians' PA systems - Vocal or guitar monitors - Fullrange speaker for electronic organs and keyboards
Specifications
power handling (continuous/programme) = 40/60 W

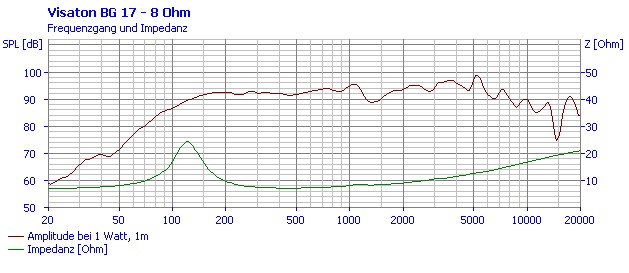

frequency range = 80-20000 Hz
resonance frequency fs = 110 Hz
impedance R = 8 Ohm
sound pressure level SPL = 93 dB (2,83V; 1m)
DC resistance Re = 6,5 Ohm
force factor BL = 5,7 N/A
voice coil inductance L = 0,7 mH
effective piston radiating area Sd = 143 cm2
effective mechanical mass incl. air load mms = 6,5 g
equivalent volume of compliance Vas = 9,7 l
total Q factor Qts = 0,64 (Qms=2,87, Qes=0,83)
voice coil diameter = 20 mm
maximum peak linear excursion vibration xlin = +/- 1,5 mm
