- Order number: 1163
Visaton DSM 50 FFL 50 mm (2") High-End titanium dome driver for the midrange band... more
Product information "Visaton DSM 50 FFL"

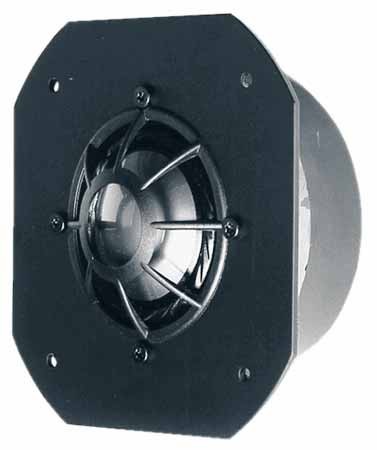

Visaton DSM 50 FFL
50 mm (2") High-End titanium dome driver for the midrange band between 800 and 5000 Hz. Due to the enormously strong and ultra-light titanium dome and in conjunction with a highly damped surround, linear frequency response and no partial oscillations. Due to the enormously high magnetic flux in the ferrofluid-filled air-gap a high efficiency and high power handling are possible.
Specifications
- power handling (continuous/programme) = 120/180 W

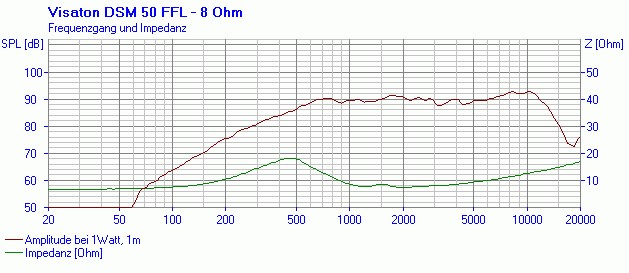

- frequency range = 400-15000 Hz
- resonance frequency fs = 600 Hz
- impedance R = 8 Ohm
- sound pressure level SPL = 91 dB (2,83V; 1m)
- voice coil diameter = 50 mm

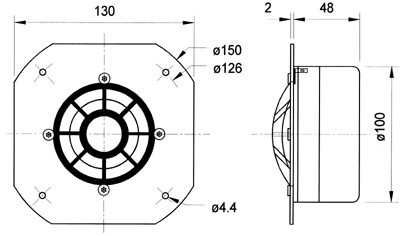

- mounting diameter d = 106 mm
- overall diameter d = 150 mm
- mounting depth (not countersunk) t = 48 mm
