Visaton G 50 FFL

Visaton
Preview: Visaton G 50 FFL Preview: Visaton G 50 FFL Preview: Visaton G 50 FFL Preview: Visaton G 50 FFL
Visaton G 50 FFL
Visaton G 50 FFL
Visaton G 50 FFL
Visaton G 50 FFL

€128.50 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • Order number: 1176
Description Evaluations 0
Description
Visaton G 50 FFL   50 mm (2") High-End fabric dome driver for the midrange band... more
Close menu
Product information "Visaton G 50 FFL"

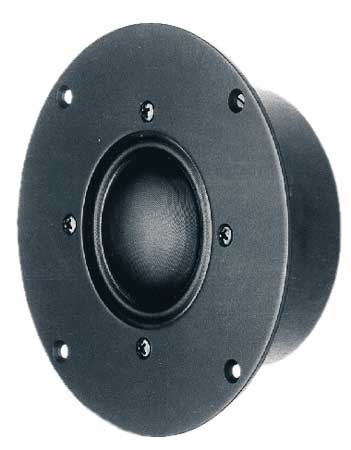

Visaton G 50 FFL



50 mm (2") High-End fabric dome driver for the midrange band between 800 and 7000 Hz. Due to the optimised dome shape with damping coating in conjunction with the highly damped surround, linear frequency response and no partial oscillations. Due to the powerful magnetic drive and the ferrofluid-cooled voice-coil high efficiency and high power handling can be guaranteed.



Specifications

  • power handling (continuous/programme) = 120/180 W
  • frequency range = 400-10000 Hz
  • resonance frequency fs = 700 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • voice coil diameter = 50 mm

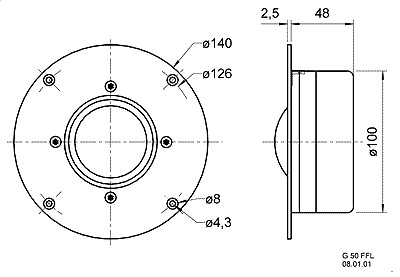

  • mounting diameter d = 106 mm
  • overall diameter d = 140 mm
  • mounting depth (not countersunk) t = 48 mm
