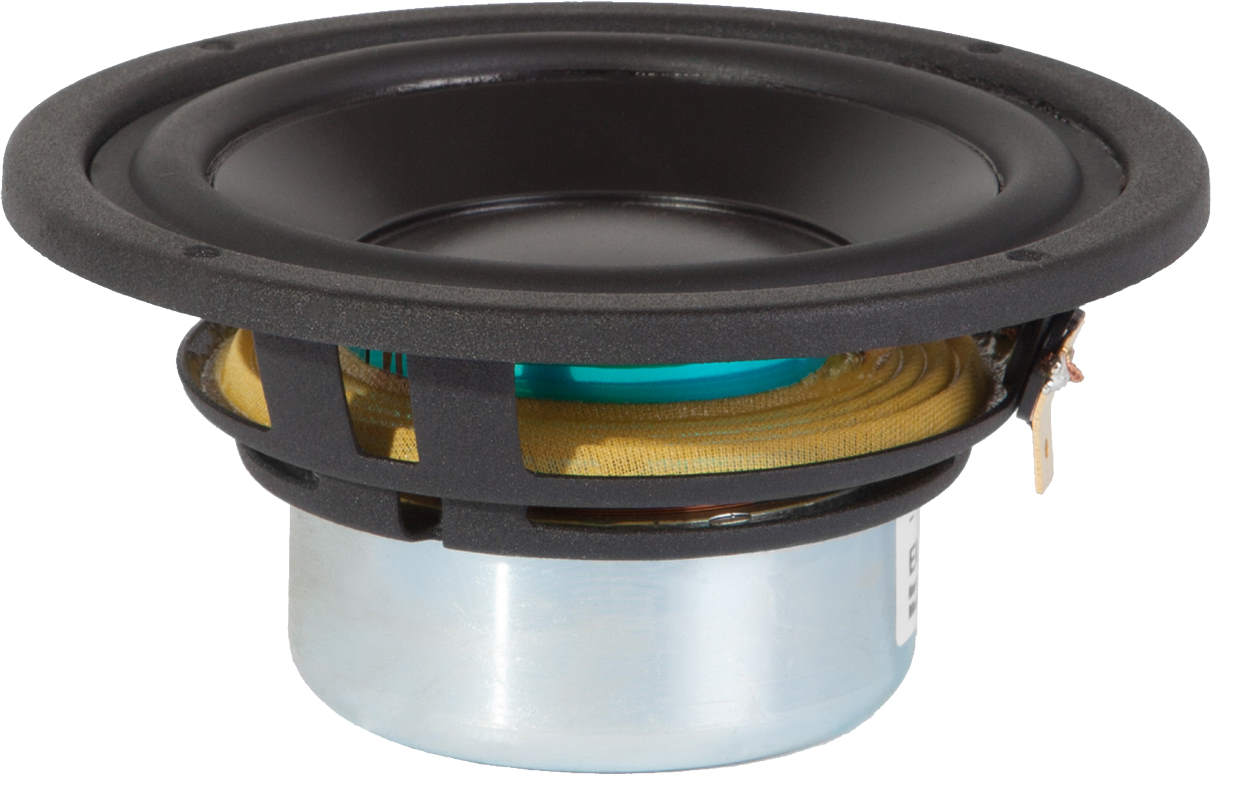

Morel EM 428D

Morel EM 428 incorporates a damped polymer composite cone, 54mm Hexatech™ aluminum voice coil, neodymium magnet system, high power handling, and a smooth response up to 5kHz. These features combine to produce a very impressive midrange driver. Improved version of Morel's famous MW 114S.

Features

• Uniflow™ steel chassis
• Neodymium magnet system
• 2.1″ Large Hexatech™ Aluminum voice coil
• High power handling
• Shallow profile D.P.C cone

Specifications

• power handling (continuous/programme) = 150 W
• frequency range = 50-5000 Hz
• resonance frequency fs = 68 Hz

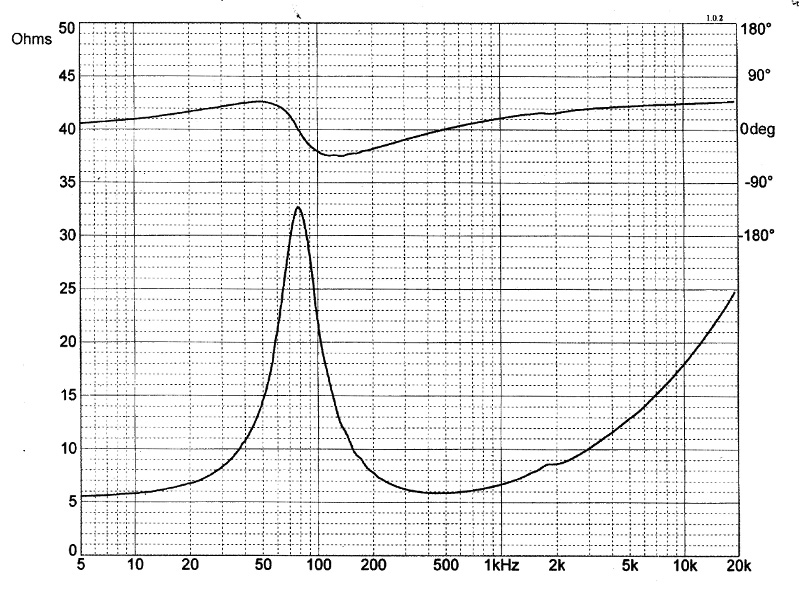

• impedance R = 8 Ohm

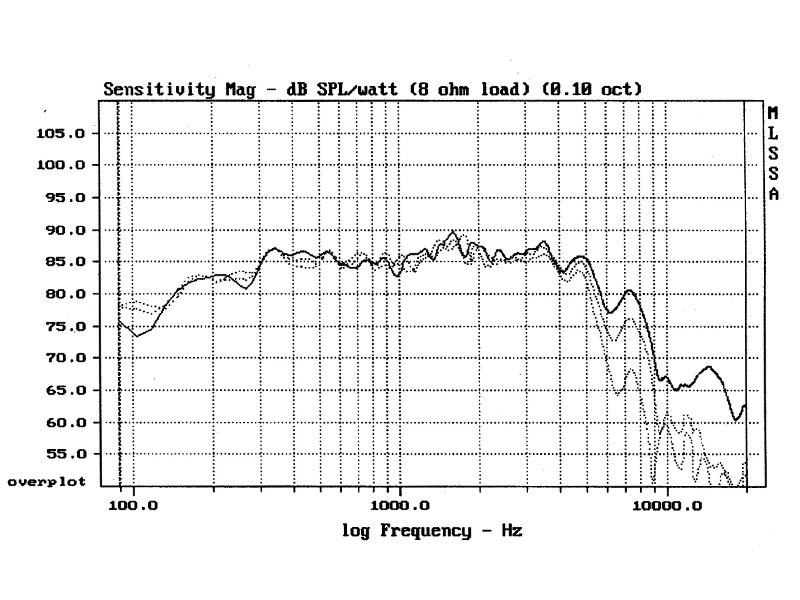

• sound pressure level SPL = 87 dB (2,83V; 1m)
• DC resistance Re = 5,4 Ohm
• force factor BL = 5,4 N/A
• voice coil inductance L = 0,36 mH
• effective piston radiating area Sd = 57 cm²
• effective mechanical mass incl. air load mms = 6,55 g
• equivalent volume of compliance Vas = 3,5 l
• total Q factor Qts = 0,41 (Qms=3,03, Qes=0,48)
• voice coil diameter = 54 mm
• maximum peak linear excursion vibration x_lin = +/- 3 mm

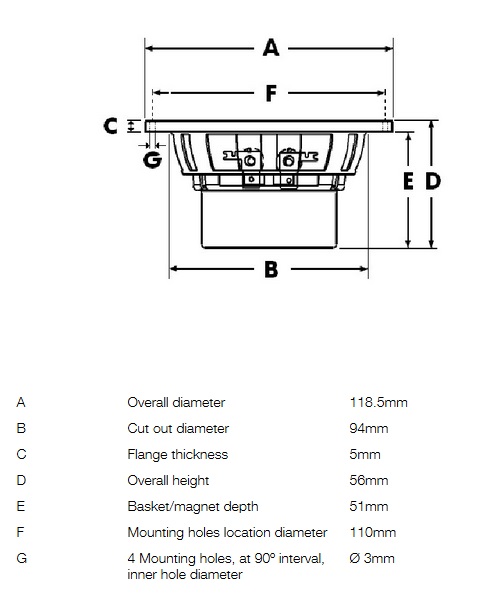

• mounting diameter d = 94 mm
• overall diameter d = 118,5 mm
• mounting depth (not countersunk) t = 51 mm
