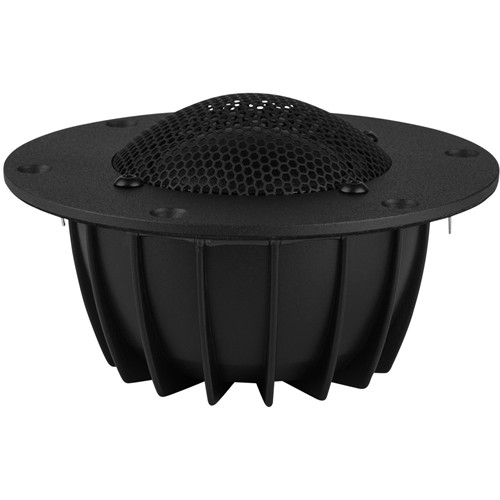

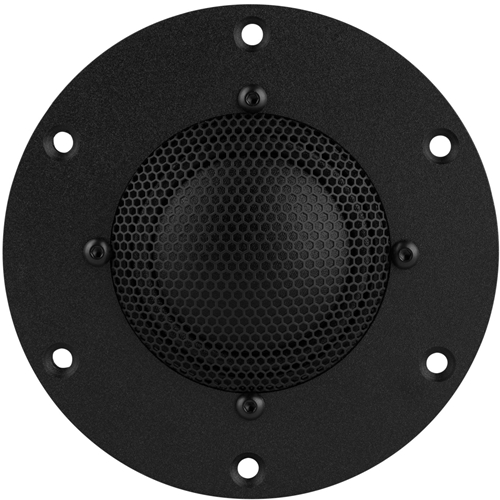

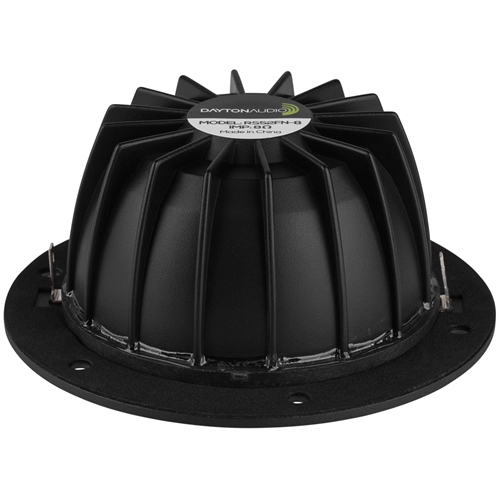

RS52FN-8 2" Reference Fabric Dome Midrange 8 Ohm

The Dayton Audio Reference Series dome midrange delivers smooth and natural midrange performance with excellent off-axis response. High quality construction includes a cast aluminum faceplate, metal grill, vented former, and copper clad pole piece.

Product Highlights

• Large damped rear chamber for low resonance point
• 2" damped fabric diaphragm for natural response and dispersion
• Neodymium keeps size and weight to a minimum without sacrificing efficiency
• Copper clad motor reduces distortion for transparent sound

Specifications

• power handling (continuous/programme) = 60 W

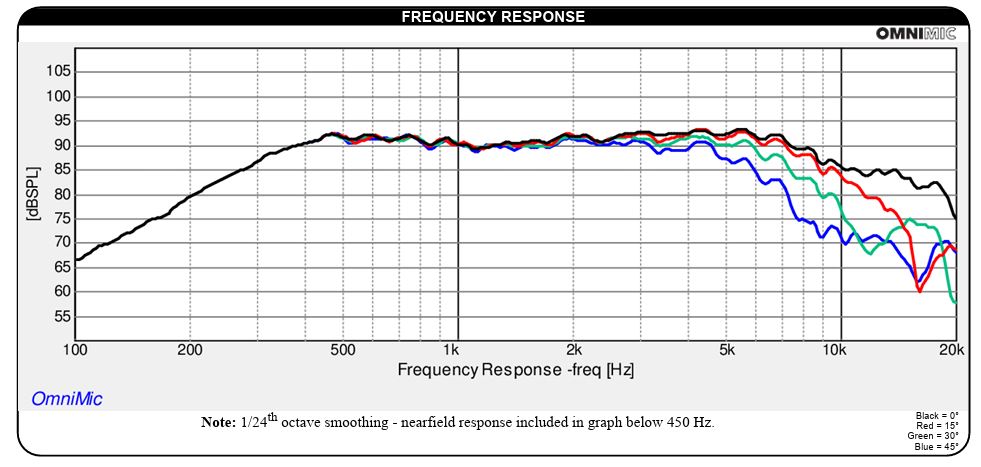

• frequency range = 500-8500 Hz

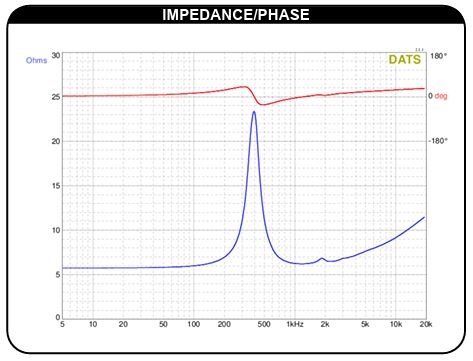

• resonance frequency fs = 394 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 90 dB (2,83V; 1m)
• DC resistance Re = 5,7 Ohm
• voice coil inductance L = 0,12 mH
• effective piston radiating area Sd = 26,4 cm²
• total Q factor Qts = 1,05 (Qms=4,27, Qes=1,39)
• voice coil diameter = 52 mm

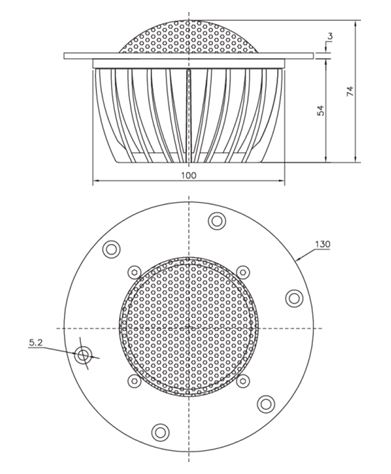

• mounting diameter d = 100,0 mm
• overall diameter d = 130,0 mm
• mounting depth (not countersunk) t = 54,0 mm
