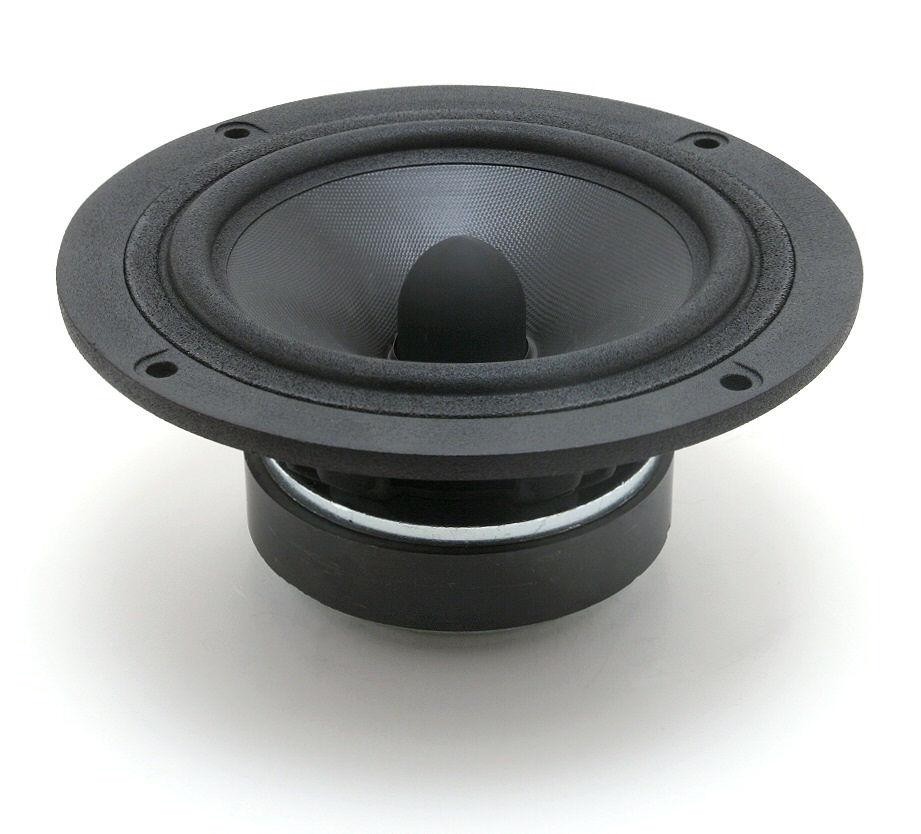

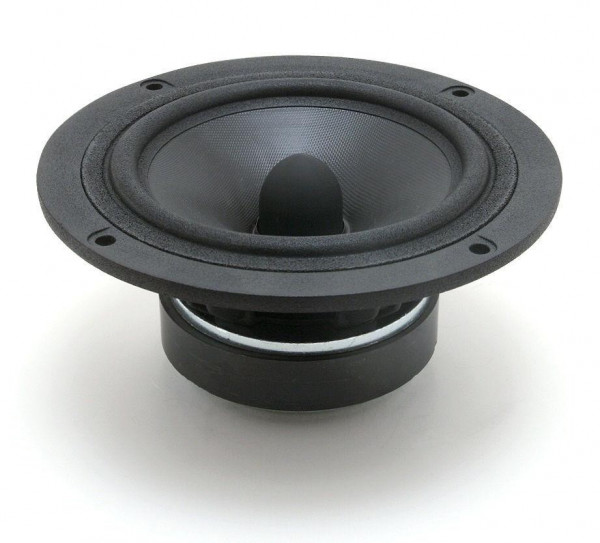

The Scan-Speak 15M/4624G-00 5.25" Midrange offer traditional design, superior sound, a solid construction, and a wide range of variants. Combining these elements - plus a wealth of technical features and finesses - gives our customers the possibility of acquiring a tailor-made Scan-Speak solution with very good performance at a reasonable low price point!
NRSC* Fibre Glass Cone
Phase Plug for Improved Phase Linearity
Very Low damping Coated Foam Surround
Aluminum Ring in Magnet System for Improved Impedance Control and Lower Distortion
High Sensitivity 92,5dB
Wide Frequency Operating Range
Die Cast Aluminium Basket
Vents below Spider

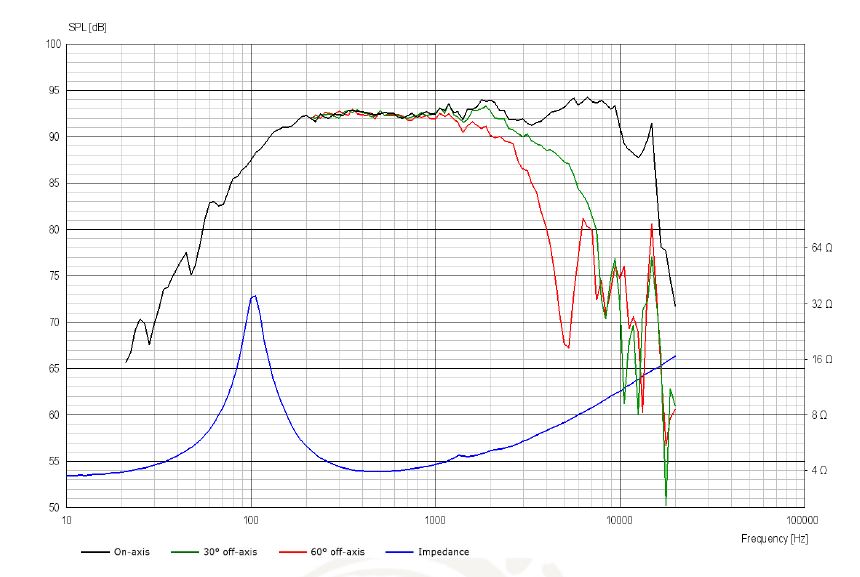

Specifications
power handling (continuous/programme) = 50/150 W
frequency range = 100-1000 Hz
resonance frequency fs = 100 Hz
impedance R = 4 Ohm
sound pressure level SPL = 92.4 dB (2,83V; 1m)
DC resistance Re = 4,1 Ohm
force factor BL = 5,3 N/A
voice coil inductance L = 0,23 mH
effective piston radiating area Sd = 80 cm2
effective mechanical mass incl. air load mms = 6,2 g
equivalent volume of compliance Vas = 3,7 l
total Q factor Qts = 0,43 (Qms=5,62 Qes=0,47)
voice coil diameter = 25 mm
maximum peak linear excursion vibration xlin = +/- 1,5 mm
