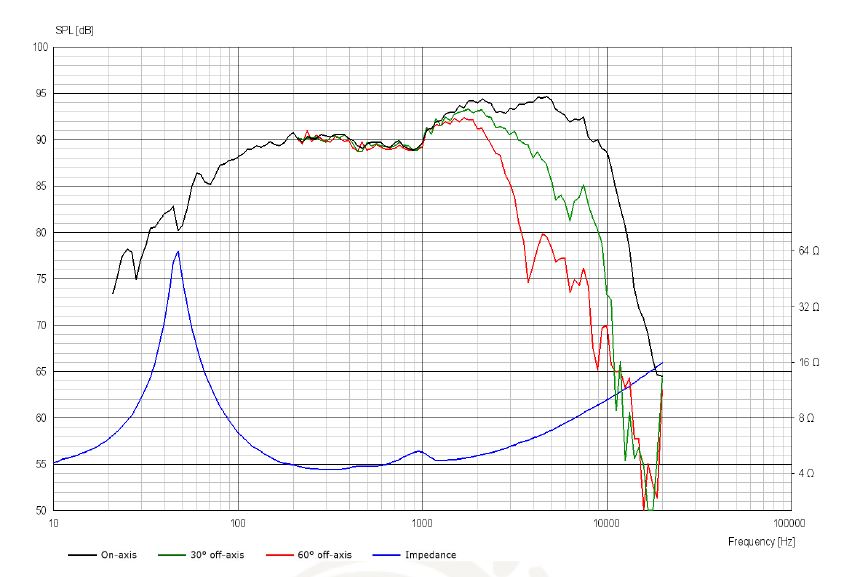

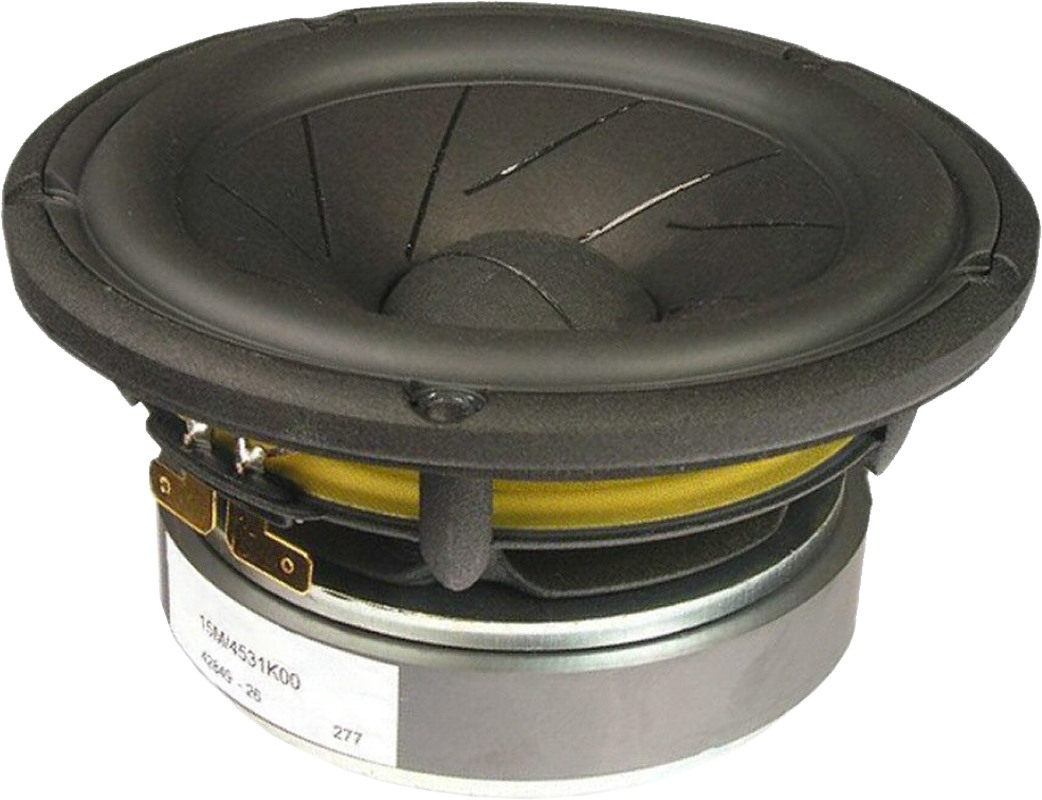

The Scan-speak 15M/4531K-01 5.25" Revelator midrange features a slit-paper non-resonant cone and dust cap structure, dynamic linear suspension, SD-1 magnet system, "Grasshopper" cast chassis with maximized air flow, glass fiber voice coil former and resonance terminating mounting system. The 15M/4531K is intended for use as a midrange, with a usable frequency range between 100Hz and 6kHz. As you can see from the response curve, this speaker has a lot of energy in the upper frequency range.
Specifications
power handling (continuous/programme) = 50/150 W
frequency range = 40-2500 Hz
resonance frequency fs = 35 Hz
impedance R = 4 Ohm
sound pressure level SPL = 90 dB (2,83V; 1m)
DC resistance Re = 3,5 Ohm
force factor BL = 6 N/A
voice coil inductance L = 0,17 mH
effective piston radiating area Sd = 95 cm2
effective mechanical mass incl. air load mms = 11 g
equivalent volume of compliance Vas = 23,8 l
total Q factor Qts = 0,23 (Qms=4,8, Qes=0,24)
voice coil diameter = 38 mm
maximum peak linear excursion vibration xlin = +/- 3 mm
