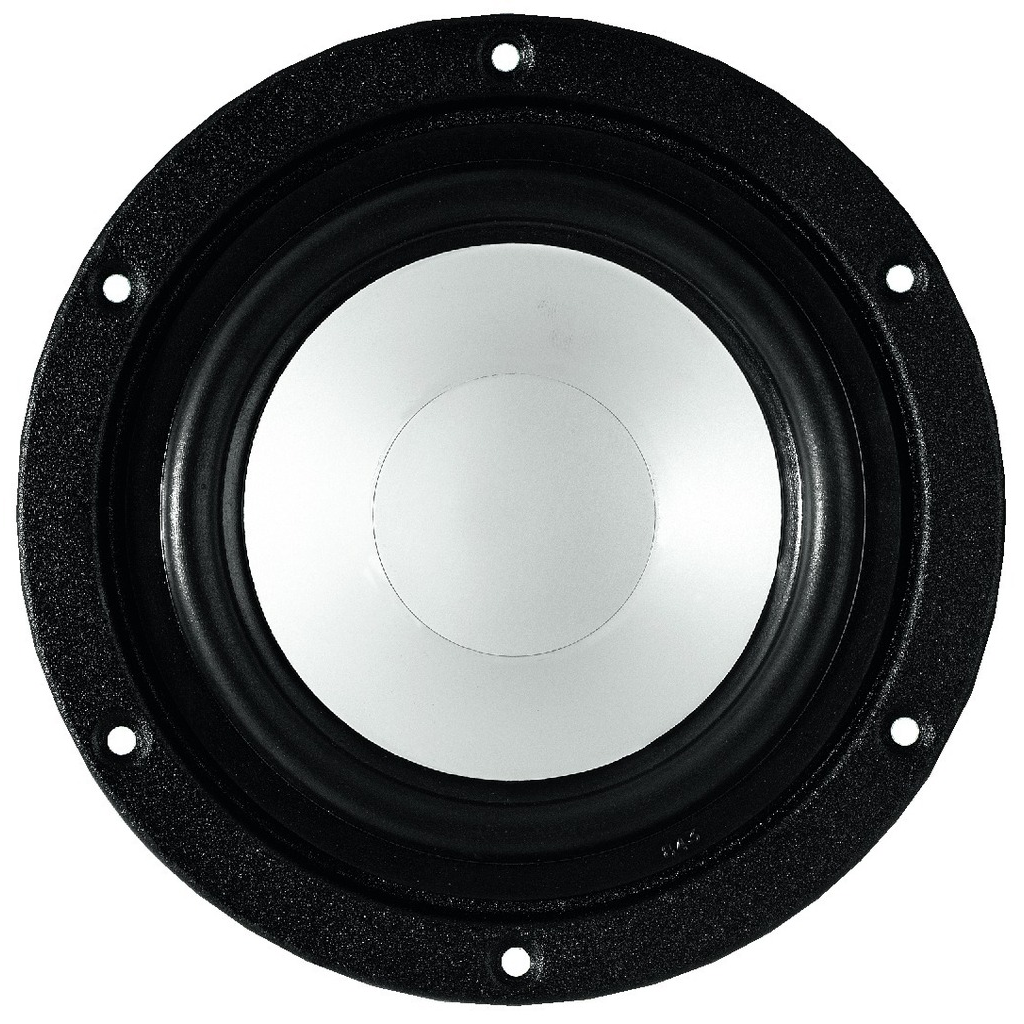

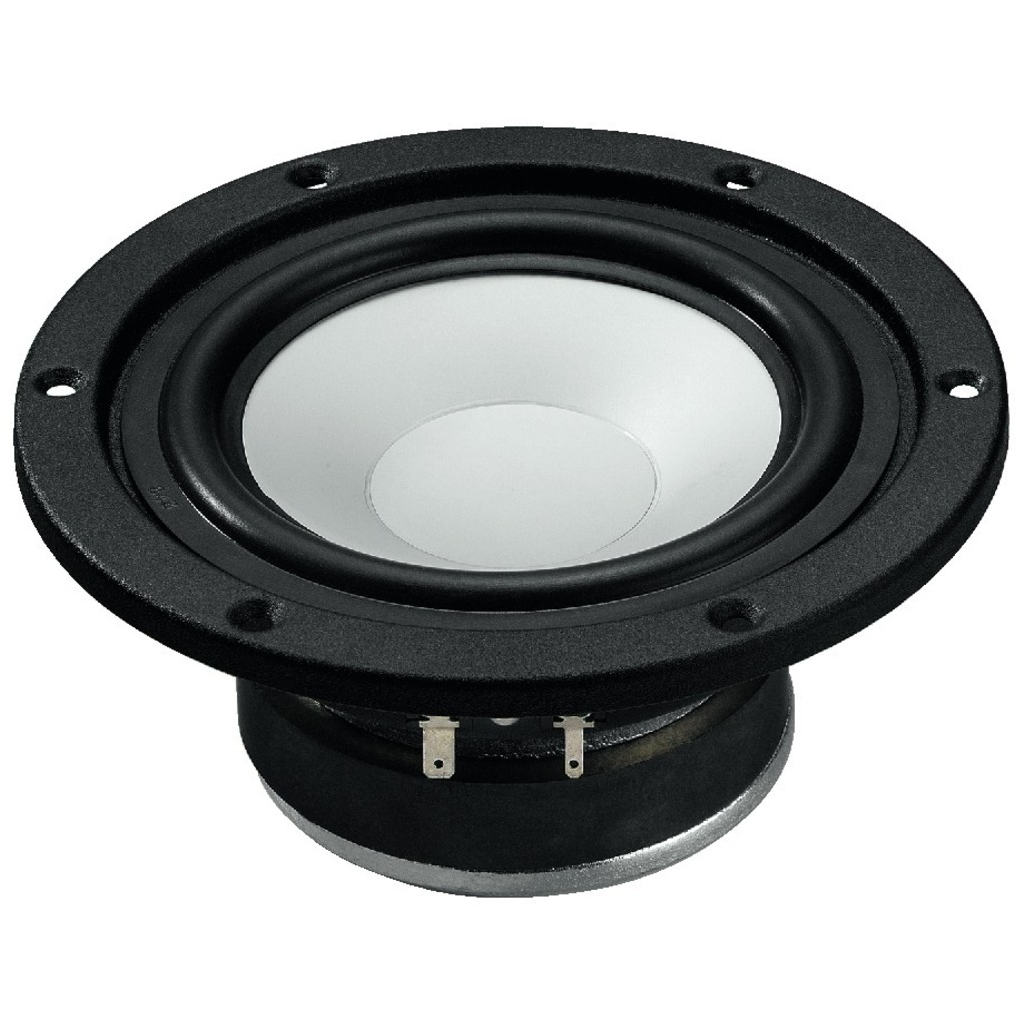

Monacor SPH-130AL

€52.50 *

Prices incl. VAT plus shipping costs

Delivery time 1-3 Workdays

  • mon-sph130al
Hi-fi bass-midrange speaker, 100 W MAX , 50 W RMS , 8 Ω All-aluminium... more
Product information "Monacor SPH-130AL"

Hi-fi bass-midrange speaker, 100 WMAX, 50 WRMS, 8 Ω

  • All-aluminium cone and dustcap
  • Special design for extra reinforcement
  • 6-hole screw connection
  • Extra dynamic sound and a very wide bandwidth
  • Midrange speaker of high efficiency and high power capability for high-end speaker systems and a perfect bass-midrange speaker for small speaker systems

HOBBY HiFi 04/2012
"The SPH-130AL impresses by an excellent sound quality and is suitable for particularly wideband applications ... frequencies up to 4  kHz can be utilised, one of the top marks in the test field."



Specifications

  • power handling (continuous/programme) = 50/100 W

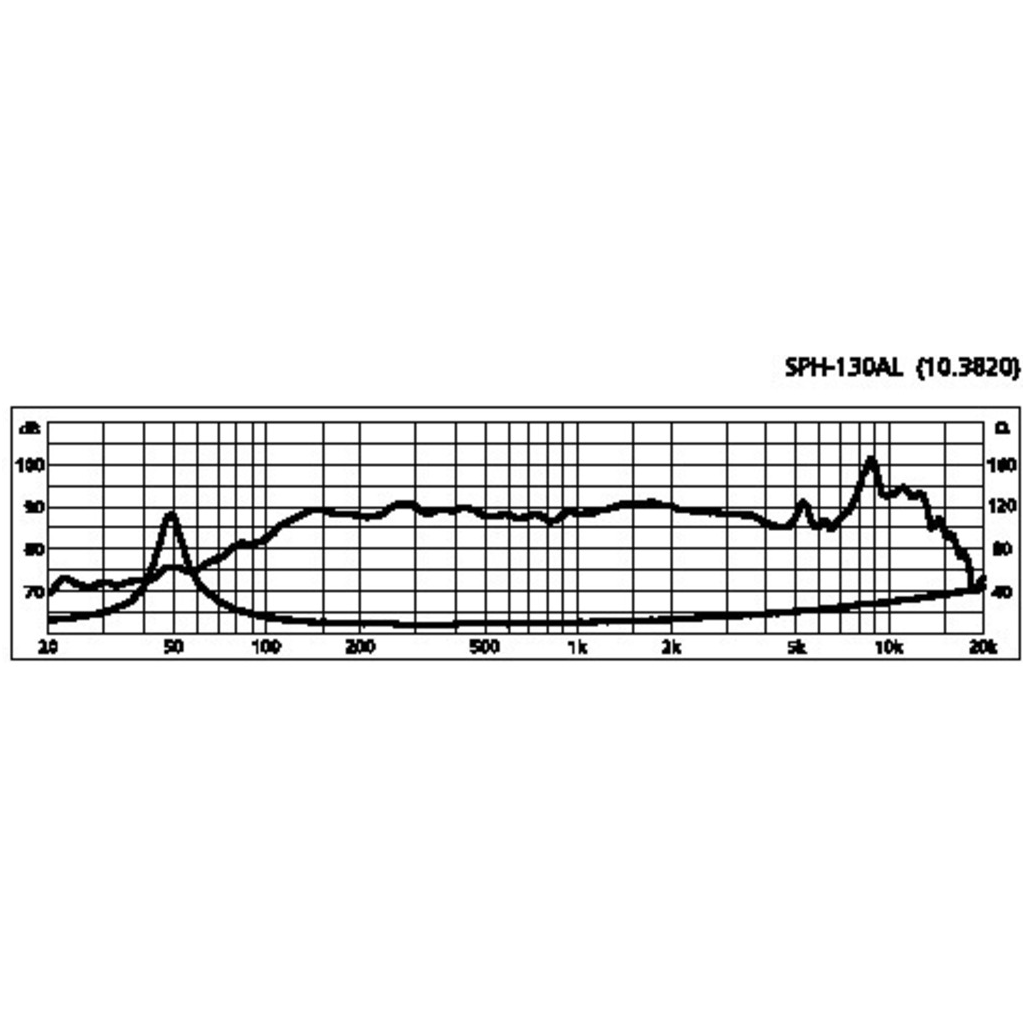

  • frequency range = 50-4500 Hz
  • resonance frequency fs = 48 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 6,4 Ohm
  • force factor BL = 7,22 N/A
  • voice coil inductance L = 0,6 mH
  • effective piston radiating area Sd = 80 cm2
  • effective mechanical mass incl. air load mms = 9 g
  • equivalent volume of compliance Vas = 10,8 l
  • total Q factor Qts = 0,32 (Qms=5,07, Qes=0,34)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 2,3 mm

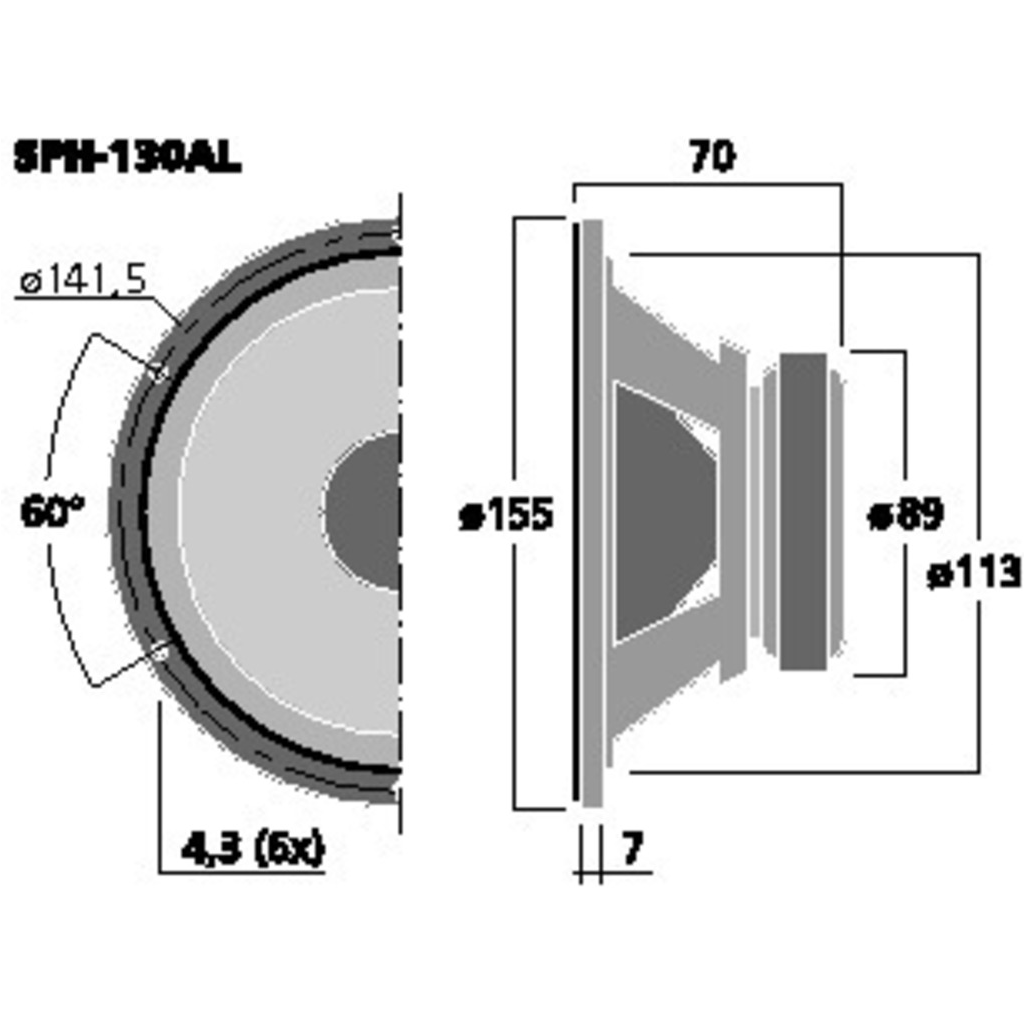

  • mounting diameter d = 113 mm
  • overall diameter d = 155 mm
  • mounting depth (not countersunk) t = 70 mm
  • mass m = 1 kg
