Peerless SDS-106 Passive

Peerless
Preview: Peerless SDS-106 Passive Preview: Peerless SDS-106 Passive back Preview: Peerless SDS-106 Passive response Preview: Peerless SDS-106 Passive dimensions

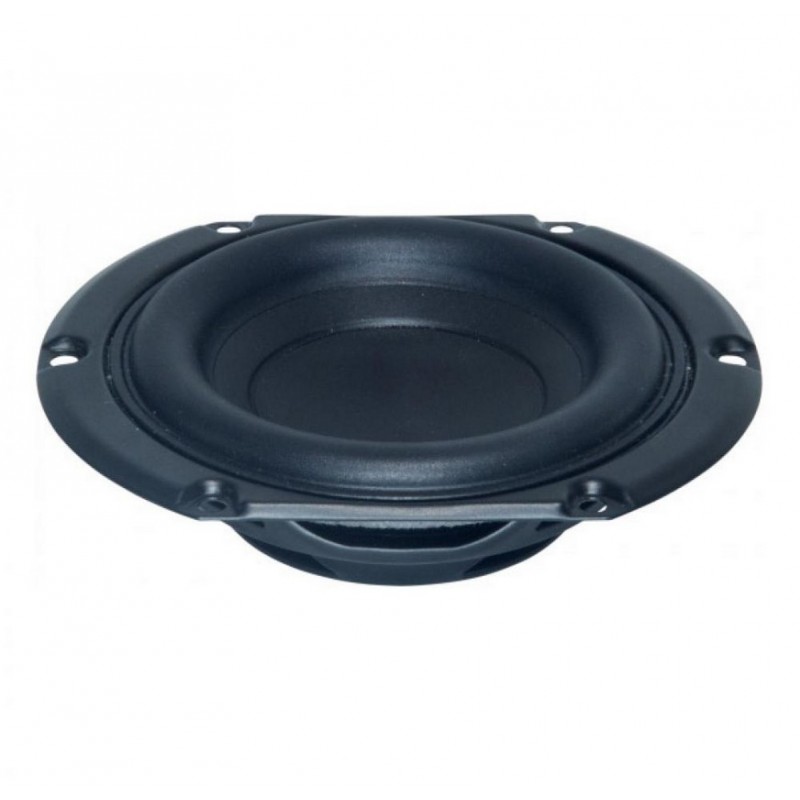

Peerless SDS-106 Passive

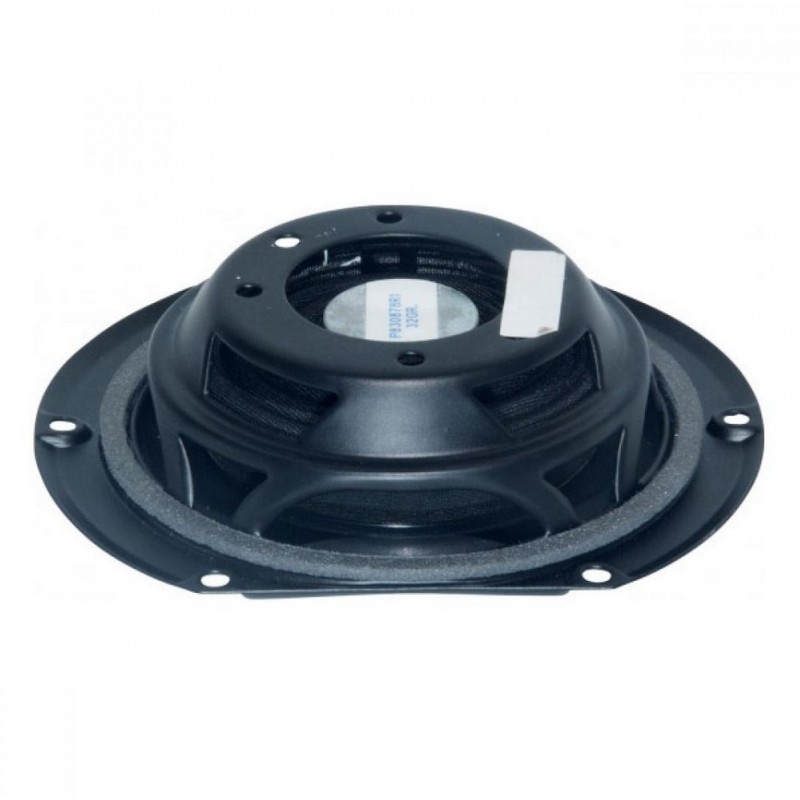

Peerless SDS-106 Passive back

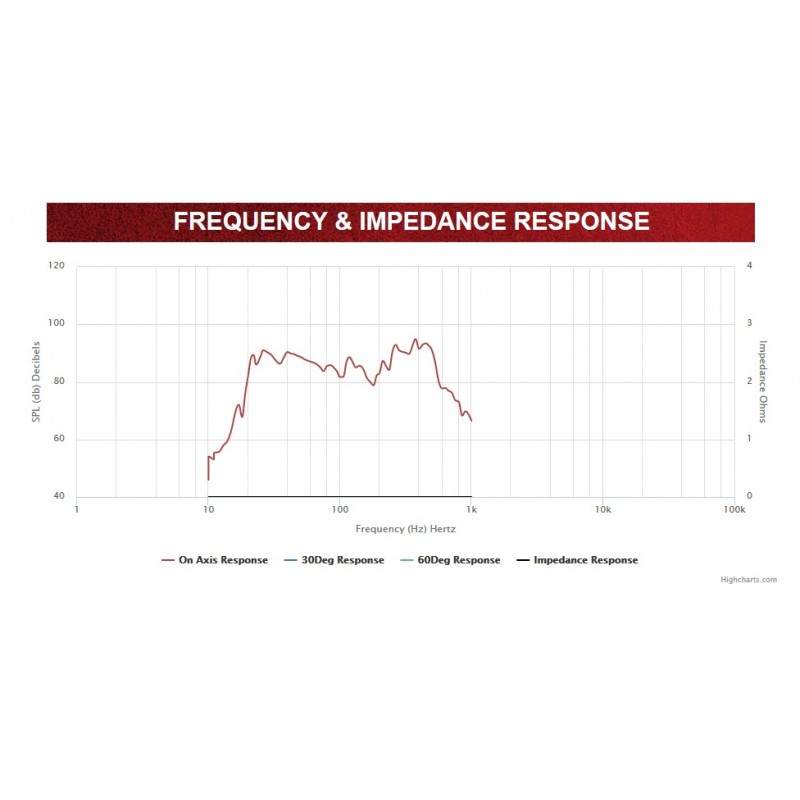

Peerless SDS-106 Passive response

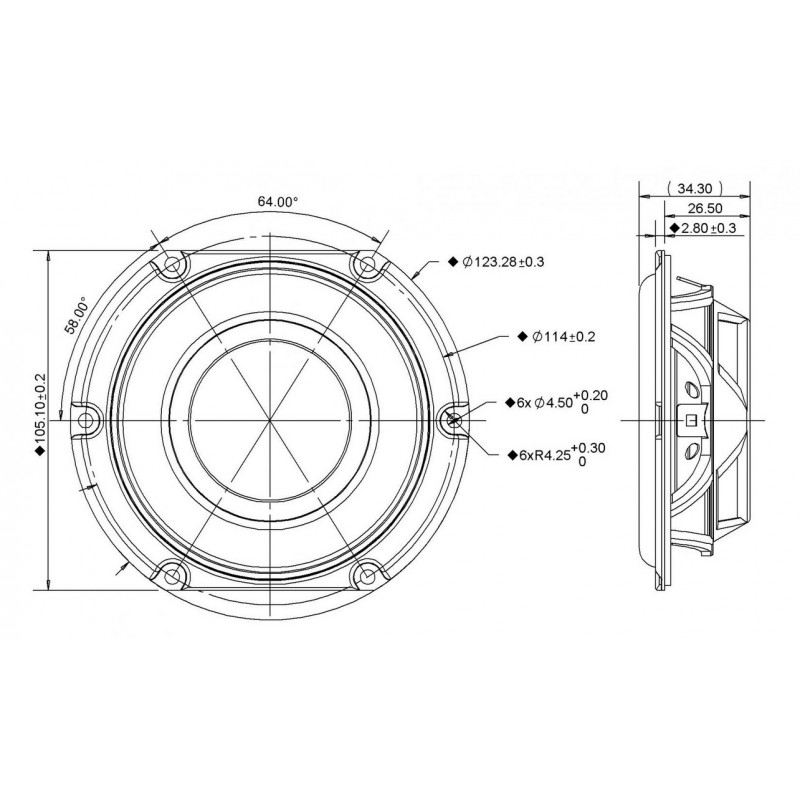

Peerless SDS-106 Passive dimensions

€16.63 *

Prices incl. VAT plus shipping costs

Delivery time appr. 1-3 workdays

  • Order number: 830878
Description Evaluations 0
Description
The P830878 SDS 106 Passive ,member of the SDS family is a passive radiator, designed to match... more
Close menu
Product information "Peerless SDS-106 Passive"

The P830878 SDS 106 Passive ,member of the SDS family is a passive radiator, designed to match up with SDS subwoofers, and features a coated paper cone with rubber surround, and a narrow-profile steel basket shaped to fit into narrow cabinets.

Peerless recommends using two passives with one active woofer in 3.5 liters.

Specifications

Transducer Size     4 in –
DC Resistance     0 Ω ±5.0%
Resonant Frequency     0 Hz 15%
Half Space Sensitivity @ 2.83V     27.04 dB ±1.01
Sensitivity @ 1W/1m     0 dB ±1.01
Rated Noise Power (IEC 268-5 18.1)     0 W –
Effective Piston Area     50.2 cm2 –
Moving Mass     38.5 g –
Motor Force Factor     0 T•m –
Voice Coil Inner Diameter     0 mm –
Gap Height     0 mm –
Maximum Linear Excursion     0 mm –
Ferrofluid Type       –
Minimum Impedance     0 Ω ±7.5%
Voice Coil Inductance     0 mH –
Mechanical Q Factor     0 –
Electrical Q Factor     0 –
Total Q Factor     0 –
Ratio     fs/Qts –
Test Spectrum Bandwidth (1300-20000 Hz)     12 dB/Oct –
Energy Bandwidth Product ((1/Qes)•fs)       –
Suspension Compliance     791 um/N –
Effective Cone Diameter     8 cm –
Motor Efficiency Factor     (T•m2)/Ω –
Voice Coil Former Material     GSV –
Transducer Mass     0.1 Kg –
Equivalent Volume     0 L –
