SB Acoustics SW26DBAC-00

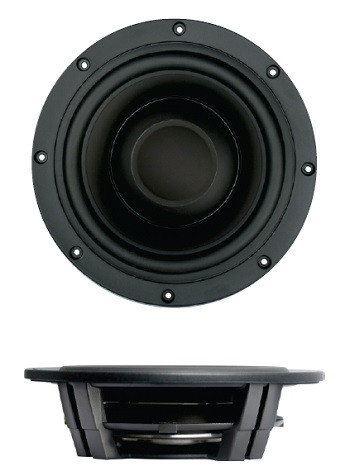

SB Acoustics SW26DBAC-00 10" Passive Radiator

• Dual rigid aluminum cone structure
• Cast aluminium chassis for optimum strength
• Low damping medium hardness rubber surround for improved dynamic linearity and mechanical stability
• Easily adjustable moving mass

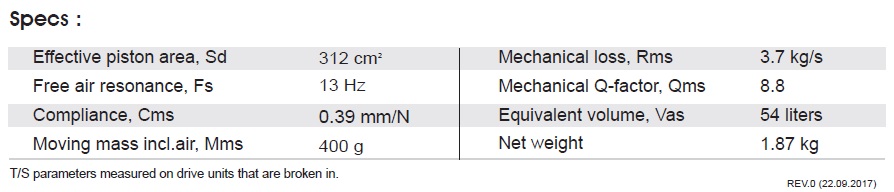

Specifications

• resonance frequency fs = 13 Hz
• effective piston radiating area Sd = 312 cm²
• effective mechanical mass incl. air load mms = 400 g
• equivalent volume of compliance Vas = 54 l
• compliance, cms = 0.39 mm/N
• mechanical Q-factor, qms = 8.8

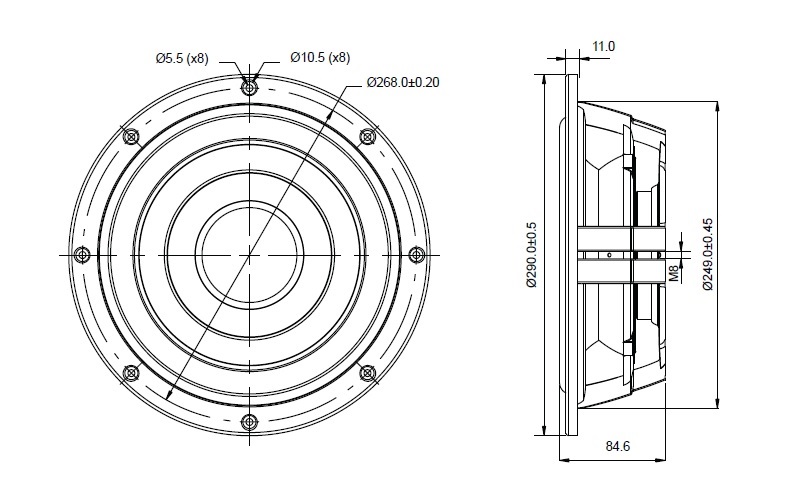

• mounting diameter d = 249 mm
• overall diameter d = 290 mm
• mounting depth (not countersunk) t = 73,6 mm
