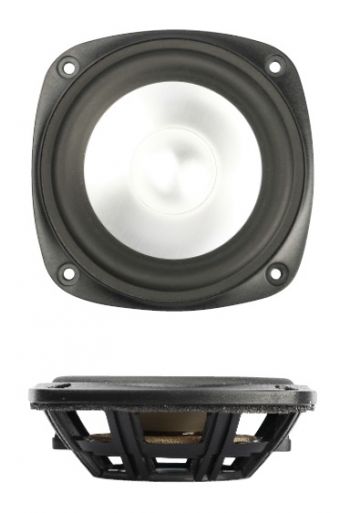

SB Acoustics SB12PAC-00

SB Acoustics SB12PAC-00 Alu 4" Passive

• Vented reinforced plastic chassis
• Anodised aluminium cone
• Low damping rubber surround
• Long stroke linear suspension
• Easily adjustable moving mass

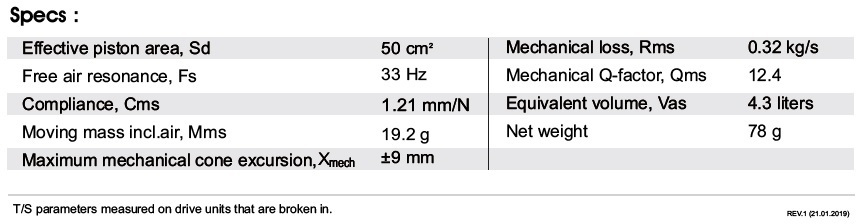

Specifications

• resonance frequency fs = 33 Hz
• effective piston radiating area Sd = 50 cm²
• effective mechanical mass incl. air load mms = 19,2 g
• equivalent volume of compliance Vas = 4.3 l
• Compliance Cms = 1,21 mm/N

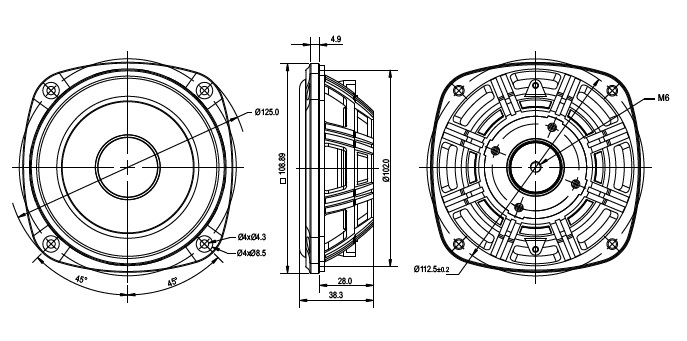

• mounting diameter d = 102 mm
• overall diameter d = 108.9mm
• mounting depth (not countersunk) t = 28 mm
