SB Acoustics SB12PFC-00

SB Acoustics
Preview: SB Acoustics SB12PFC-00 Preview: SB Acoustics SB12PFC-00 parameters Preview: SB Acoustics SB12PFC-00 dimensions

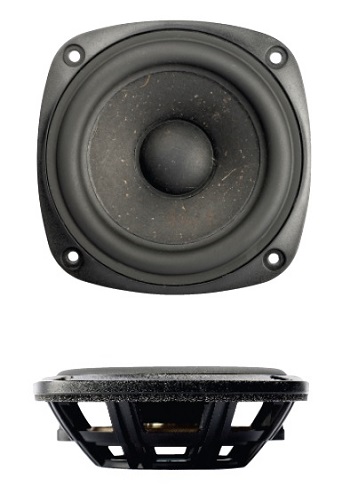

SB Acoustics SB12PFC-00

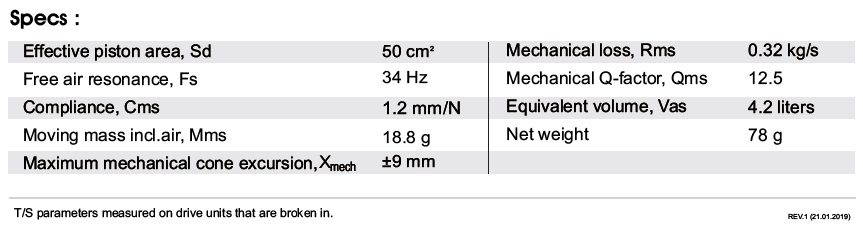

SB Acoustics SB12PFC-00 parameters

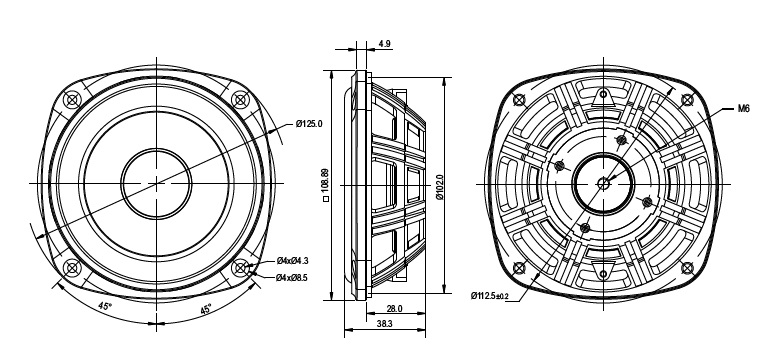

SB Acoustics SB12PFC-00 dimensions

€19.81 *

Prices incl. VAT plus shipping costs

Delivery time appr. 1-3 workdays

  • Order number: 1382471
Description Evaluations 0
Description
SB Acoustics SB12PFC-00 Vented reinforced plastic chassis Proprietary cone material with... more
Close menu
Product information "SB Acoustics SB12PFC-00"

SB Acoustics SB12PFC-00

  • Vented reinforced plastic chassis
  • Proprietary cone material with natural fibres made in-house
  • Low damping rubber surround
  • Long stroke linear suspension
  • Easily adjustable moving mass



Specifications

  • resonance frequency fs = 34 Hz
  • compliance Cms 1.2mm/N
  • effective piston radiating area Sd = 82 cm2
  • effective mechanical mass incl. air load mms = 18.8 g
  • equivalent volume of compliance Vas = 4,2 l
  • mounting diameter d = 102 mm
  • overall diameter d = 108.89 mm
  • mounting depth (not countersunk) t = 28 mm
