SB Acoustics SB13PFCR25-4-Coax

SB Acoustics
Preview: SB Acoustics SB13PFCR25-4-Coax Preview: SB Acoustics SB13PFC25-4-Coax charts Preview: SB Acoustics SB13PFC25-4-Coax parameters Preview: SB Acoustics SB13PFC25-4-Coax dimensions

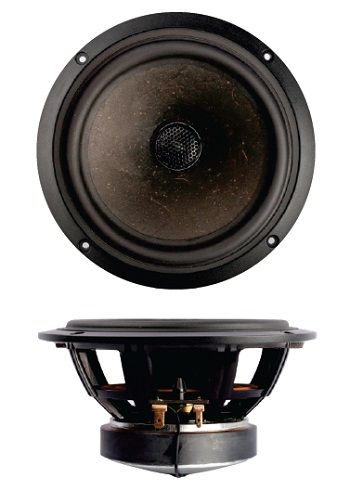

SB Acoustics SB13PFCR25-4-Coax

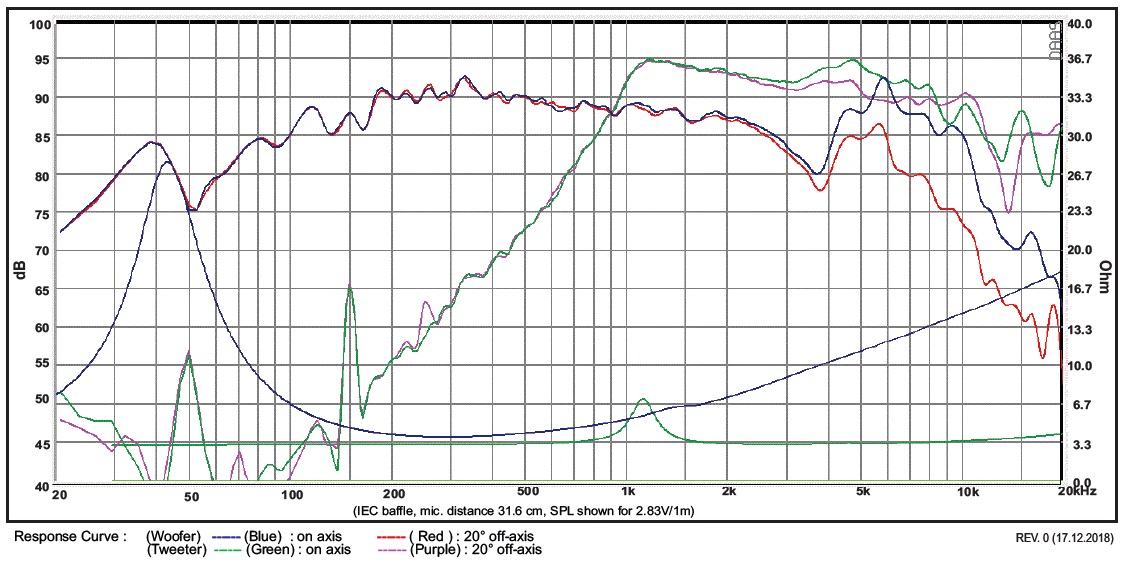

SB Acoustics SB13PFC25-4-Coax charts

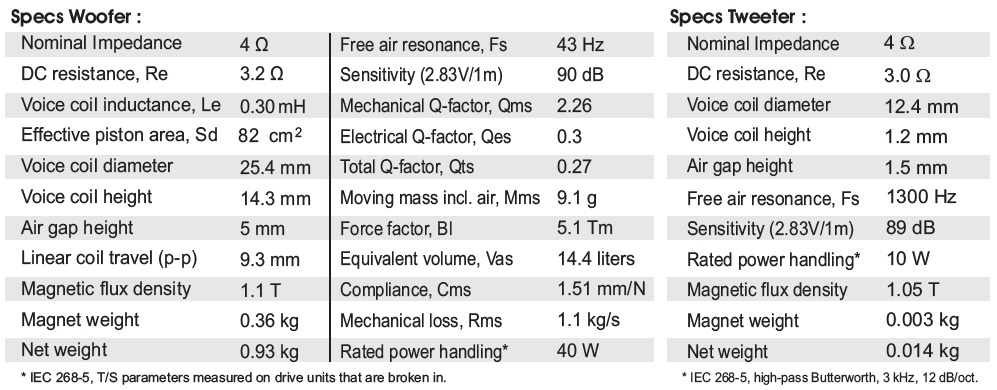

SB Acoustics SB13PFC25-4-Coax parameters

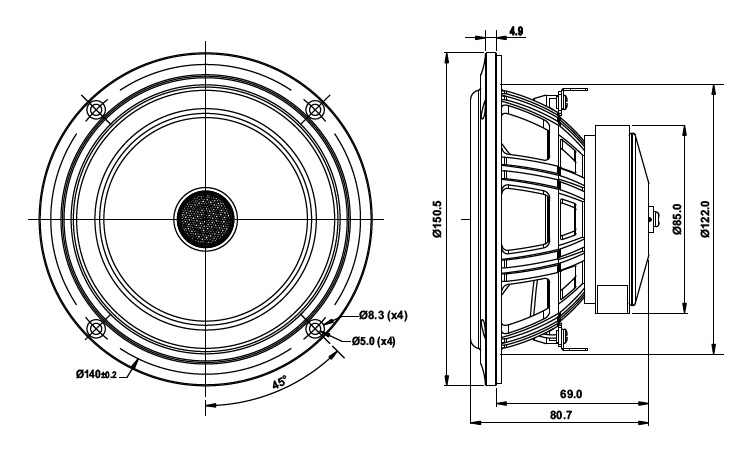

SB Acoustics SB13PFC25-4-Coax dimensions

€52.90 *

Prices incl. VAT plus shipping costs

Delivery time 1-3 Workdays

  • Order number: 1382492
Description Evaluations 0
Description
SB Acoustics SB13PFCR25-4 Coax Vented reinforced plastic chassis Proprietary cone material... more
Close menu
Product information "SB Acoustics SB13PFCR25-4-Coax"

SB Acoustics SB13PFCR25-4 Coax

  • Vented reinforced plastic chassis
  • Proprietary cone material with natural fibers made in-house
  • Soft low damping rubber surround for improved transient response
  • Optimized motor system
  • Non-resonant long life lead wires
  • Compact large surround dome tweeter



Specifications

  • power handling (continuous/programme) = 40 W
  • frequency range = 60-20000 Hz
  • resonance frequency fs = 43 Hz/1300 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 90 dB/89 dB (2,83V; 1m)
  • DC resistance Re = 3.2 Ohm/3.0 Ohm
  • force factor BL = 5.1 N/A
  • voice coil inductance L = 0.30 mH
  • effective piston radiating area Sd = 50 cm2
  • effective mechanical mass incl. air load mms = 9.1 g
  • equivalent volume of compliance Vas = 14.4 l
  • total Q factor Qts = 0.27 (Qms=2.26, Qes=0.30)
  • voice coil diameter = 25,4 mm
  • mounting diameter d = 122 mm
  • overall diameter d = 150.5 mm
  • mounting depth (not countersunk) t = 69 mm
