Scan-Speak 30W/0-00-00

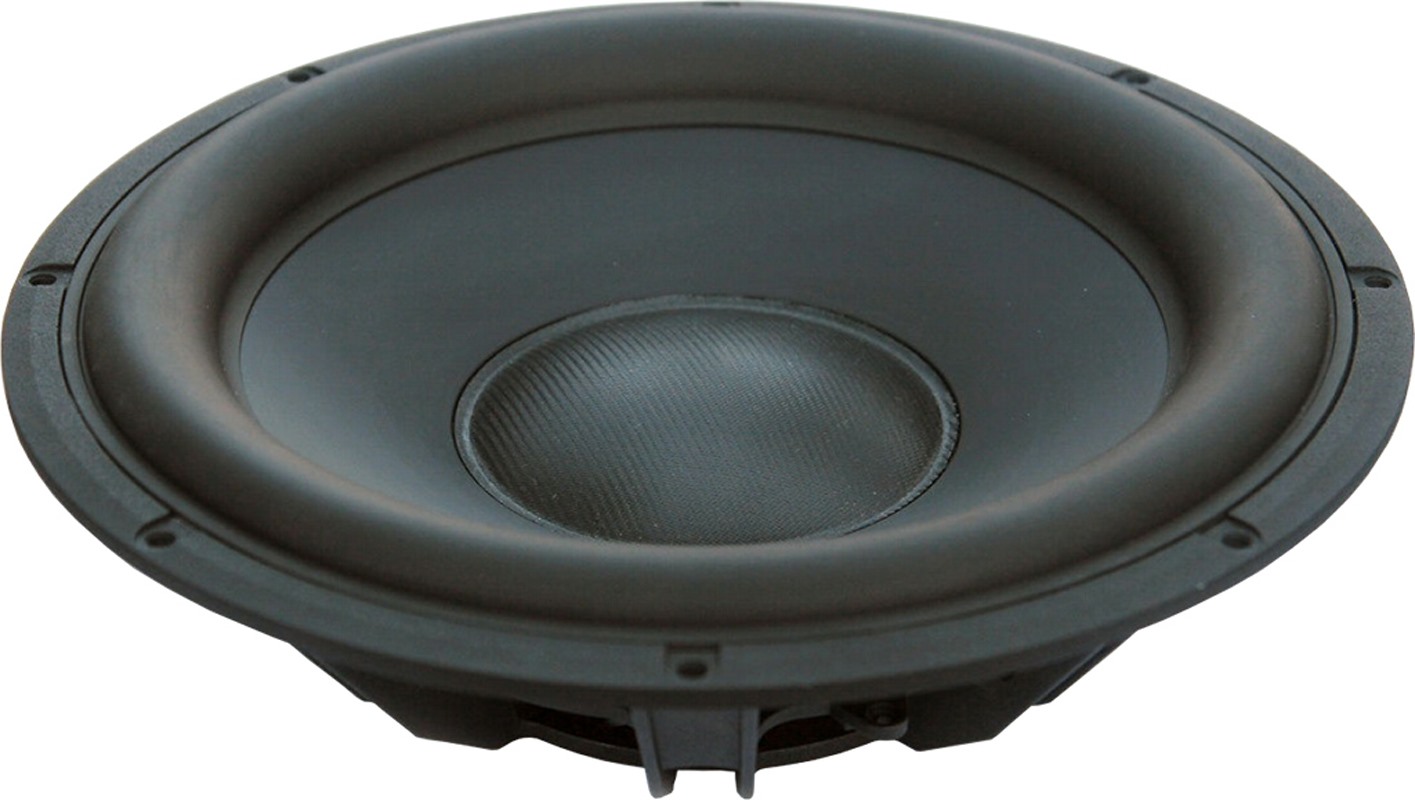

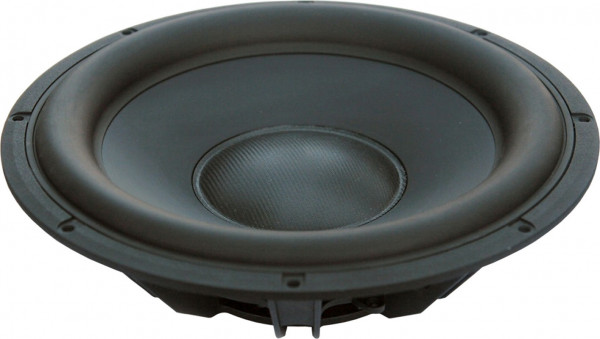

ScanSpeak 30W/0-00 12" Passive Radiator

• Aluminium Cone, Black Anodized
• Fiberglass/Paper Sandwich Dust Cap, Black Coated
• Nomex spider
• Low damping rubber surround
• Adjustable weight
• 56mm peak excursion

Specifications

• resonance frequency fs = 9,5 Hz
• effective piston radiating area Sd = 466 cm²
• effective mechanical mass incl. air load mms = 435 g
• equivalent volume of compliance Vas = 200 l
• total Q factor Qts = $qts (Qms=14, Qes=$qes)
• maximum peak linear excursion vibration x_lin = +/- 28 mm

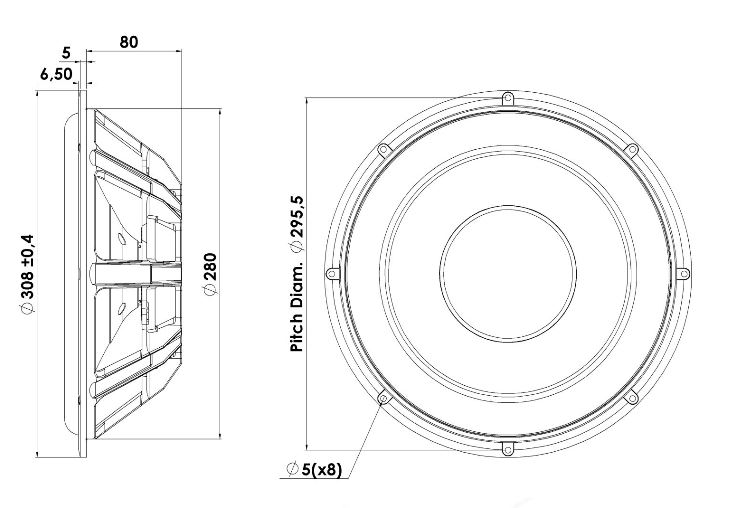

• mounting diameter d = 280 mm
• overall diameter d = 308 mm
• mounting depth (not countersunk) t = 85 mm
