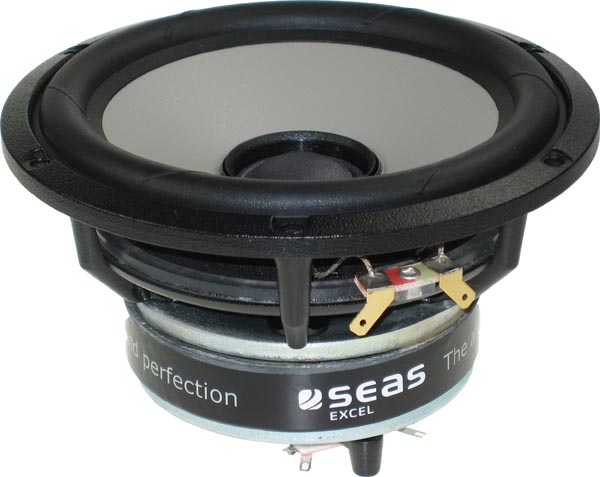

Precision cast, machined and surface treated magnesium cone acts as a piston through the audible frequency band without any sign of midrange resonances.
A unique radial reinforced rubber surround reduces resonances and prevents surround break up at large excursions.
Heavy copper rings mounted above and below the T-shaped pole piece reduce non linear and modulation distortion and increase overload margin.
The coaxially arranged precoated fabric dome high frequency unit has a low resonance frequency, and integrates with the cone driver to form a point source.
The extremely stiff and stable injection moulded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonances to a minimum.

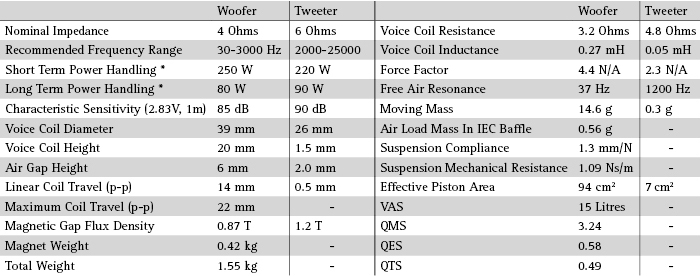

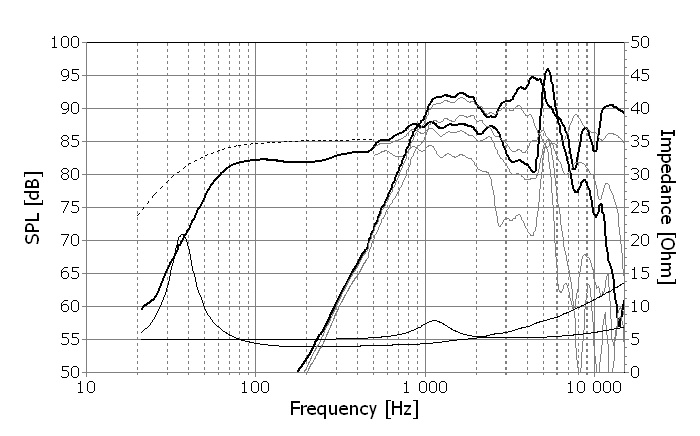

Specifications
Woofer
power handling (continuous/programme) = 80/250 W
frequency range = 30-3000 Hz
resonance frequency fs = 37 Hz
impedance R = 4 Ohm
sound pressure level SPL = 85 dB (2,83V; 1m)
DC resistance Re = 3.2 Ohm
force factor BL = 4.4 N/A
voice coil inductance L = 0.27 mH
effective piston radiating area Sd = 94 cm2
effective mechanical mass incl. air load mms = 14.6 g
equivalent volume of compliance Vas = 15 l
total Q factor Qts = 0.49 (Qms=3.24, Qes=0.58)
voice coil diameter = 39 mm
maximum peak linear excursion vibration xlin = +/- 7 mm

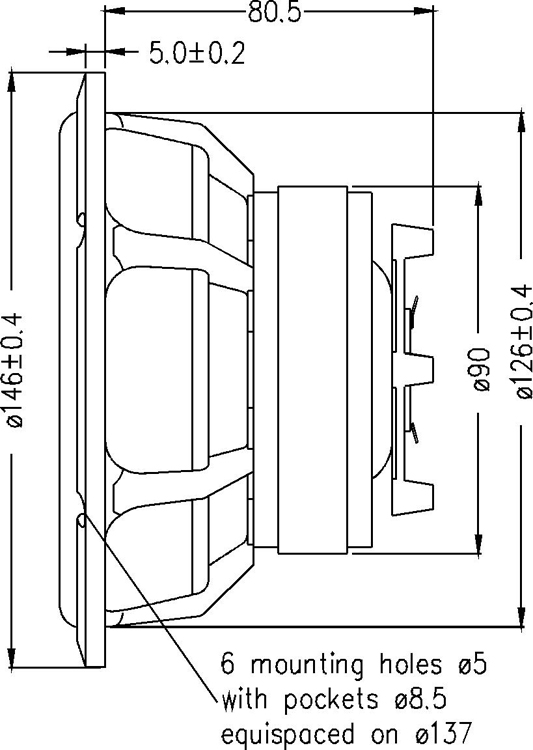

mounting diameter d = 126 mm
overall diameter d = 146 mm
mounting depth (not countersunk) t = 80,5 mm
Tweeter
power handling (continuous/programme) = 90/220 W
resonance frequency fs = 1200 Hz
impedance R = 6 Ohm
sound pressure level SPL = 90 dB (2,83V; 1m)
DC resistance Re = 4,8 Ohm
force factor BL = 2.3 N/A
voice coil inductance L = 0.05 mH
effective piston radiating area Sd = 7 cm2
effective mechanical mass incl. air load mms = 0,3 g
voice coil diameter = 26 mm
maximum peak linear excursion vibration xlin = +/- 0,25 mm
