SB Acoustics SW26DAC76-8

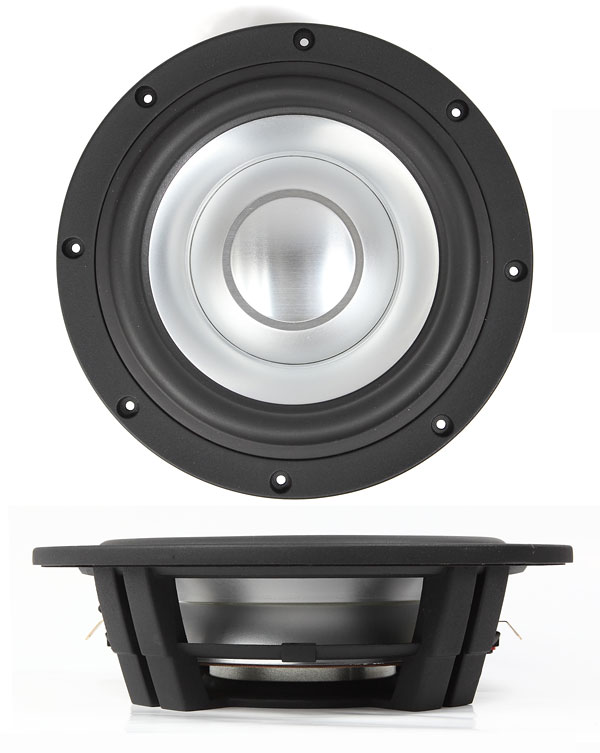

SB-Acoustics SW26DAC76-8 10" Woofer

• Dual rigid aluminum cone structure
• Cast aluminium chassis for optimum strength
• Low damping medium hardness rubber surround for improved dynamic linearity and mechanical stability
• Easily adjustable moving mass

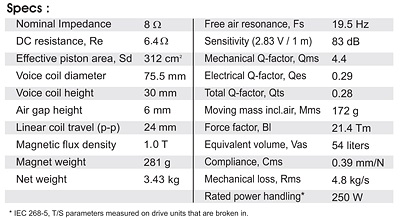

Specifications

• power handling (continuous/programme) = 250 W
• resonance frequency fs = 19,5 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 83 dB (2,83V; 1m)
• DC resistance Re = 6,4 Ohm
• force factor BL = 21,4 N/A
• effective piston radiating area Sd = 312 cm²
• effective mechanical mass incl. air load mms = 172 g
• equivalent volume of compliance Vas = 54 l
• total Q factor Qts = 0,28 (Qms=4,4, Qes=0,29)
• voice coil diameter = 75,5 mm

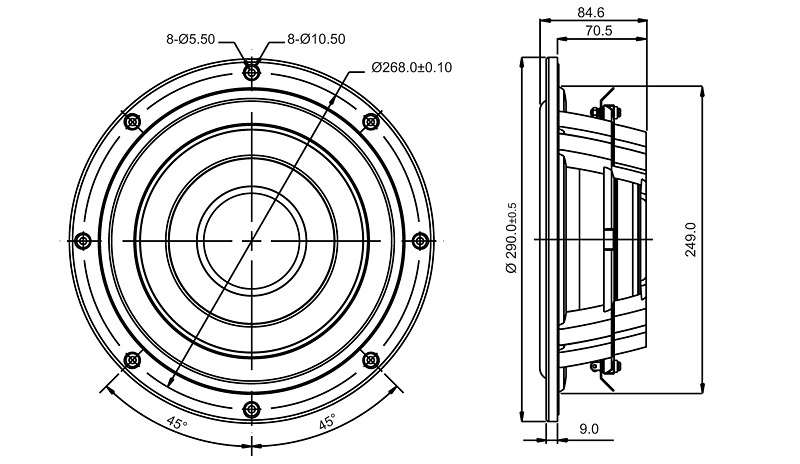

• mounting diameter d = 244 mm
• overall diameter d = 290 mm
• mounting depth (not countersunk) t = 71,5 mm
